| Specification | |||
|---|---|---|---|
| Type | Name | Statistics | |

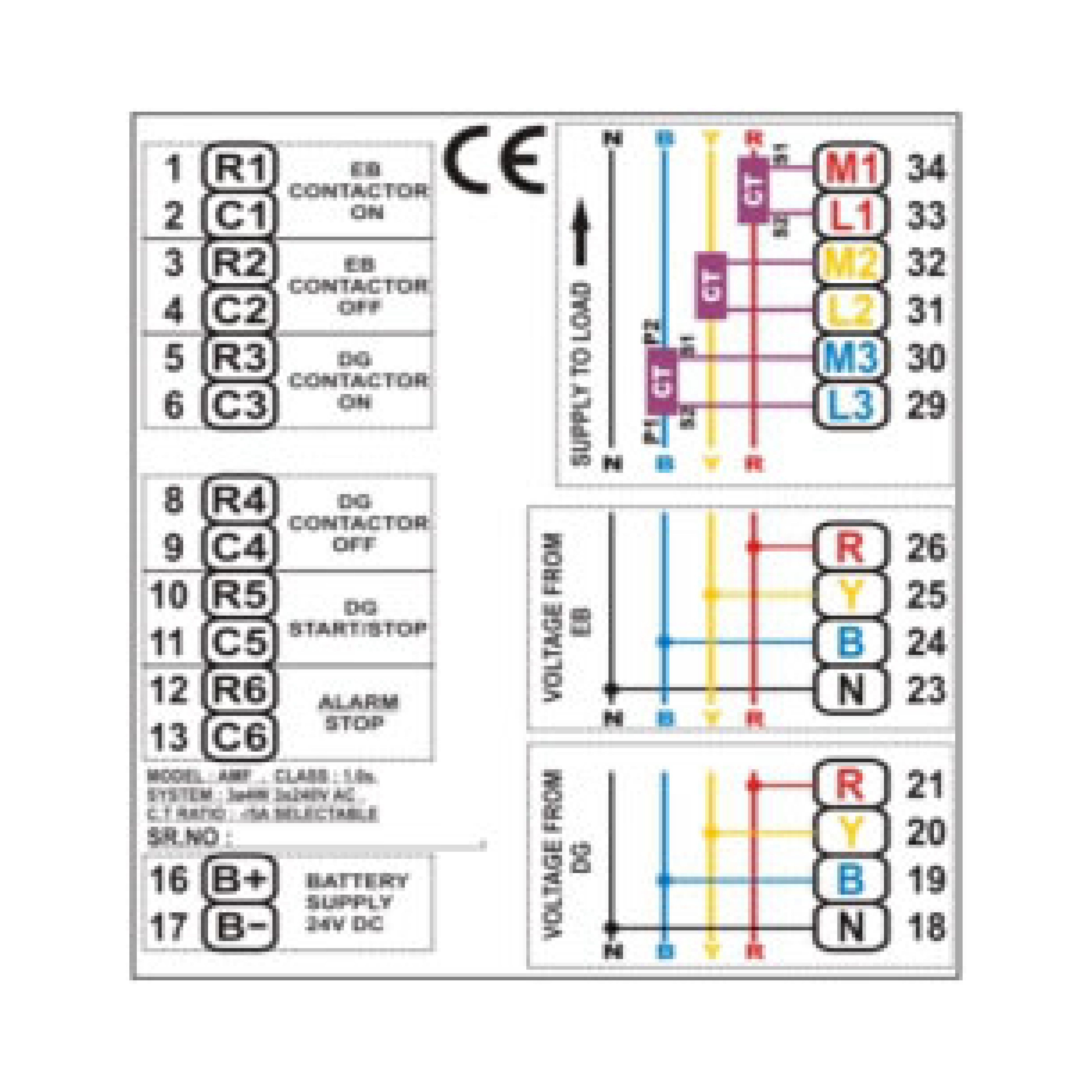

| Input | Three Phases and Neutral of a 3P4W | ||
| Voltage | Direct Voltage Input: Up to 300V L-N Burden: 0.5VA |
||
| Current | Secondary Current Input : 5A or 1A (Site Selectable) CT Ratio : Site Selectable Range of Reading : 5 – 5000A Burden : < 1.0VA Overload : 5A CT = 6A RMS Continuous 1A CT = 1.2A RMS Continuous |
||
| Power Supply | 9-36V DC | ||
| Output | Relay | Six Relays(NO) Switching Voltage : Max. 250 VAC Switching Current : 6 A (Resistive load) Expected Mechanical Life : >1X10 switching operations Expected Electrical Life : > 5X10 switching operations |
|
| Measurment | True RMSBasicParameters | Voltage (Volts L-N ) | VL-N Accuracy : 1.0% of Reading |
| Current(Amps IR, IY, IB) | Accuracy : 0.25 % of Reading | ||
| Line Frequency | 45 to 55 Hz, Accuracy : 0.3% of Reading | ||
| Dimensions | Bezel | 144 X 144 mm | |
| Panel Cutout | 138 X 138 mm | ||
| Depth of installation | 55 mm | ||

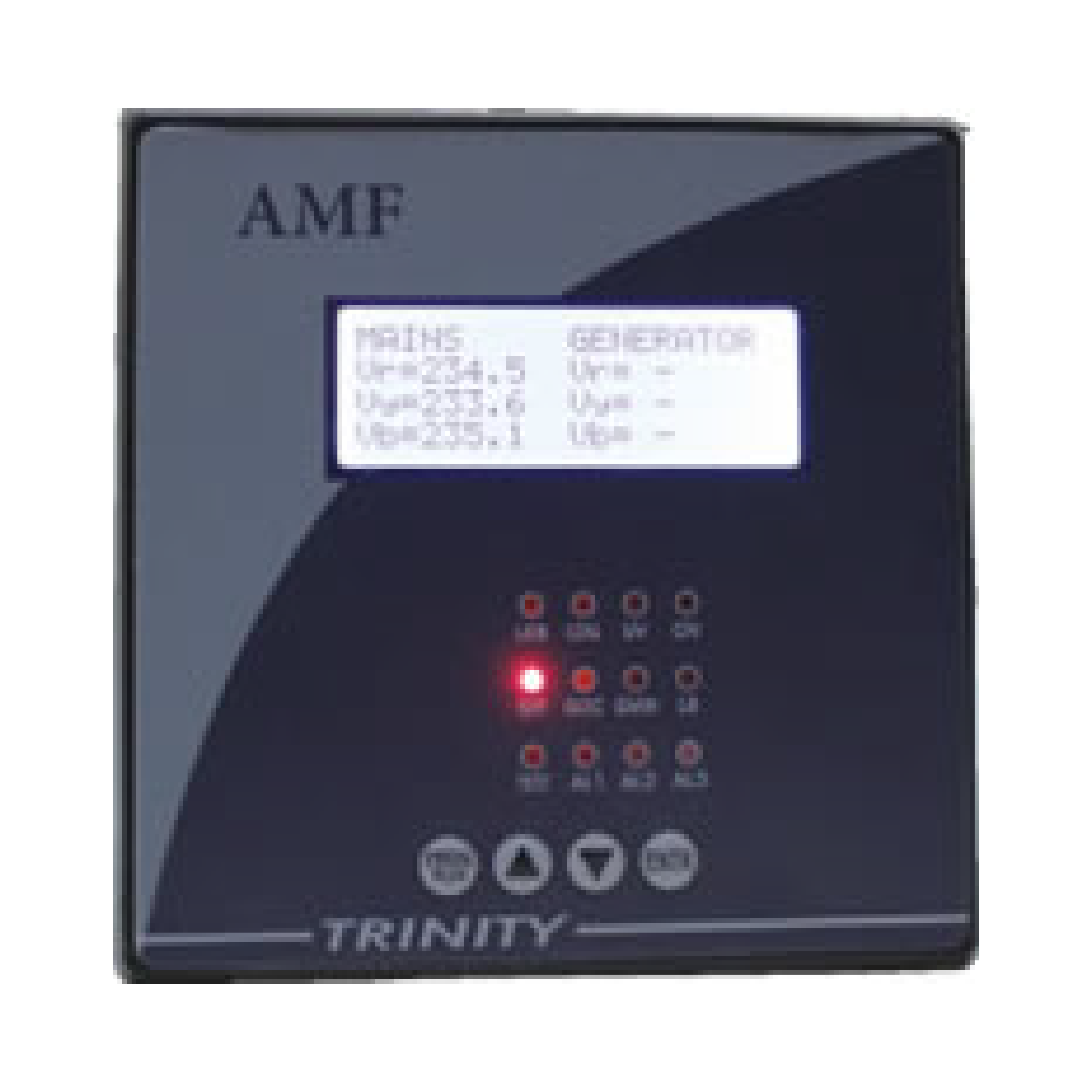

| Display | 20 X 4 Backlit LCD | ||
| Operating temp | 10°C to 50°C | ||
| Weight | 0.58 Kgs (Approx.) | ||
| Operating Current Range | 0.4% to 120% of CT primary | ||
