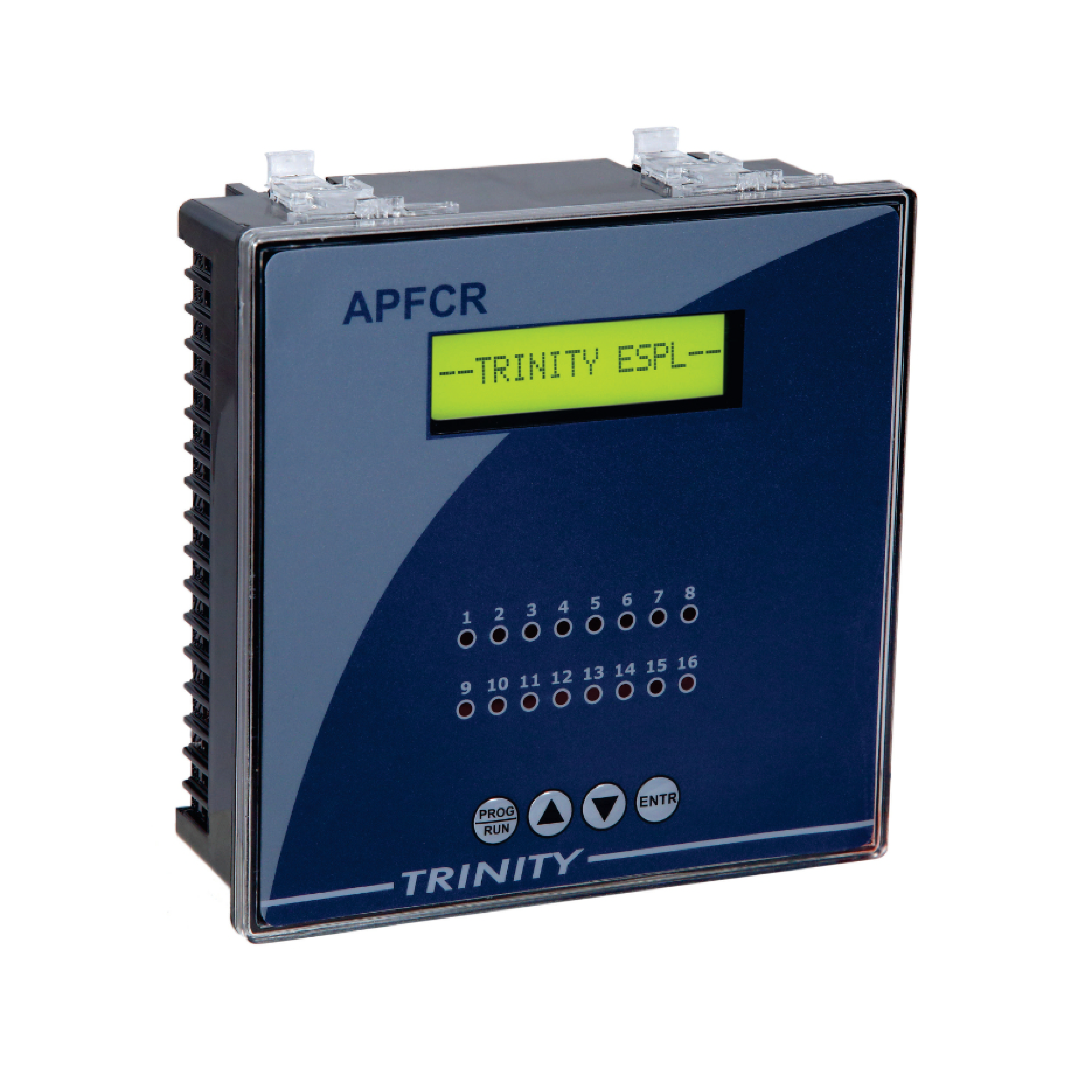

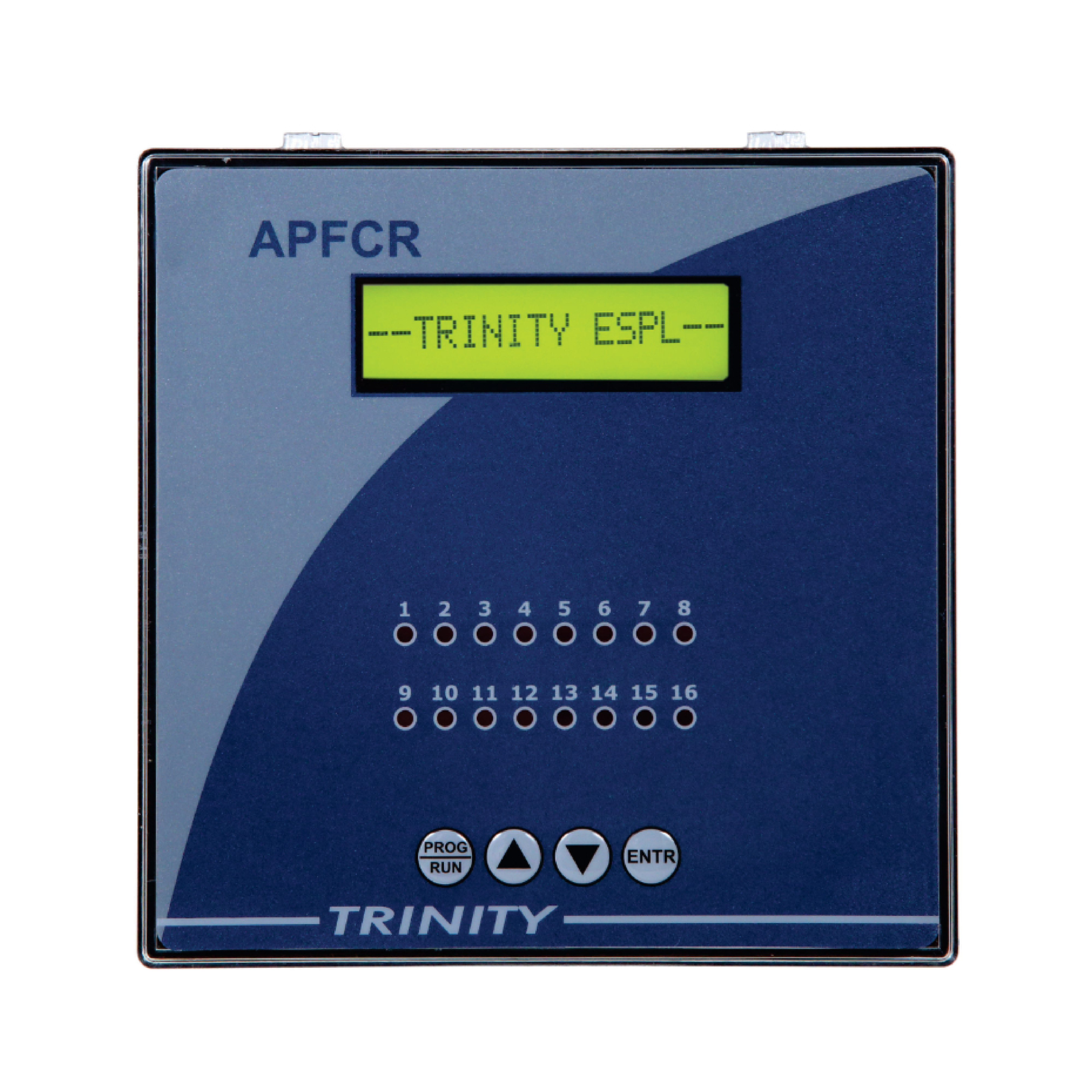

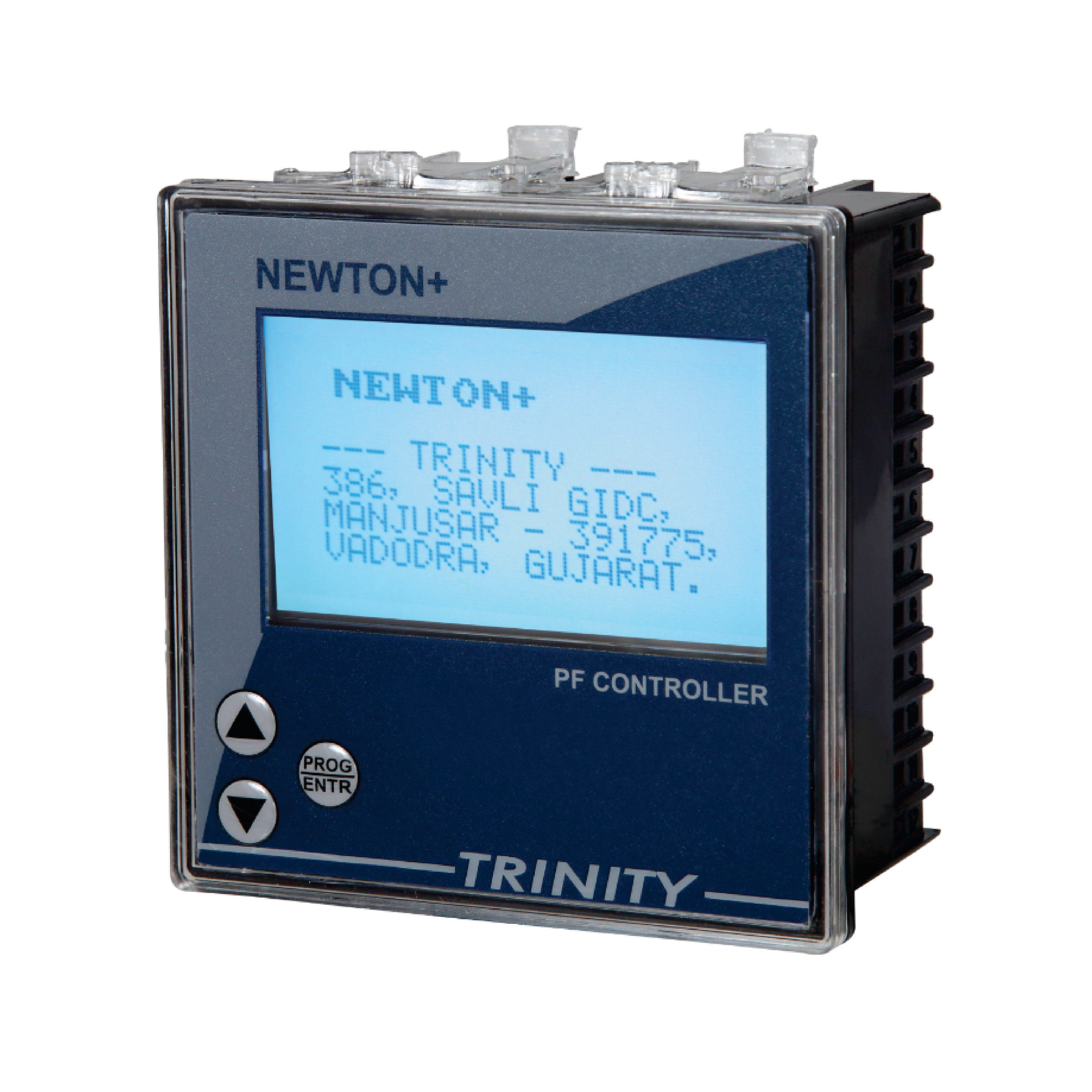

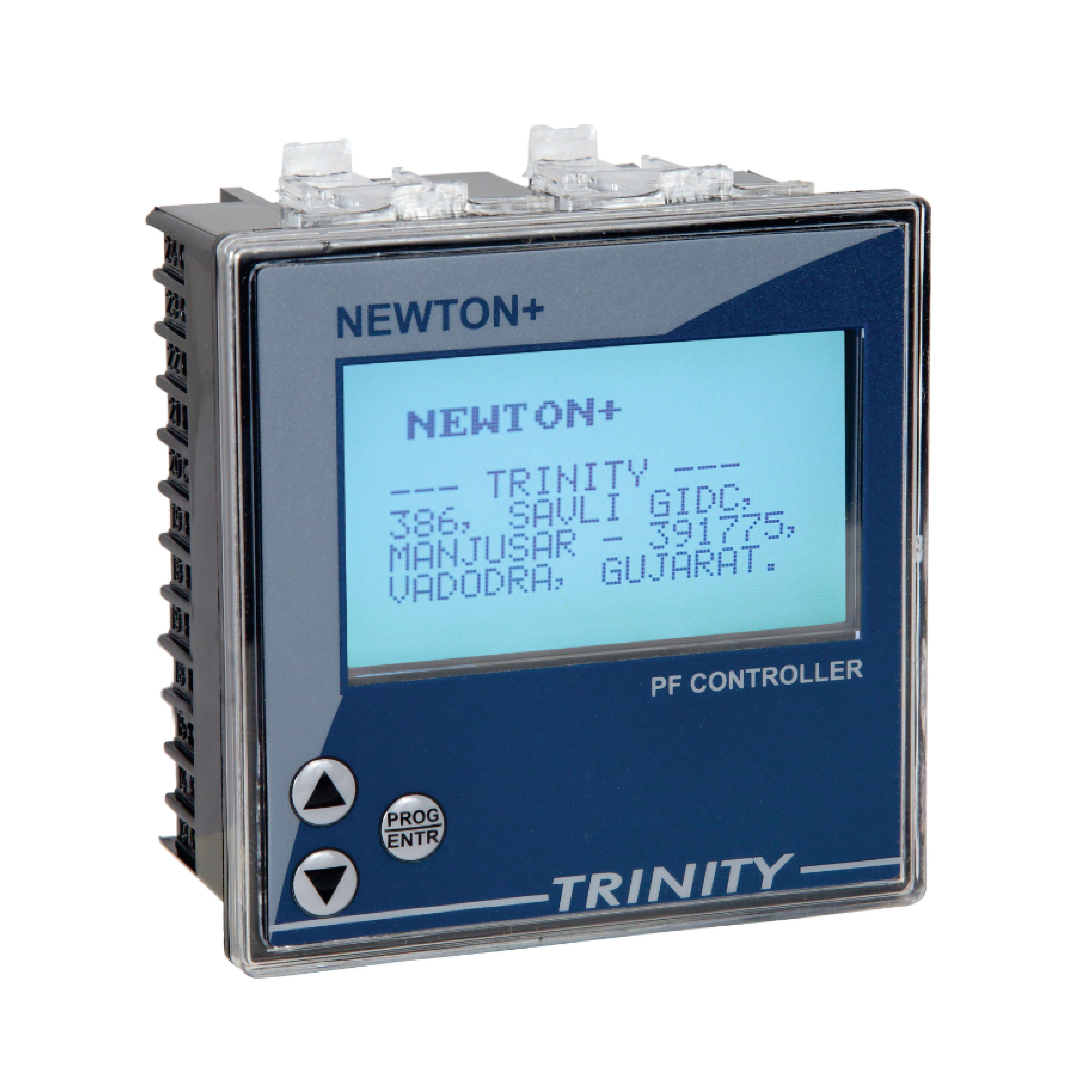

APFCR, NEWTON+

TRINITY has a versatile range of Power Factor Correction relays suitable for all applications. These controllers are available in economy version with minimum features, intelligent models with advance control algorithm and also sub-second switching models with solid state outputs.

The entire series is economical user friendly and extremely reliable. Designs of these have been field proven for nearly fifteen years with more then 10000 units in service.

Specification
Type Name Statistics
Input Supply One Phase and Neutral of 3P4W system
Voltage Direct Voltage Input: Up to 300V L-NBurden: 0.5 VA
Current Secondary Current Input: 5A or 1A (To be specified at the time of Ordering)
CT Ratio: Site Selectable (In APFCR & NEWTON+ only)
Range of Reading: 0-5000A
Burden: <1.0VA
Overload: 5A CT = 6A RMS Continuous
1A CT = 1.2A RMS Continuous
Power Supply Wide operating Voltage SMPS : 80 VAC - 480 VAC, 50-60 Hz
Output Relay Switching Voltage: Max. 250 VAC
Switching Power: Max. 1000W
Expected Mechanical Life: >10 X 106 switching operations
Expected Electrical Life: > 4 X 106 switching perations
@ (Load = 200VA, Cosp = 0.5)
Optocoupler(Fast Newton+) VCE(max)-40 VDC; Imax-30 mA
Measurement True RMS Basic Parameters Voltage(Volts L-N: VRN, VYN, VBN) Accuracy: 0.5% of Reading
Current(Amps IR,IY, IB) Accuracy: 0.25% of Reading
Capacitor Current CT Ration: Site Selectable (In APFCR & NEWTON+ only)
Accuracy: 1.0% of Reading
Power Factor Accuracy: 1.0% of Reading (IPFI>0.5)
Range of Reading: 0.05 to 1.00 Lag/ Lead
Miscellaneous Dimensions Bezel 144 X 144 mm (APFCR), 96 X 96 mm (All other three models)
Panel Cutout 138 X 138 mm (APFCR), 92 X 92 mm (All other three models)
Depth of installation 55 mm
Operating temp 10°C to 50° C
Weight 0.730 Kgs (Approx.) for APFCR, 0.376 Kgs (Approx.) for all other three models
Min. Operating Current 1% of CT primary in VAR mode, 2.5% in PF mode
author

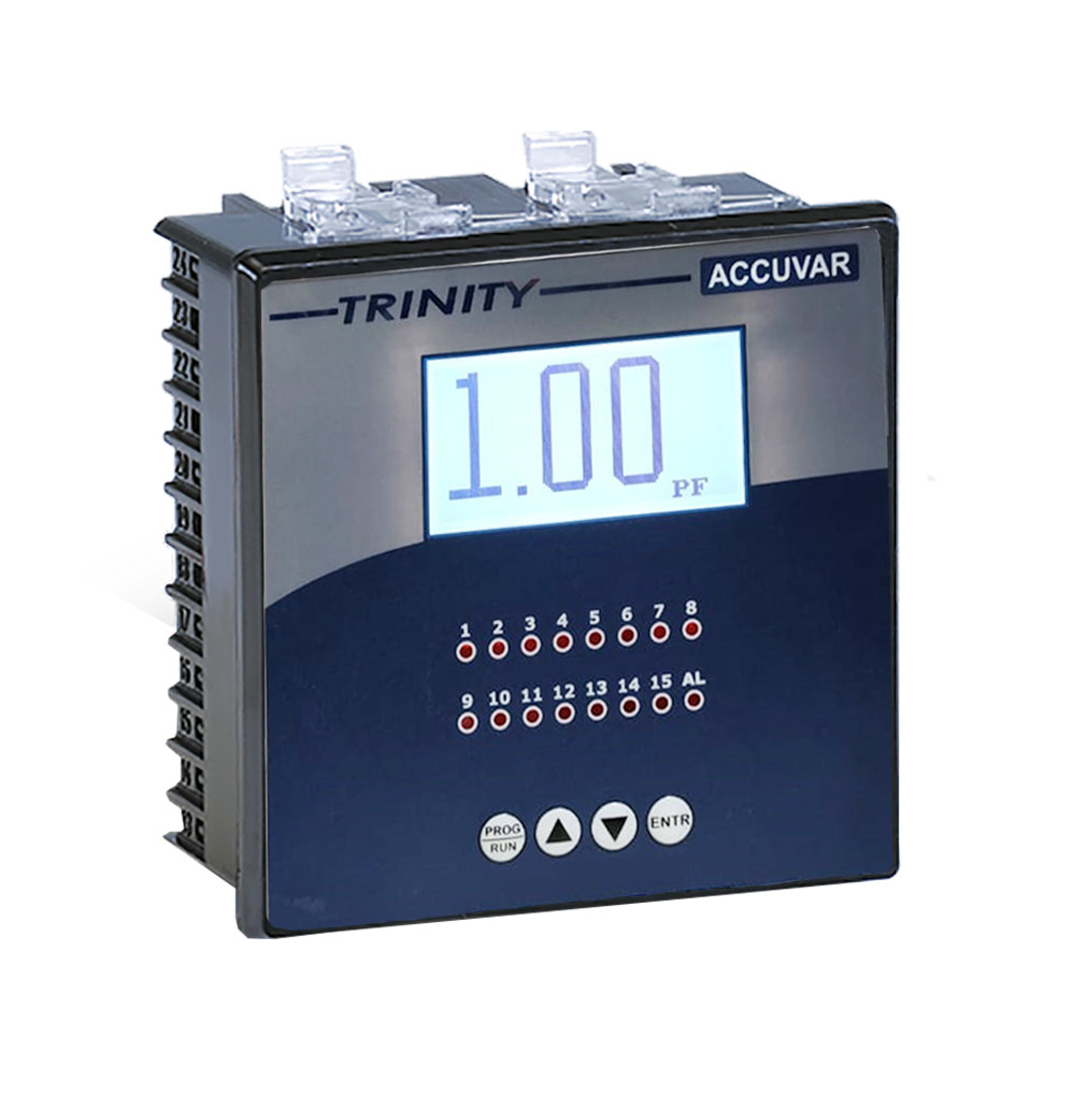

Accuvar

The ACCUVAR family of VAR controller consists of one product, with ACCUVAR as the base model. The ACCUVAR is Microcontroller based, with designs that have been field proven for more than fourteen years. The main features of the VAR controllers are:

  • Comprehensive Polyphase Measurement
  • Ease of Installation
  • Low current operation
  • Intelligent Control
Specification
Type Name Statistics
Input Supply Three Phase and Neutral of a 3P4W system
Voltage Direct Voltage Input : Up to 300 V L-N
Burden: 0.5 VA
Current Secondary Current Input: 5A or 1 A (To be specified at the time of ordering)
Range of Reading: 0 - 5000A
Burden: < 1.0 VA
Overload: 5A CT = 6A RMS Continuous
1A CT = 1.2A RMS Continuous
Power Supply Self Powered from mains Wide operating Voltage
SMPS: 80 VAC - 480 VAC, 50-60 Hz
Output Relay Switching Voltage: Max. 250 VAC
Switching Power: Max 1000W
Expected Mechanical Life: >10 x 106 switching operations
Expected Electrical Life : >4 x 106 switching operations @ (Load = 200 VA, CosØ = 0.5)
Measurement True RMSBasicParameters Voltage(Volts L-N: VRN, VYN, VBN) Accuracy: 0.5% of Reading
Current(Amps IR, IY, IB) CT Ratio: Site Selectable
Accuracy : 0.5% of Reading
Capacitor Current
Line Frequency 45 to 55 Hz, Accuracy : 0.3% of Reading
Power Active Power (P) Accuracy : 1.5% of Reading (For IPFI>0.9)
Reactive Power (Q) Accuracy : 2.0% of Reading (Between 0.5 Lag to 0.8 Lead)
Apparent Power (S) Accuracy : 1.0% of Reading
Power Factor Accuracy : 1.0% of Reading (IPFI>0.5)Range of Reading : 0.05 to 1.00 Lag/ Lead
Energy Total Active Energy (KWh) Range of Reading : 0 to 99999999.9 KWh
Accuracy : 0s as per IS 13779
Total Apparent Energy (KVAh) Range of Reading : 0 to 99999999.9 KWh
Accuracy : 1.0% of Reading
Misc. Cap. Bank KVAR
Run time
Miscellaneous Dimensions Bezel 144 X 144 mm
Panel Cutout 138 X 138 mm
Depth ofinstallation 55 mm
Depth ofinstallation 76 mm with Bezel
Operating temp 10° C to 50° C
Weight 0.82 Kgs (Approx.)
Min. Operating Current 1% of CT primary
author
author
author

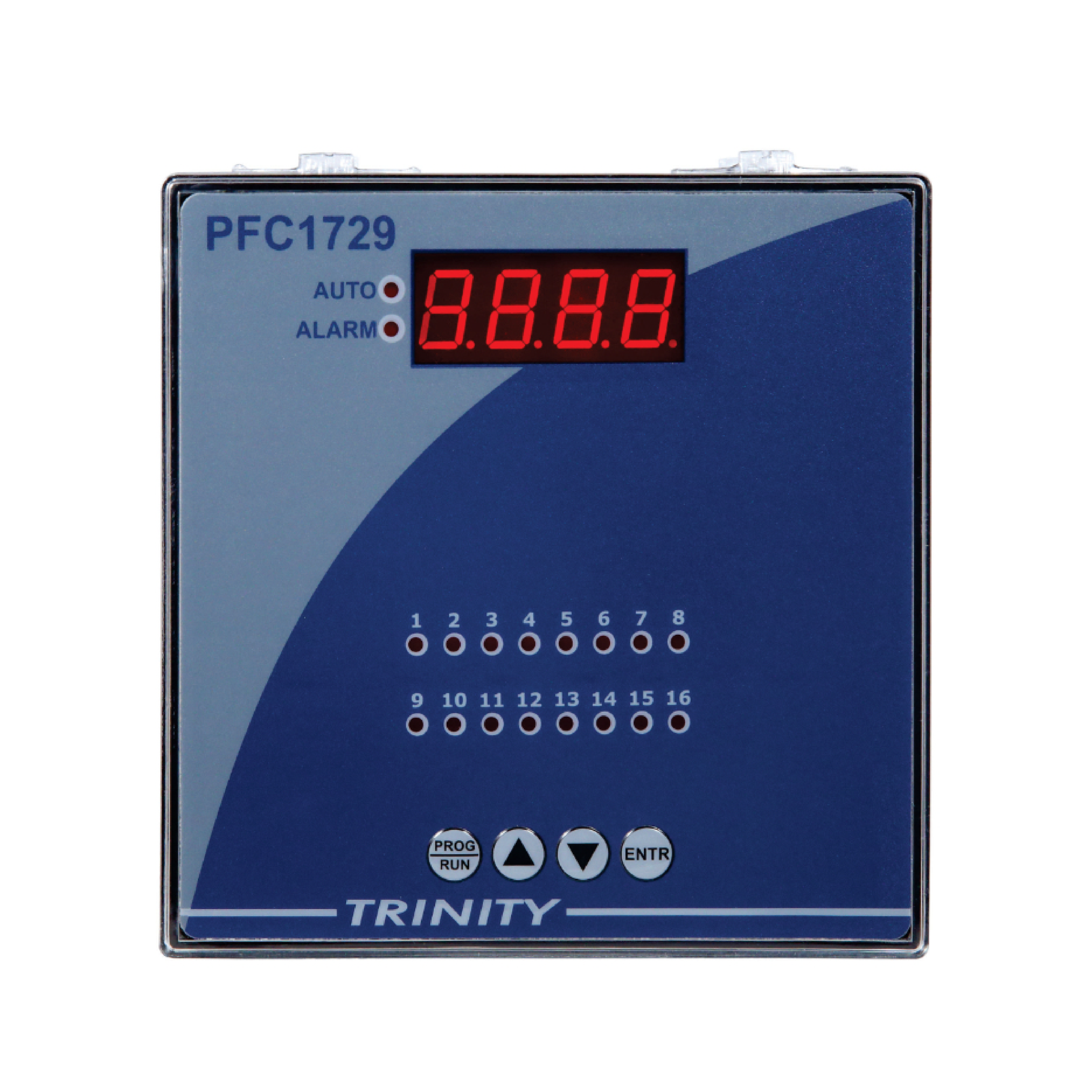

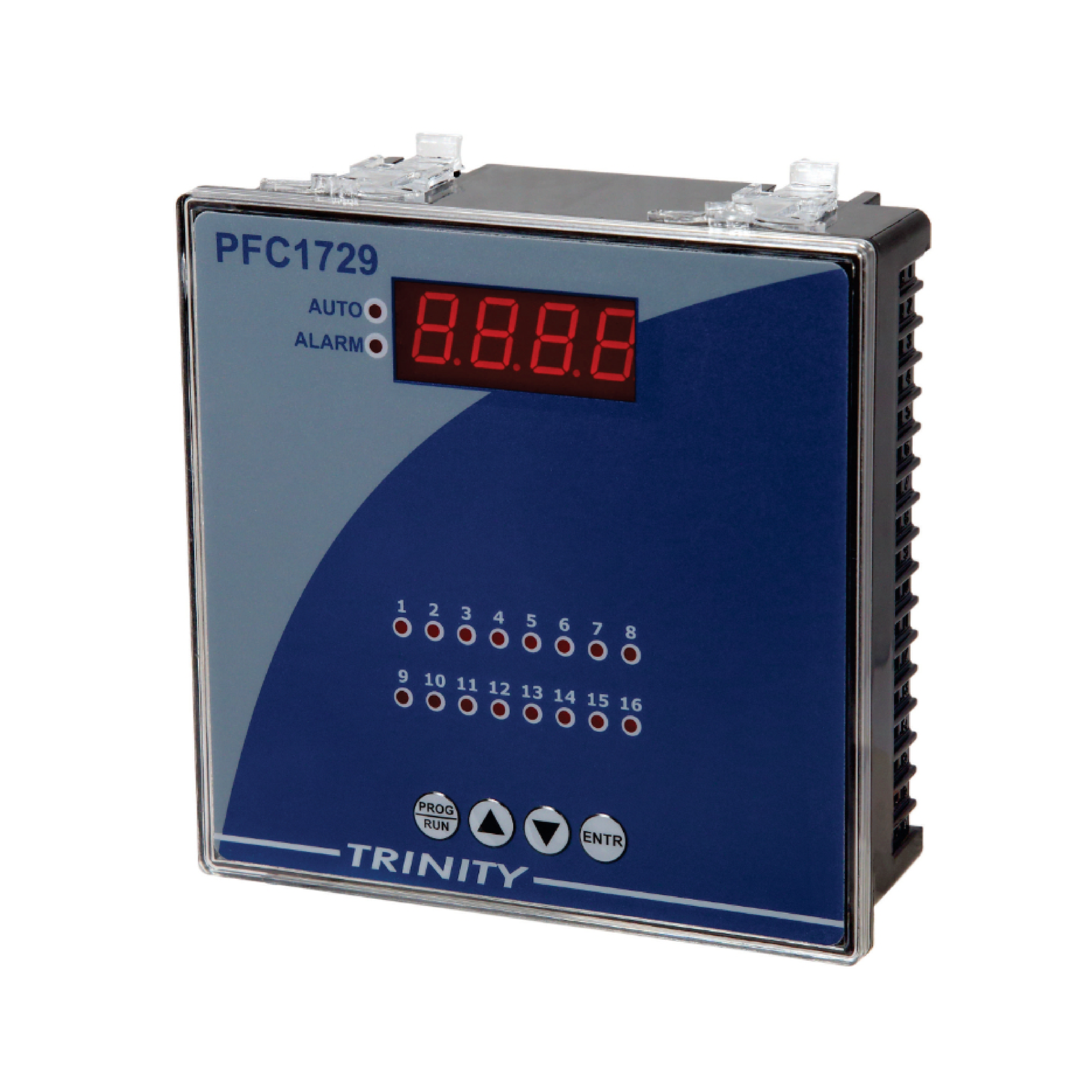

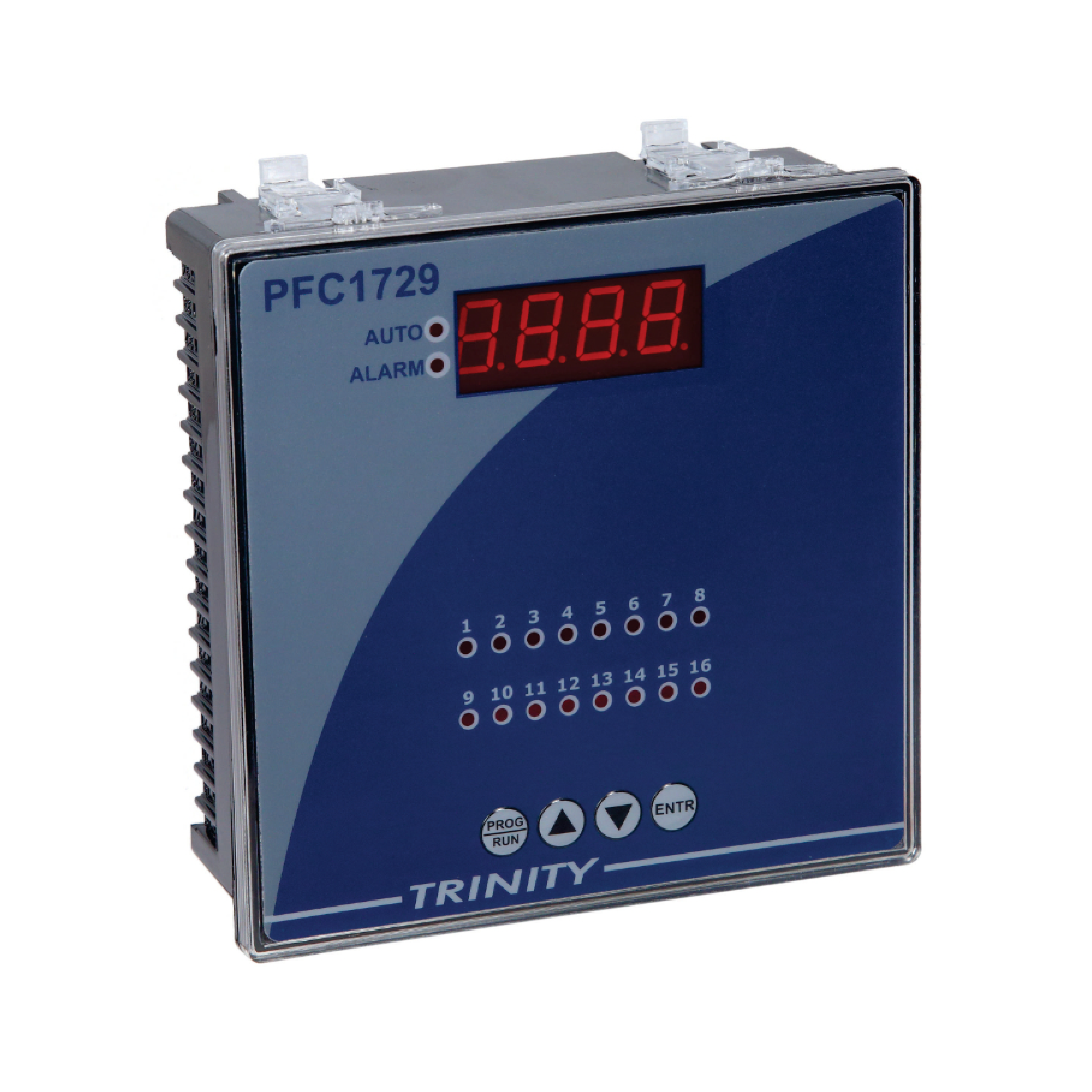

PFC1729

  • All readings are true RMS measurements
  • Site selectable 1A or 5A CT secondary
  • Automatic power factor control through system PF.
  • Programmable target PF setting (from 0.800 to 1.000 LAG or LEAD)
  • Programmable Time delay for step switching (Normal: 40-300, Fast: 1-10 Sec)
  • Stage wise LED indication
  • Auto/Manual mode selection through programming mode
  • Normal/Fast switching control action is site programmable
  • Alarm and tripping indication for over/under compensation and over/under voltage respectively
  • Installation selection for phase to phase(L-L) or phase to neutral(L-N) input is site selectable
  • Control action with/without capacitor CT is site selectable
  • Switch ON/OFF banks manually in manual mode only
Specification
Type Name Statistics
Input Power Supply Auxiliary Supply : 80 - 500 VAC, 50-60 Hz.
Voltage Direct Voltage Input : 50-300V L-N & 50-500V L-L
Burden : 0.5VA
Current Secondary Current Input : 5A or 1A (Site Selectable)
CT Ratio: Site Selectable
Range of Reading : 5 - 9995A
Burden : < 1.0VA
Overload: 5A CT = 6A RMS Continuous 1A CT = 1.2A RMS Continuous
Output Relay Switching Voltage : Max. 230 VAC
Switching Power: Max. 1000W
Expected Mechanical life : >10 x 10^6 switching operations
Expected Electrical life:>4 x 10^6 switching operations@(Load = 200VA, Cosφ=0.5)
MEASUREMENT True RMSBasicParameters Capacitor Current CT Primary : Site Selectable
Range of reading : 5 – 9995A
Accuracy : 1.0% of Reading
Power Factor Accuracy : 1.0% of Reading (IPFI ≥ 0.5)
MISC. Dimensions Bezel 144 X 144 mm
Panel Cutout 138 X 138 mm
Depth of installation 55 mm
Operating temp 10°C to 50°C
Weight 0.560 Kg. (Approx.)
Min. Operating Current 5% of CT Primary in FIFO/SFIFO mode
author

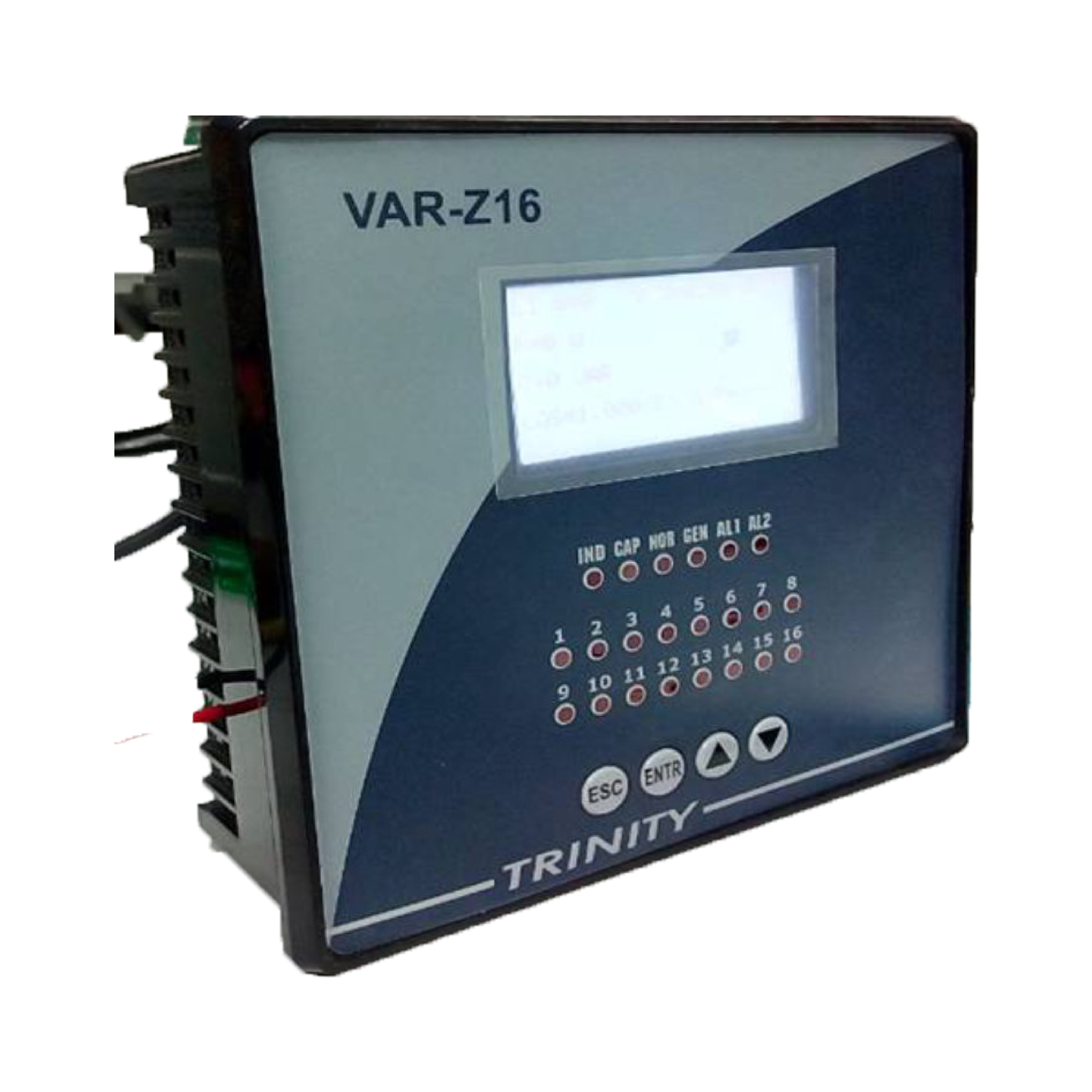

VAR-Z16

  • Accuracy Class 1.0 (as per IS14697)
  • Displays more than 20 Parameters
  • Sixteen Relay contacts for Power Factor Controlling & Two relay for alarm
  • RS485 MODBUS-RTU Connectivity
  • Large 128 X 64 Backlit LC Display
  • CT Ratios field programmable
  • External Bank may be either Single Phase or Mono Phase or Three Phase
  • External Bank sensing without CT as well as provision to enter bank size manually
  • Odd Harmonic Analysis up to 15th for all voltages and currents, including THD.
Specification
Type Name Statistics
Input Supply Three Phases and Neutral of a 3P4W system
Voltage Direct Voltage Input : Up to 500V L-L, Up to 300V L-N
Burden : 0.5VA
Current Secondary Current Input: 5A or 1A (Site Selectable)
CT Ratio : Site Selectable
Range of Reading : 5 – 5000A
Burden : < 1.0VA
Overload : 5A CT = 6A RMS Continuous
1A CT = 1.2A RMS Continuous
PowerSupply Auxiliary Supply: 90 - 470 VAC, 50-60 Hz drawn from 3 phase connection done for measurement.
Output Relay 16 Relays contact with Common for PF Controlling.
2 Relays contact with Common for ALARM Indication.
Switching Voltage : Max. 230 VAC
Switching Power : Max. 1000W
Expected Mechanical Life : >10X106 switching operations
Expected Electrical Life : > 4X106 switching operations @ (Load = 200VA. Cosj = 0.5)
MEASUREMENT True RMSBasicParameters Voltage(Volts L-N & L-L) VL-N Accuracy : 0.5% of Reading
VL-L Accuracy : 1.0% of Reading
Current(Amps IR, IY, IB) Accuracy : 0.25% of Reading
Line Frequency 45 to 55 Hz, Accuracy : 0.3% of Reading
Power Active Power (P) Accuracy : 1% of Reading(For IPFI>0.5)
Reactive Power (Q) Accuracy : 1.5% of Reading(Between 0.5 Lag to 0.8 Lead)
Power Factor For Individual phases and System.
Accuracy : 1.0% of Reading (IPFI ≥0.5)
Range of Reading : 0.05 to 1.00 Lag/Lead
Energy Phase wise Active Energy (KWh) Range of Reading : 0 to 999999999.9 KWh
Accuracy : Class 0.5 as per IS14697
Phase wise Reactive Energy (KVARh – LAG & LEAD) Range of Reading : 0 to 999999999.9 KVARh
Accuracy : Class 1.0
PowerQuality 3rd to 15th Harmonics(Odd) for all Voltages with THD
3rd to 15th Harmonics(Odd) for all Currents with THD
MISC. Dimensions Bezel 144 X 144 mm
Panel Cutout 138 X 138 mm
Depth of installation 55 mm
Display 128 X 64 graphical Backlit LCD
Operating temp 10°C to 50°C
Weight 0.60 Kgs (Approx.)
Operating Current Range 0.4% to 120% of CT primary
RS485 Modbus-RTU protocol
