Chintan Corporation - Basic Energy Meters

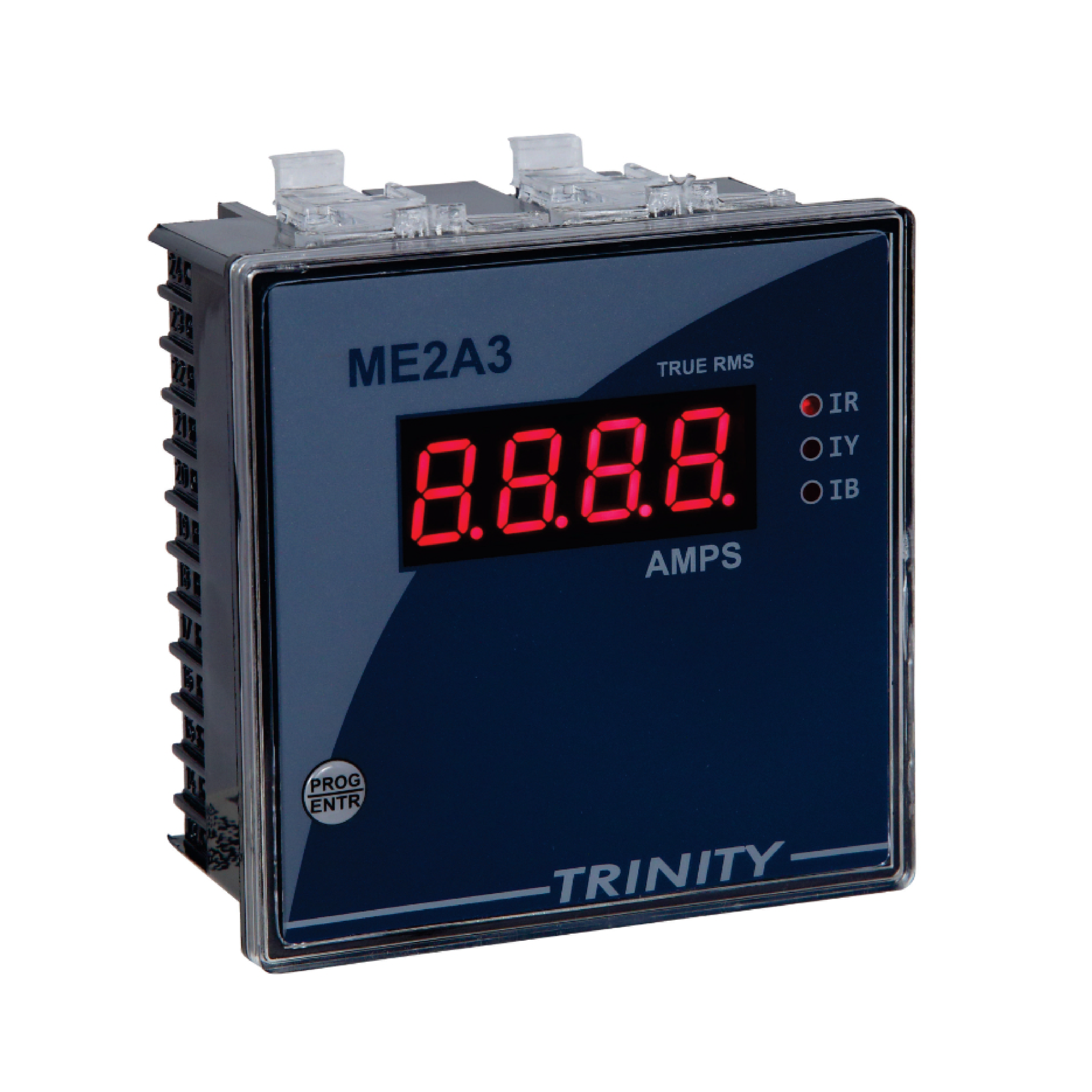

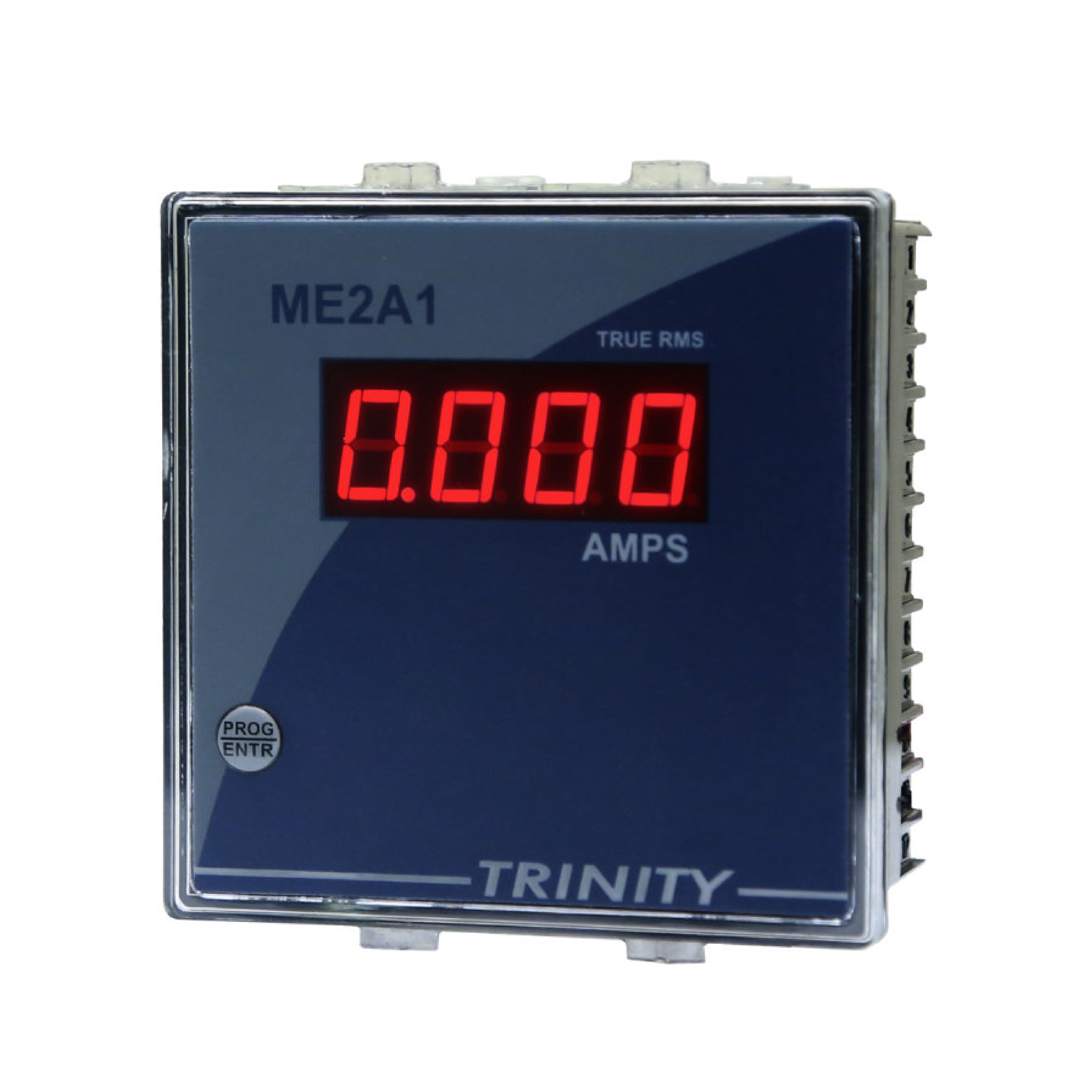

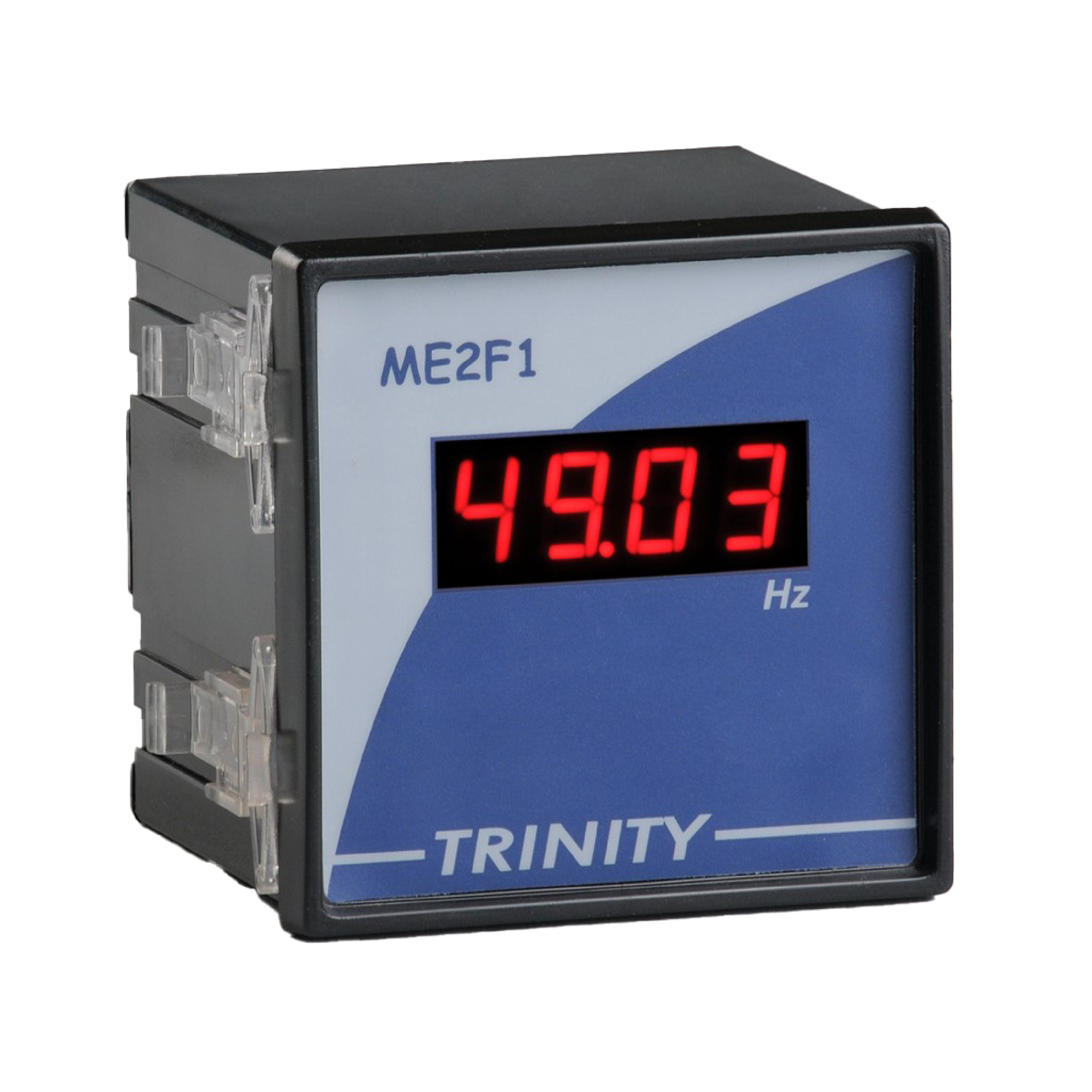

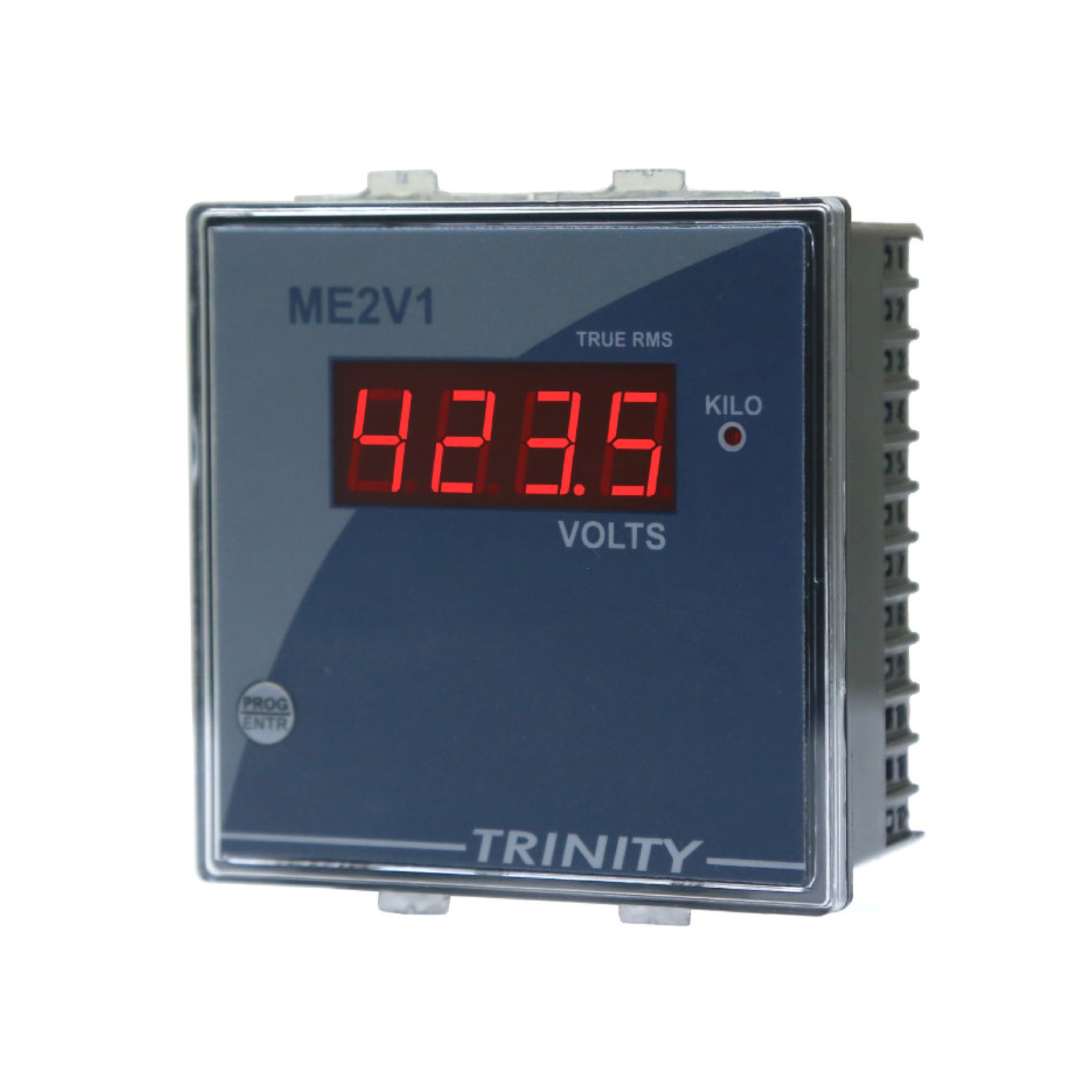

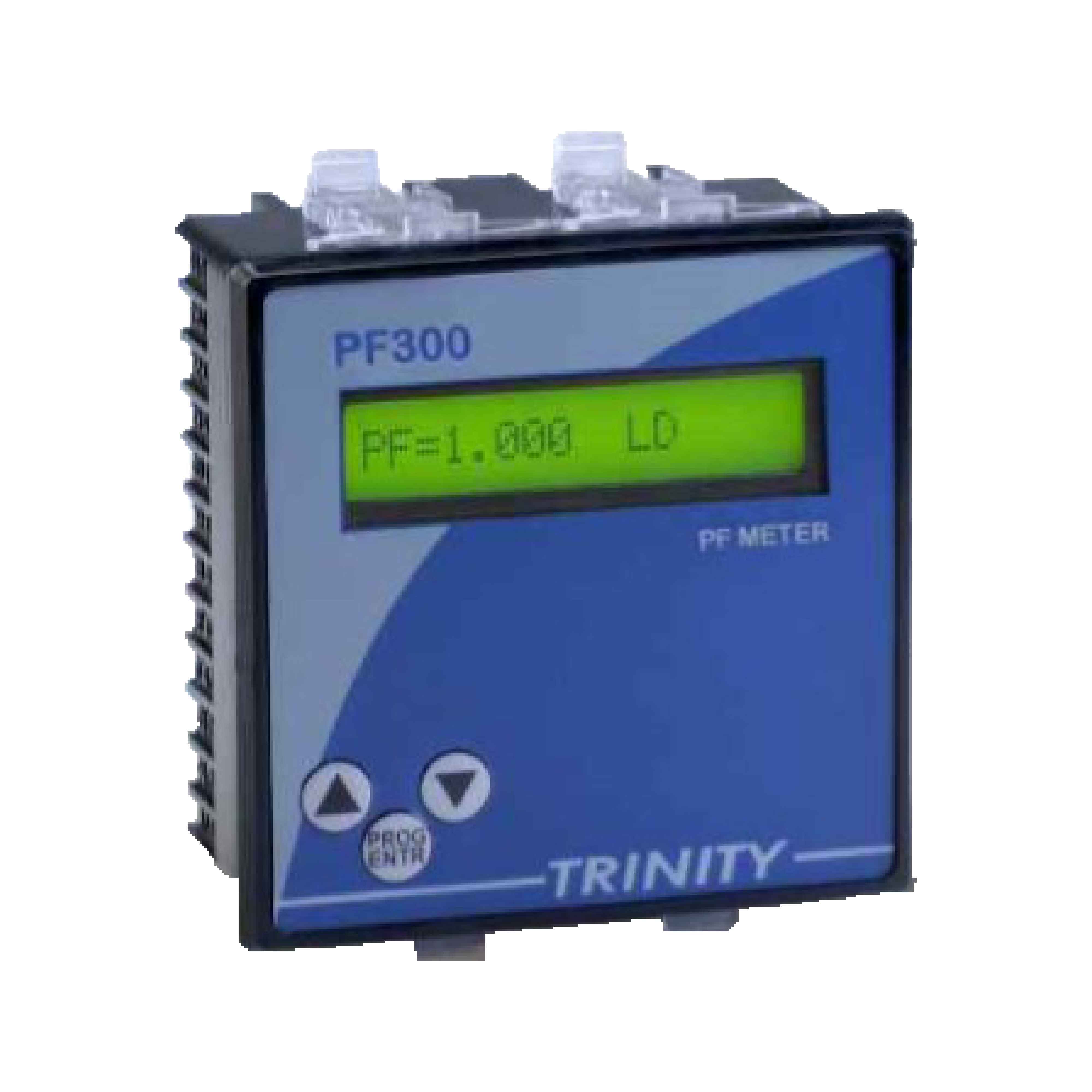

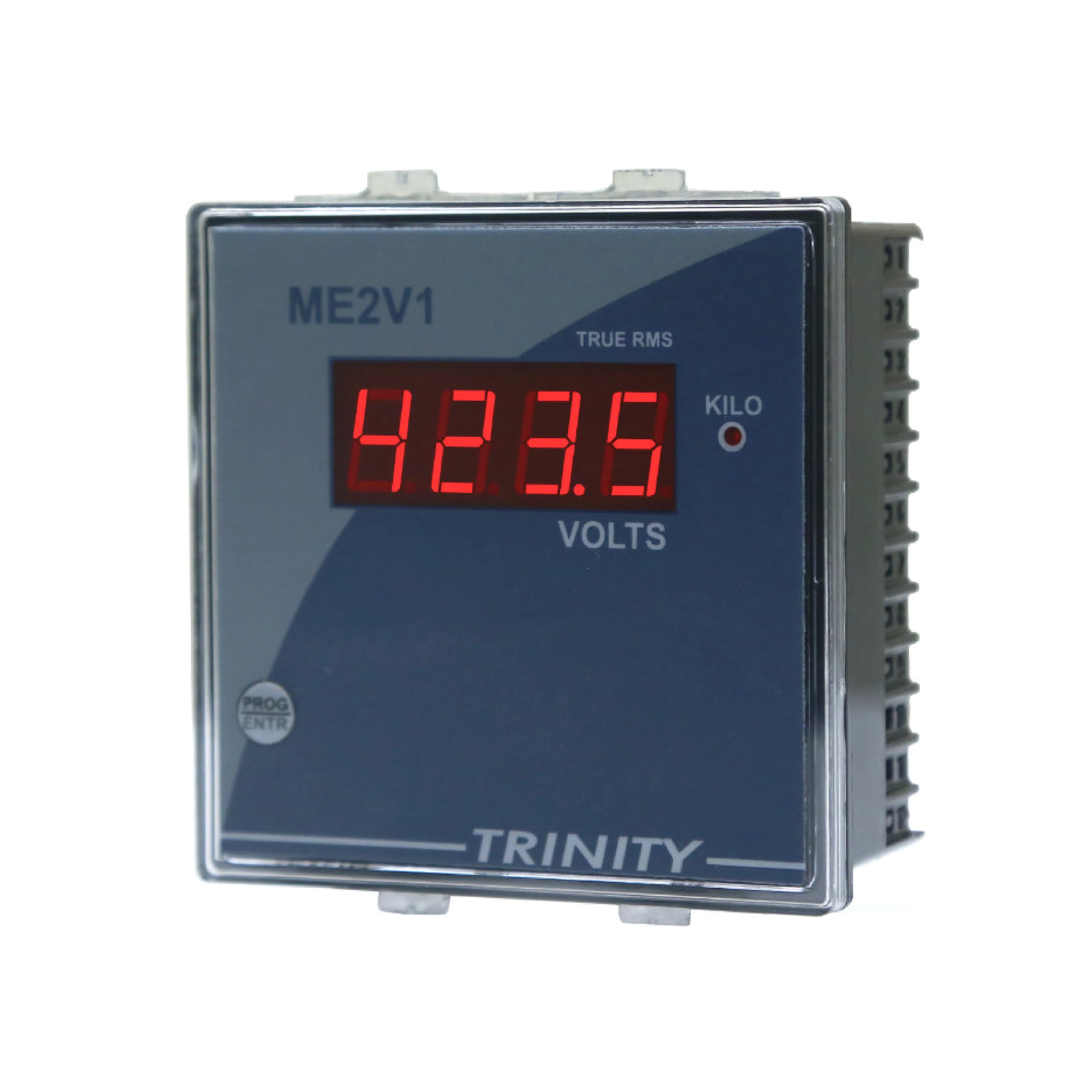

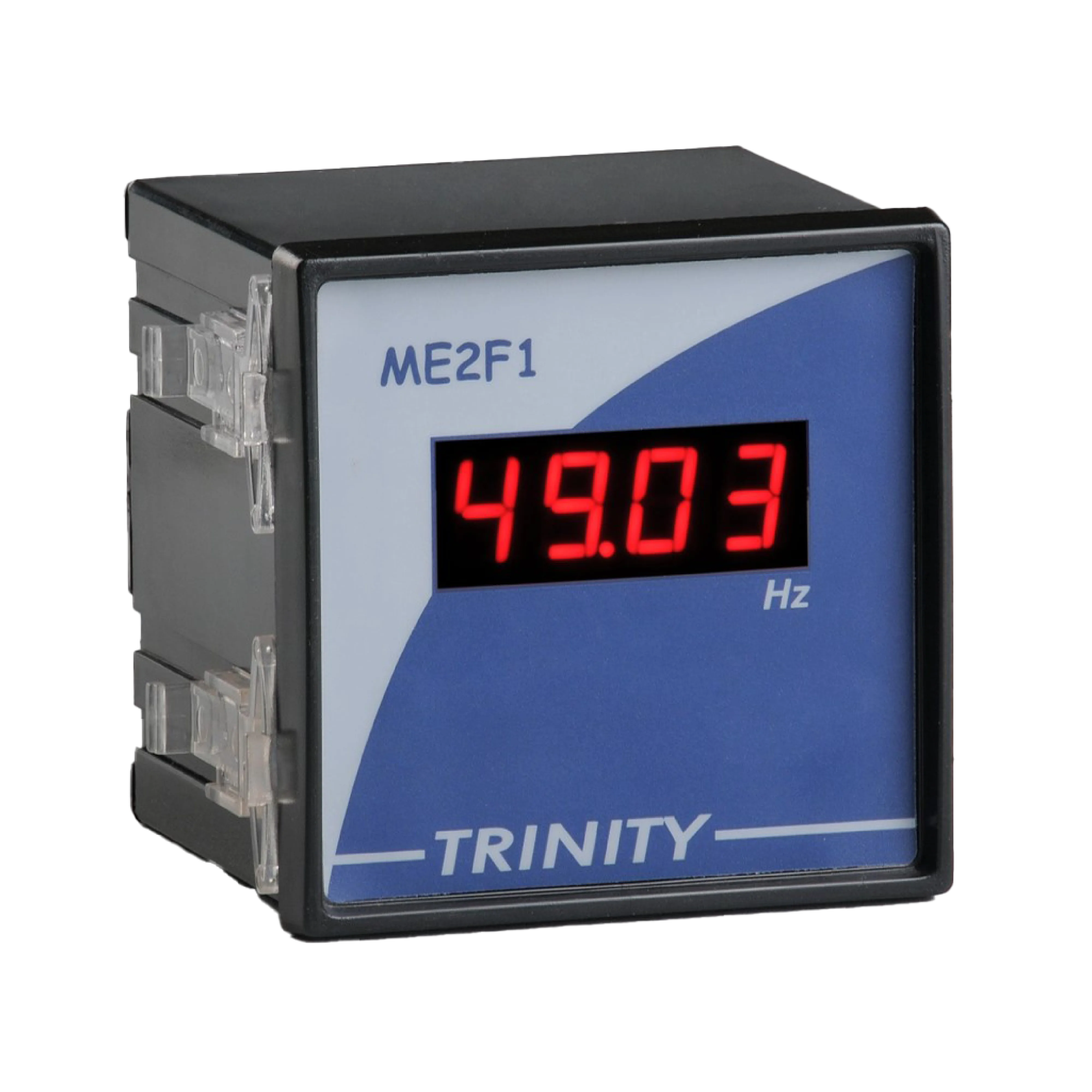

ME2A1, ME2V1, ME2A3, ME2V3, ME2F1, PF300

We offer phase ampere meter and volt meter with and without built-in selector switches to meet multiple requirements of our clients. We also provide stand-alone meters like KW, PF, Frequency, Hz.

VAF meter which combines voltage, current and frequency together in one product is the most scalable of basic meters.

The design of these meters is based on proven microcontroller technology; with front end ASICs resulting in compact and accurate energy metering. The accuracy of the meters is maintained even under severely distorted waveform conditions which occur due to harmonics in the system.

These meters are available in bezel size 96 x 96 mm with CT/ PT programmable and wide auxiliary supply.

Catalogue Enquire Now

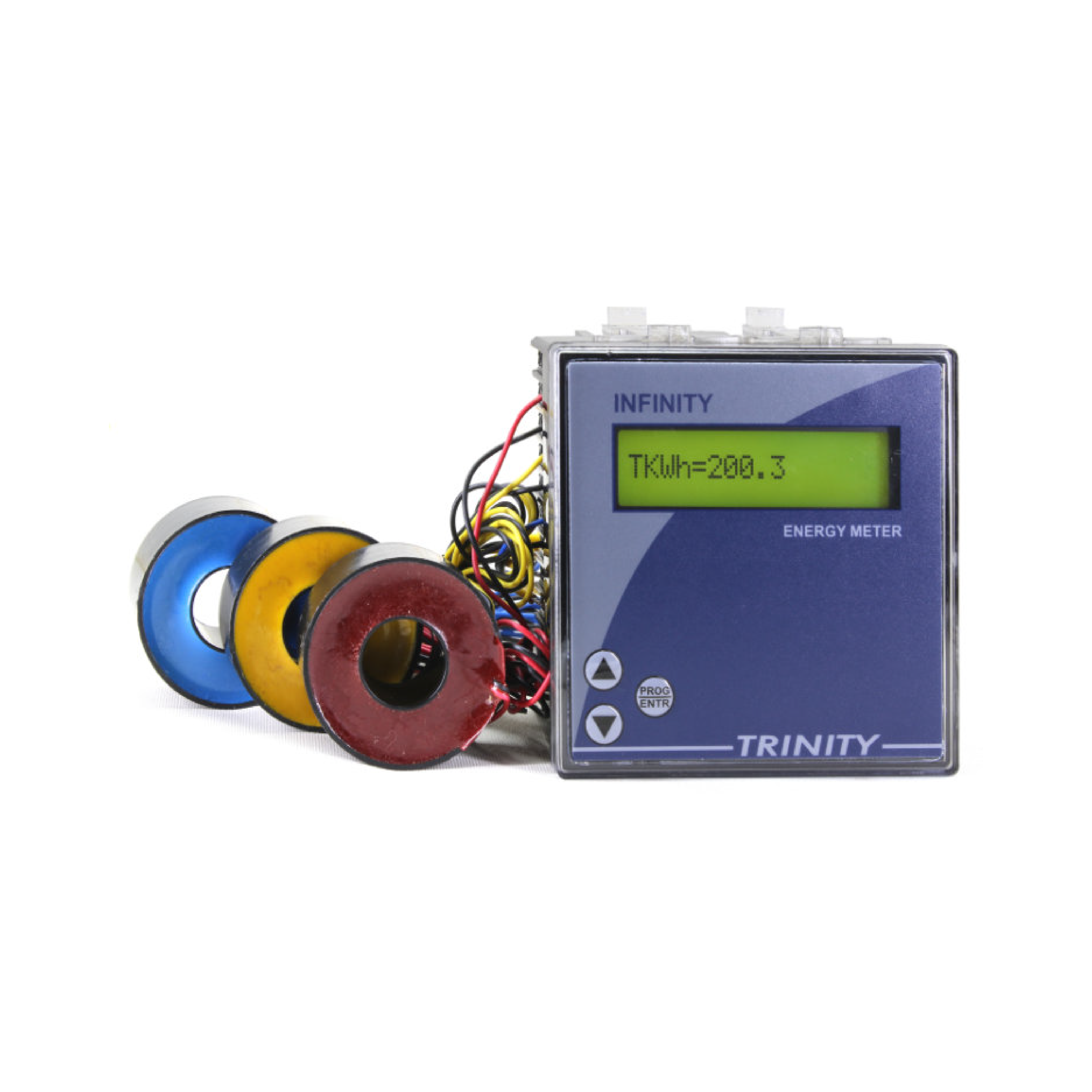

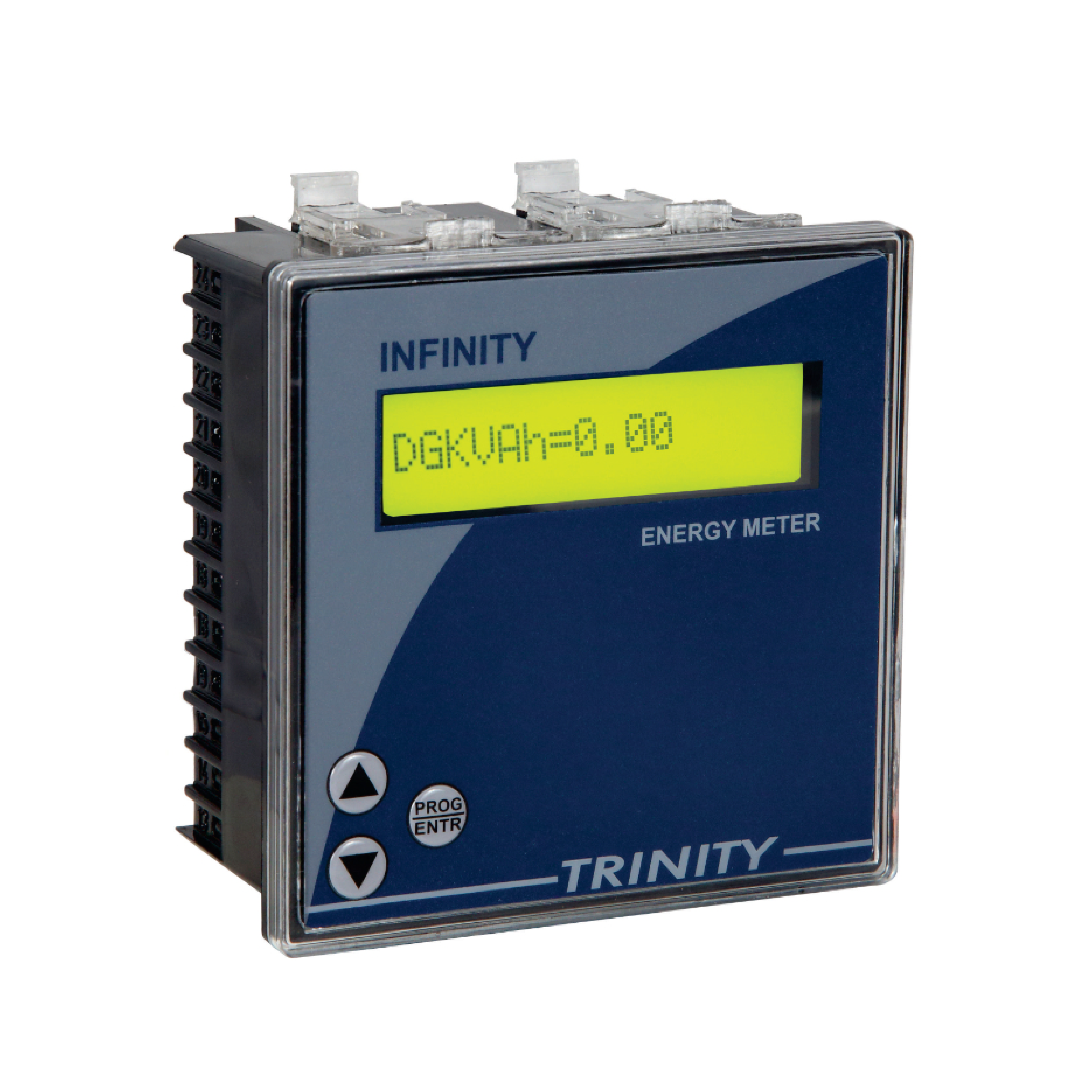

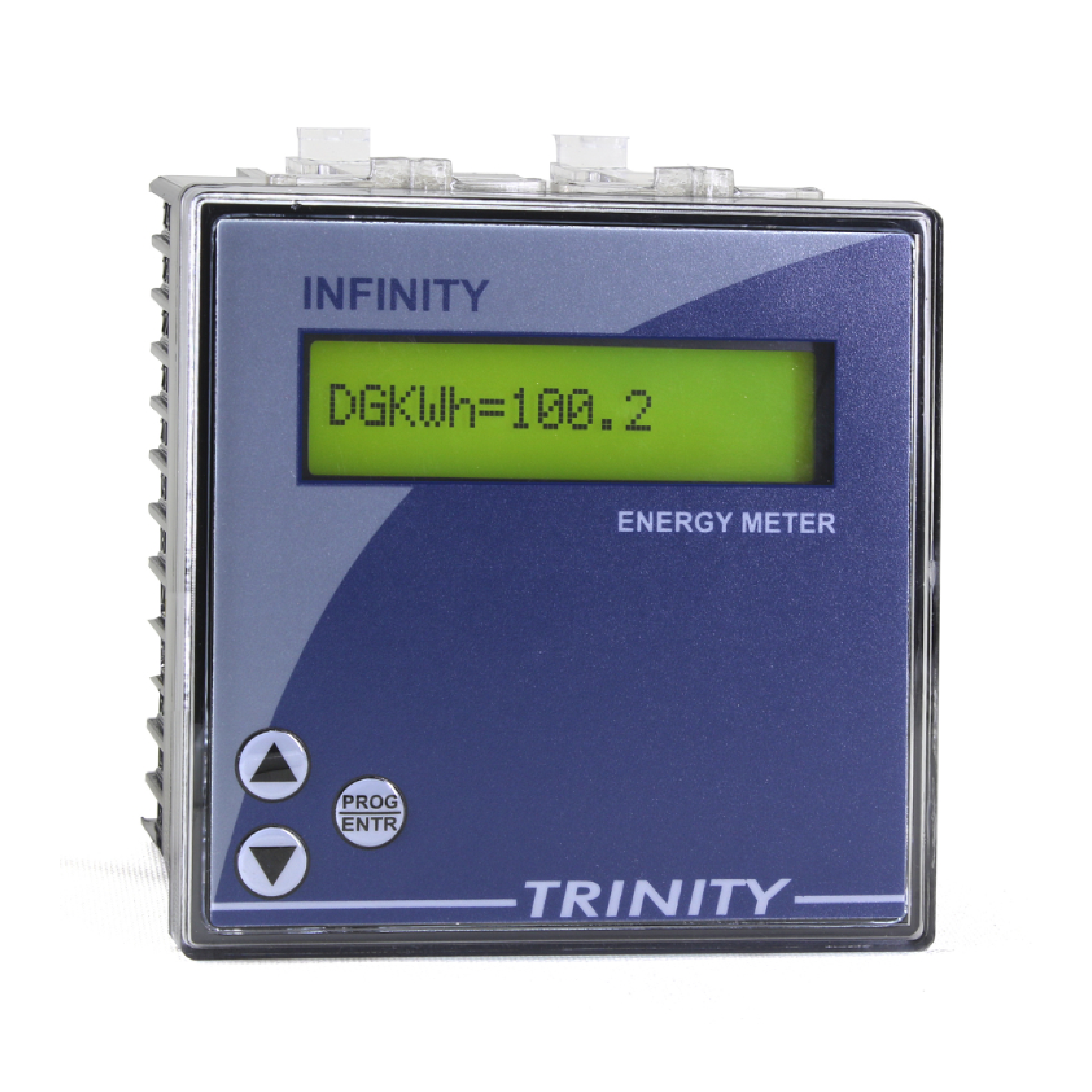

Infinity

Class 1.0s accuracy as per IS13779
Class 0.5 accuracy also available
Microcontroller based
Display: 16 x 1 LCM (Entity), 16x2 LCM with dual source(Infinity), 16x1 LCM without dual source(Infinity)

Catalogue Enquire Now

Specification
Type		Name	Statistics
Input		Supply	Three Phases and Neutral of a 3P4W system / Three Phases of 3P3W system.
		Voltage	Direct Voltage Input: Up to 300V L-N or 500V L-L Burden: 0.5VA
		Current	Secondary Current Input: 5A or 1A (To be specified at the time of Ordering) CT Primary: Site Selectable Range of Reading: 0 - 5000A Burden : <1.0VA Overload (Through CT): 5A CT = 6A RMS Continuous 1ACT = 1.2A RMS Continuous (Whole Current): 120% of Imax continuous.
		Auxiliary Power Supply	Operating Voltage for SMPS : 80VAC-480VAC, 50-60Hz.
Comm.		RS485 Port	Supporting MODBUS-RTU protocol. (Infinity).
Measurement	Energy	Total ActiveEnergy (KWh)	Range of Reading: 0 to 9999999.9 KWh Accuracy: 1.0S as per IS13779.
Miscellaneous	Dimensions	Bezel	96 X 96 mm
		Panel Cutout	92 X 92 mm
		Depth of installation	55 mm
		Operating temp	0°C to 60°C
		Weight	0.30 Kg. (Infinity), 0.264 Kg. (Entity)
		Min.Operating Current	0.4% of CT primary.
		Dual Source Sensing	By presence or absence of 230VAC across two terminals can be looped.

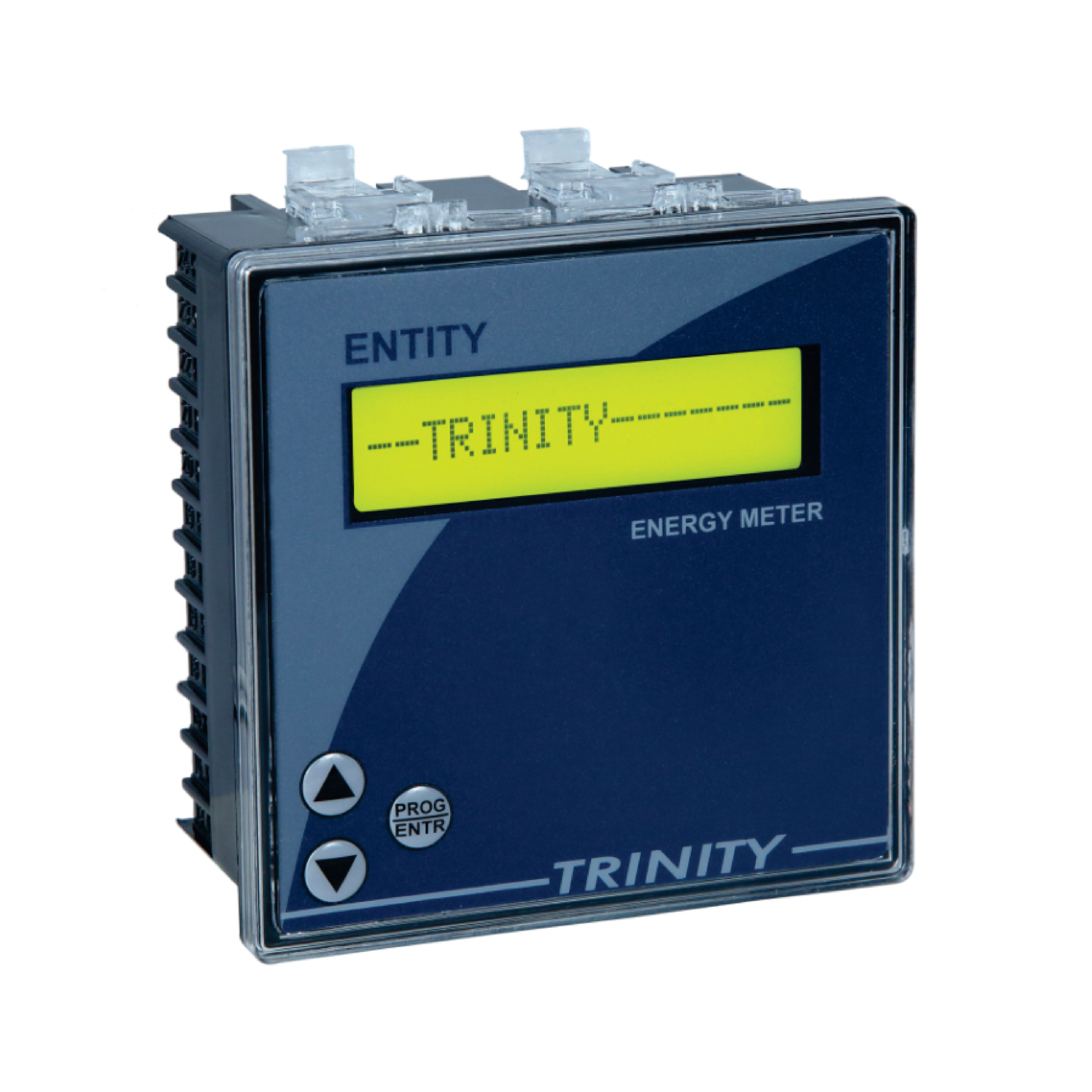

Entity

Class 1.0s accuracy as per IS13779
Class 0.5 accuracy also available
Microcontroller based
Display: 16 x 1 LCM (Entity), 16x2 LCM with dual source(Infinity), 16x1 LCM without dual source(Infinity)

Catalogue Enquire Now

Specification
Type		Name	Statistics
Input		Supply	Three Phases and Neutral of a 3P4W system / Three Phases of 3P3W system.
		Voltage	Direct Voltage Input: Up to 300V L-N or 500V L-L Burden: 0.5VA
		Current	Secondary Current Input: 5A or 1A (To be specified at the time of Ordering) CT Primary: Site Selectable Range of Reading: 0 - 5000A Burden : <1.0VA Overload (Through CT): 5A CT = 6A RMS Continuous 1ACT = 1.2A RMS Continuous (Whole Current): 120% of Imax continuous.
		Auxiliary Power Supply	Operating Voltage for SMPS : 80VAC-480VAC, 50-60Hz.
Comm.		RS485 Port	Supporting MODBUS-RTU protocol. (Infinity).
Measurement	Energy	Total ActiveEnergy (KWh)	Range of Reading: 0 to 9999999.9 KWh Accuracy: 1.0S as per IS13779.
Miscellaneous	Dimensions	Bezel	96 X 96 mm
		Panel Cutout	92 X 92 mm
		Depth of installation	55 mm
		Operating temp	0°C to 60°C
		Weight	0.30 Kg. (Infinity), 0.264 Kg. (Entity)
		Min.Operating Current	0.4% of CT primary.
		Dual Source Sensing	By presence or absence of 230VAC across two terminals can be looped.

VAF

Class 1.0 accuracy
Compact 96 x 96 x 55 mm DIN enclosure
Ideal for supervision & audit of specific loads
Micro-Controller based
True RMS

Catalogue Enquire Now

Specification
Sr. No.	Parameters & Options	Statistics
1.	Volts R-N	Direct Voltage Input : Up to 300V L-N Burden : 0.5VA Secondary Voltage Input : 63.5V*
2.	Volts Y-N
3.	Volts B-N
4.	Volts RY	Direct Voltage Input : Up to 500V L-L Burden : 0.5VA Secondary Voltage Input : 110V*
5.	Volts YB
6.	Volts BR
7.	Current R	Secondary Current Input : 5A or 1A (To be specified at thetime of Ordering) CT- Primary : Site Selectable Range of Reading : 5 – 5000A Burden : < 1.0VA Overload(Through CT) : 5A CT = 6A RMS Continuous 1A CT = 1.2A RMS Continuous (Whole Current) : 120% of Imax continuous.
8.	Current Y
9.	Current B
10.	Frequency	45 to 55 Hz, Accuracy : 0.3% of Reading
11.	DISPLAY	0.4” Red Seven Segment.
12.	Installation	(a) 3P4W and 1P2W(b) 3P3W (optional)
13	Weight	0.3 kg (approx.)
14	Bezel	96x96 mm	DIN enclosure
15	Depth	55 mm	DIN enclosure
