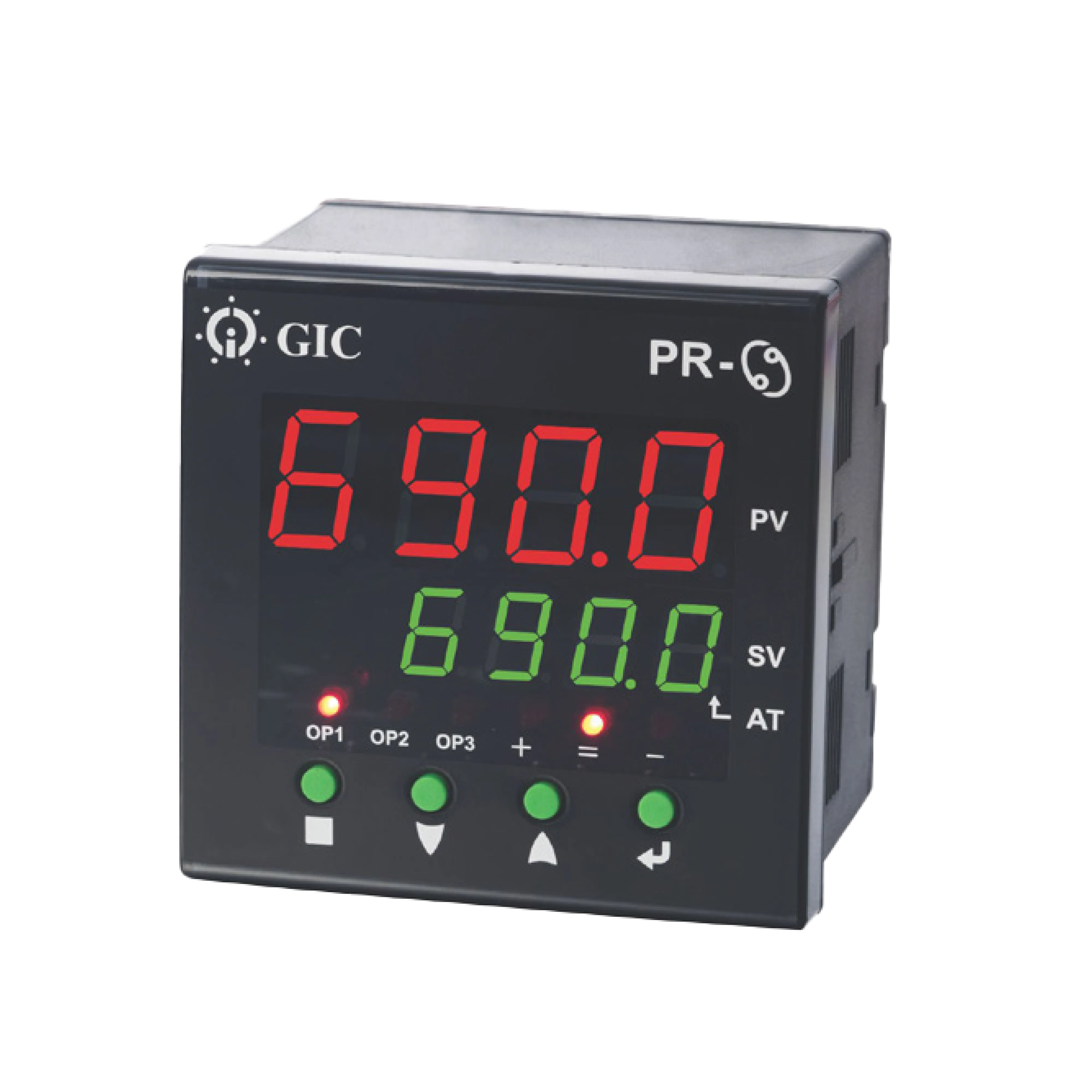

PID Temperature Controller Series PR 69
- 110-240 VAC,
- Thermocouple: J, K, E, S,B, R; RTD: PT 100-3 wire compensation sensor input
- Analog Signal DC: (0-50 mV,0-60 mV,12-60 mV), (0-5 V, 1-5 V, 0-10 V, 4-20 mA)
- Configurable: Band, Deviation,Sensor break & Loop break alarms
- Single/Dual acting PID controllers with 5 Control modes with RS 485
- Auto-tuning PID with provision for Soft-Start
- 6 Segment Ramp & Soak profile with Power Failure resumption modes
- Control Output: Relay, SSR & Analog Output
- Available in 48x48 mm &

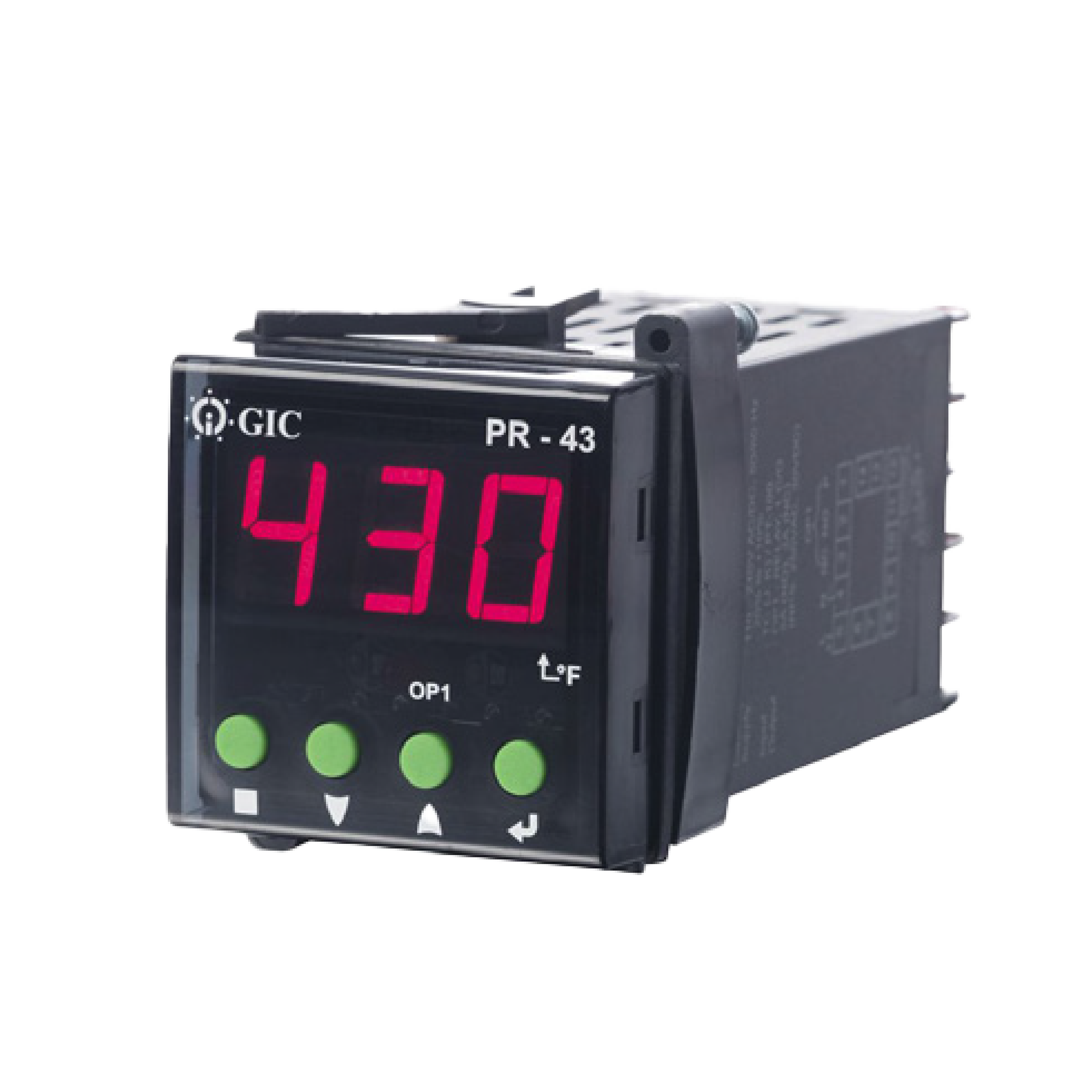

Temperature Controller Series PR 43
- 110-240 VAC,
- Thermocouple: J, K;RTD: PT 100-3 wire compensation sensor input
- Control Modes: Proportional,ON-OFF Asymmetric, ON-OFF Symmetric
- Control Output: Relay & SSR Drive
- Highly Accurate Performance
- Available in 48X48 mm & 96X96 mm models

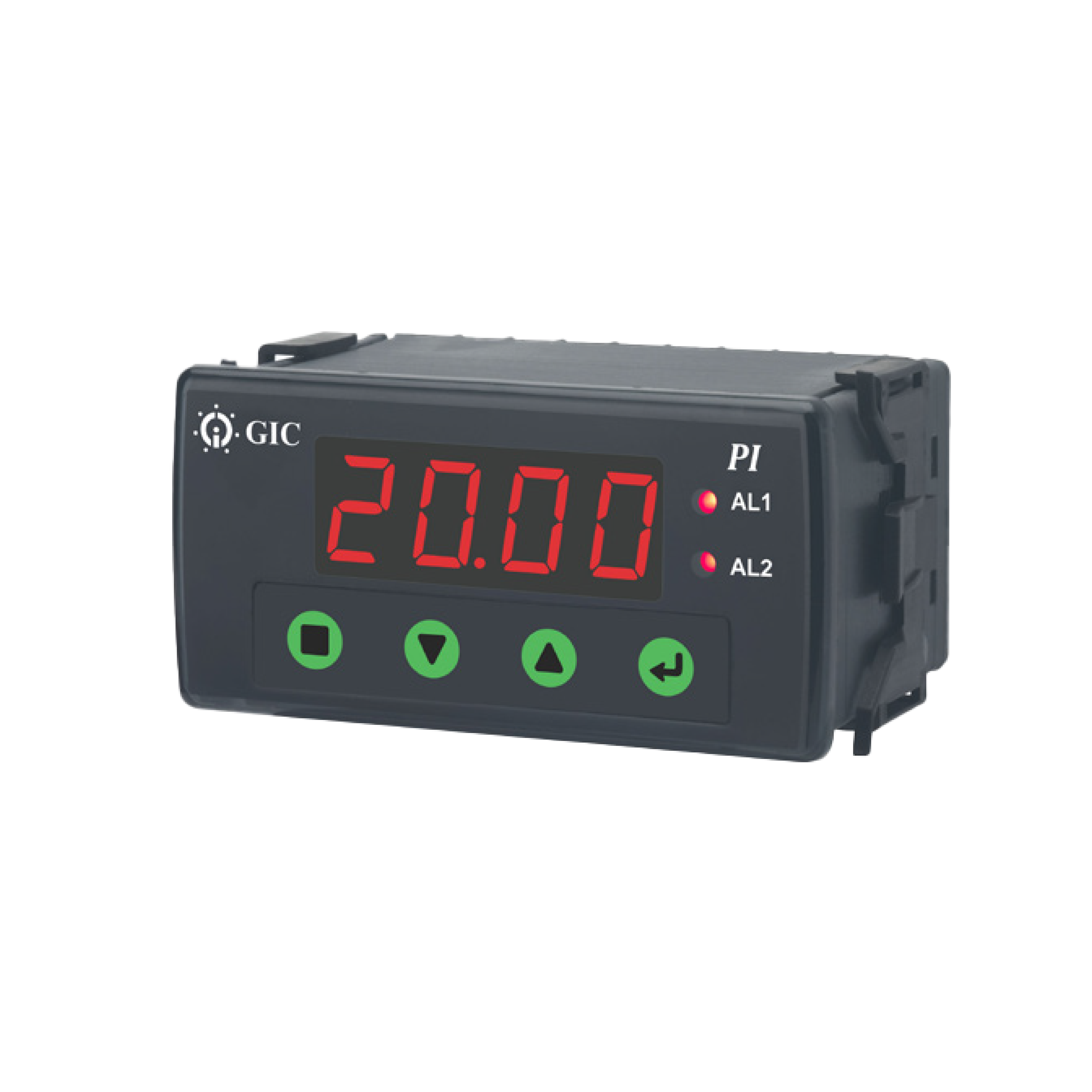

Process Indicator
- 180-270 VAC/DC
- Flush mounting version 96X48mm with 7 segment display
- Thermocouple (J,K,T,R & S)/RTD 3-wire (Pt-100) sensor inputs
- Analog Inputs (0-10 VDC/0-20mA/4 to 20mA), mV(Linear)-5 to 56mV
- Alarm outputs - Analog (0-20mA/ 4-20mA or 0-10V/ 0-5V) & relay 5A
- Short depth of 65 mm
- RS 485 Communication
- Hour Meter

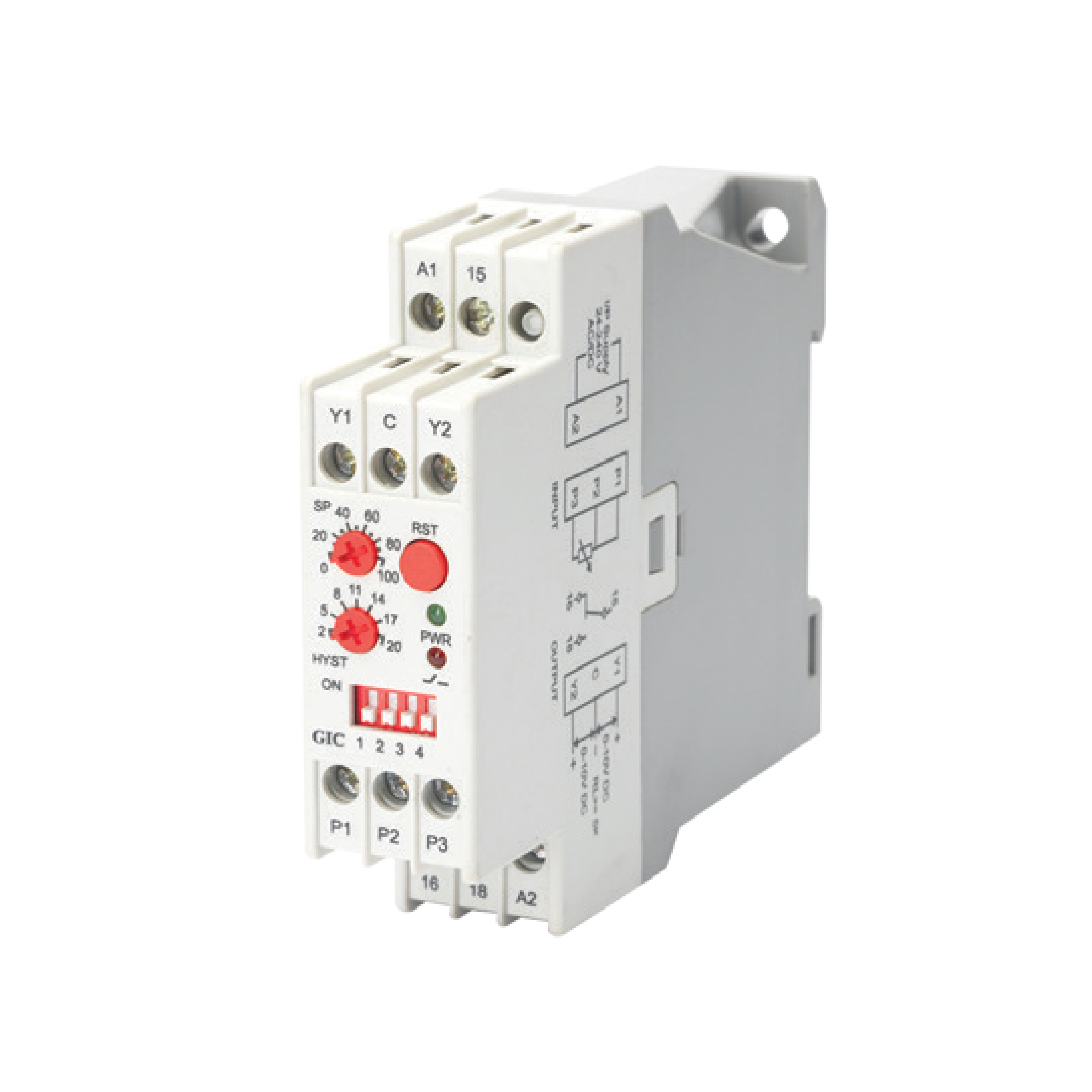

PT-100 Temperature Control Relay
- Wide operating Supply Range 24-240 VAC/DC
- Adjustable wide temperature range from -50°C to 300°C through DIP switches
- 2 analog outputs of 0-10 VDC
- High load switching capacity of output up to 10A
- LED Indications for power ON and relay ON status

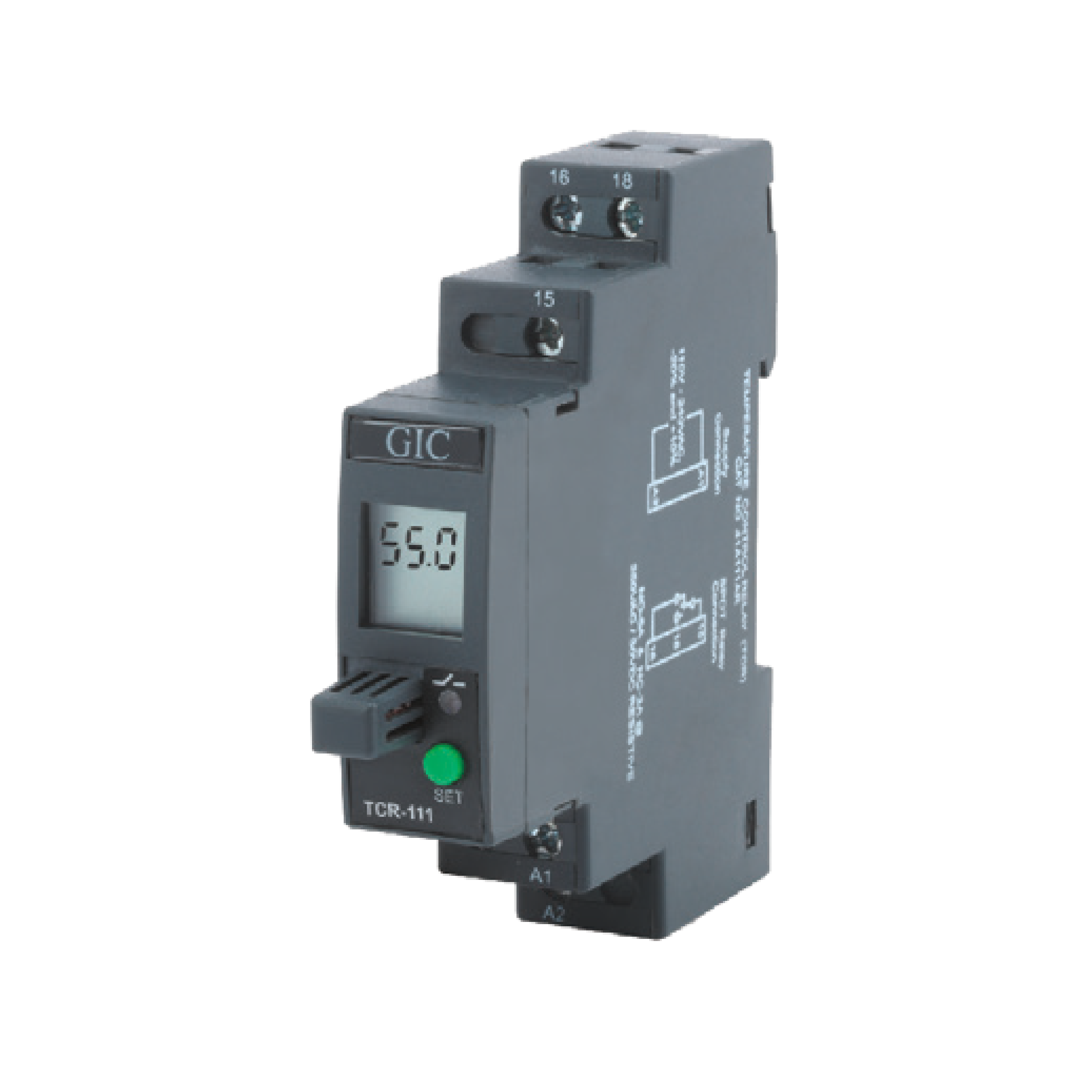

Temperature Control Relay
- 110-240 VAC, Inbuilt Temperature Sensor
- Wide ambient temperature monitoring & controlling range with inbuilt sensor
- Protection against variations of ambient temperature with respect to the set point (StH & StL)
- 3 digit LCD display for real time Temperature Indication
- User adjustable offset (-10°C to +10°C)
- LED indication for Relay Trip
