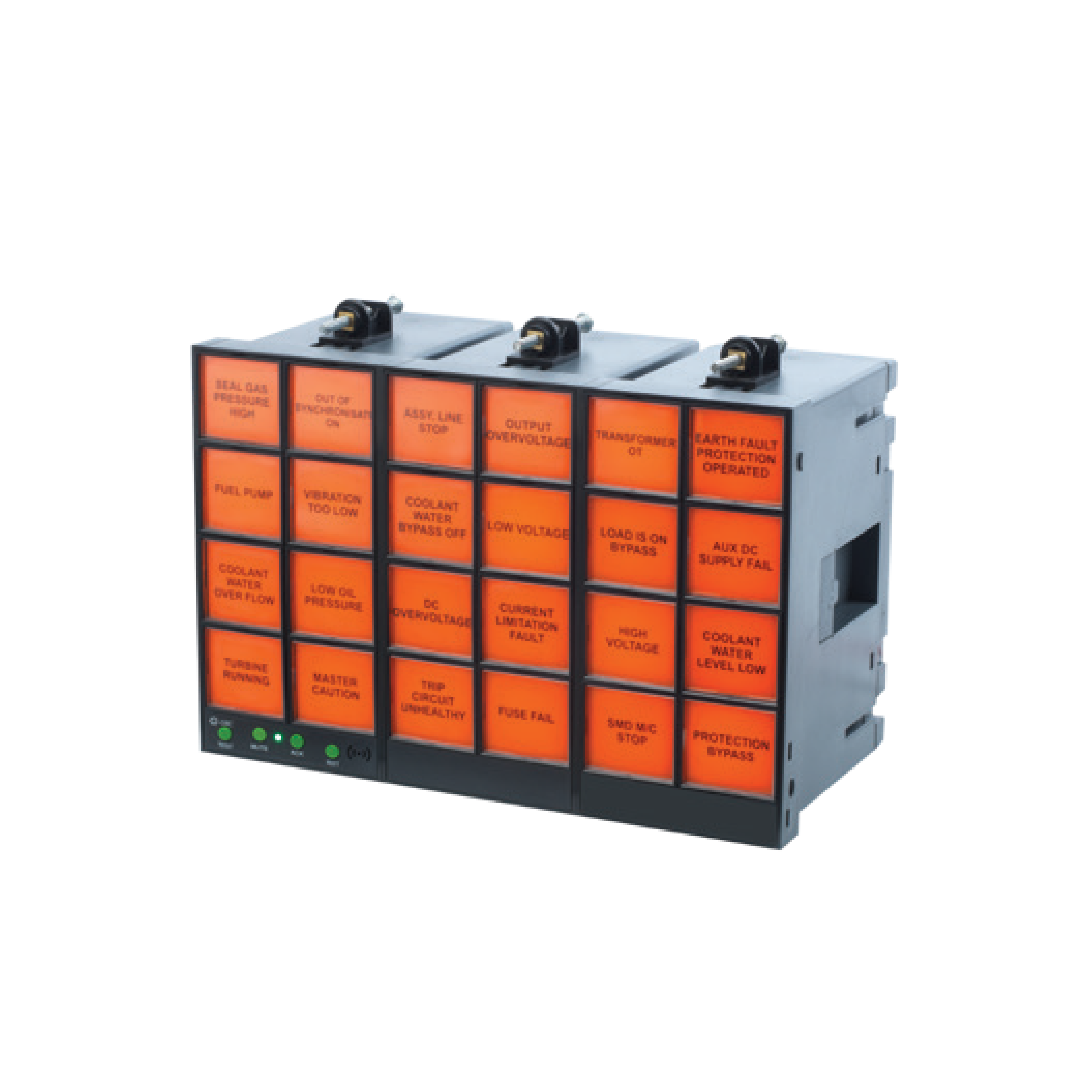

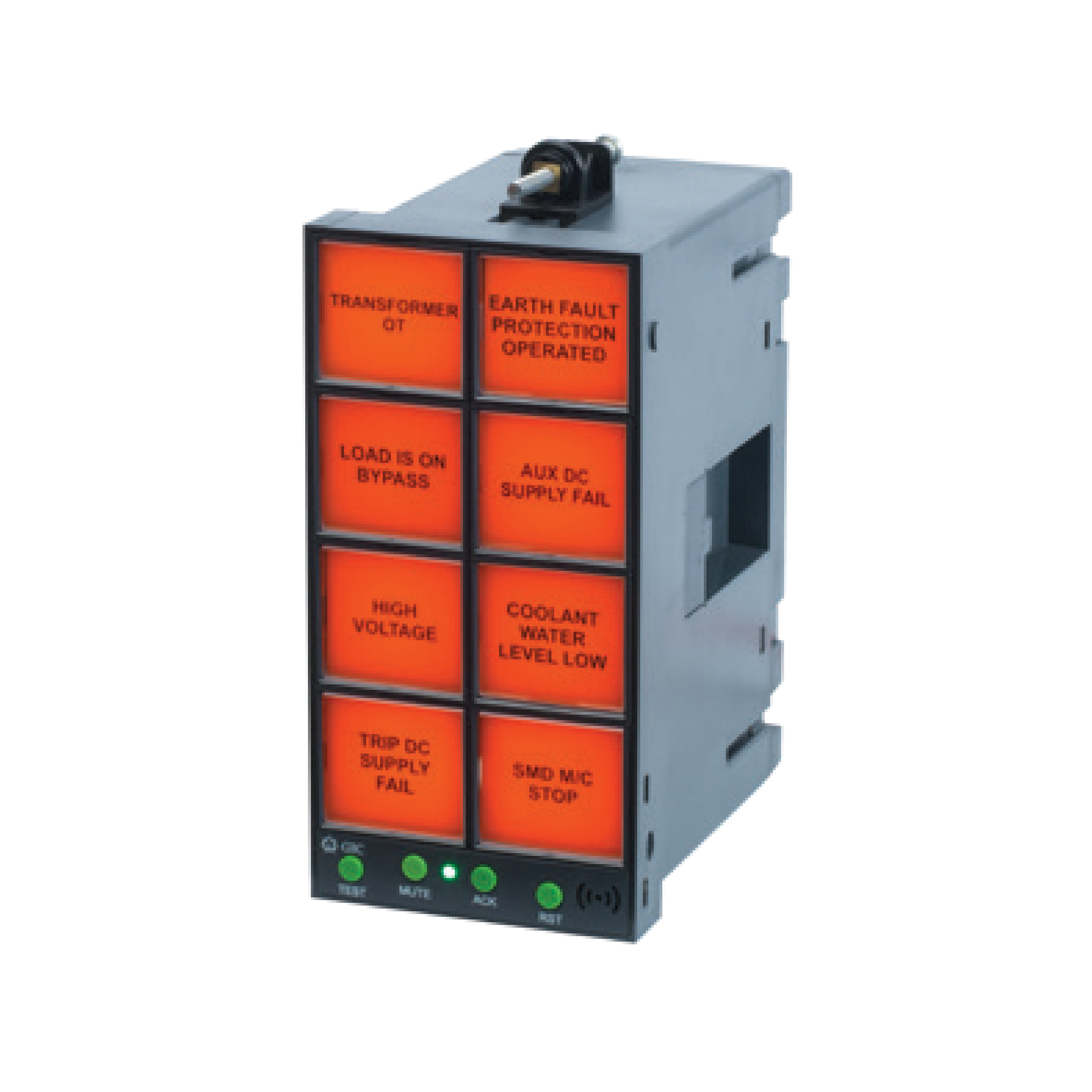

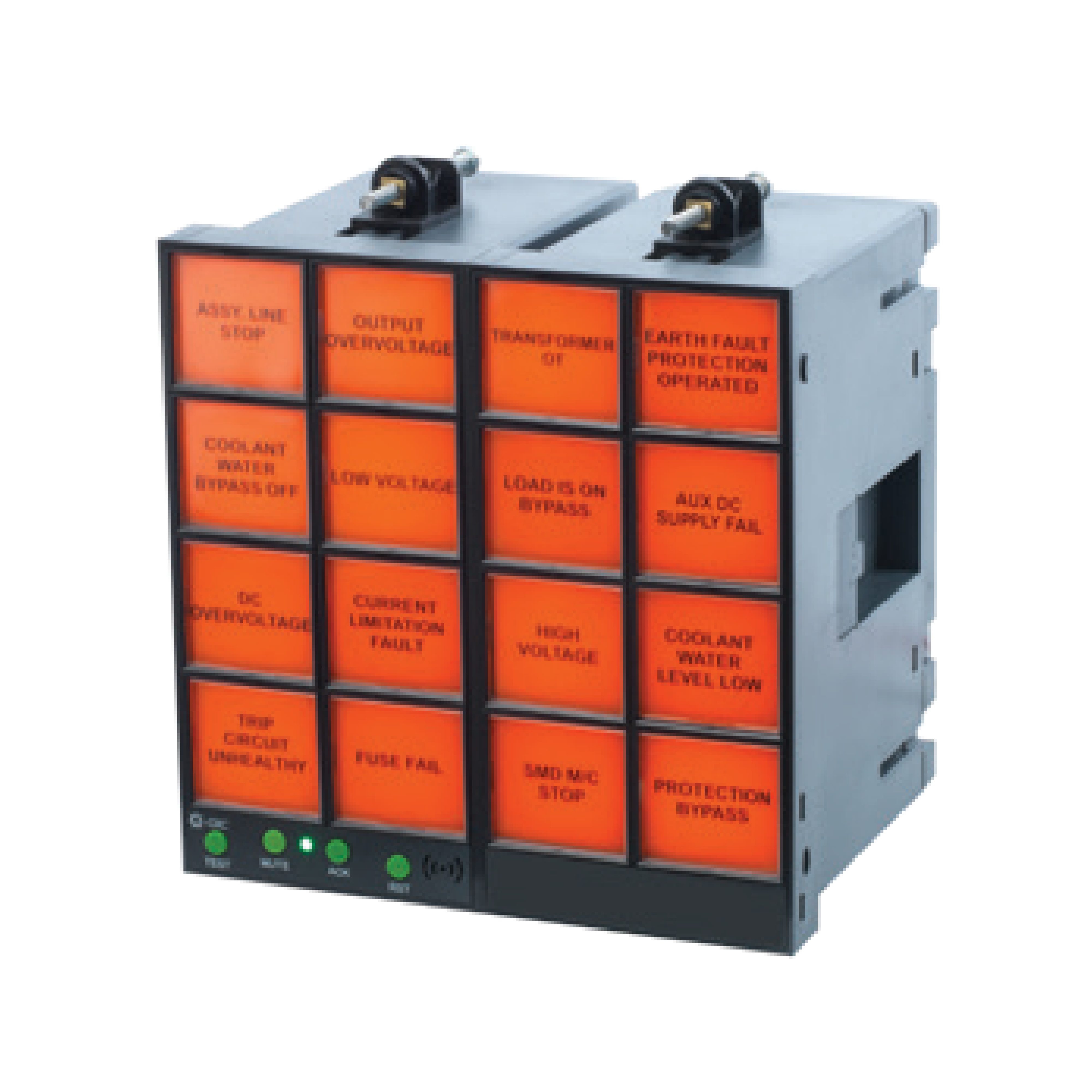

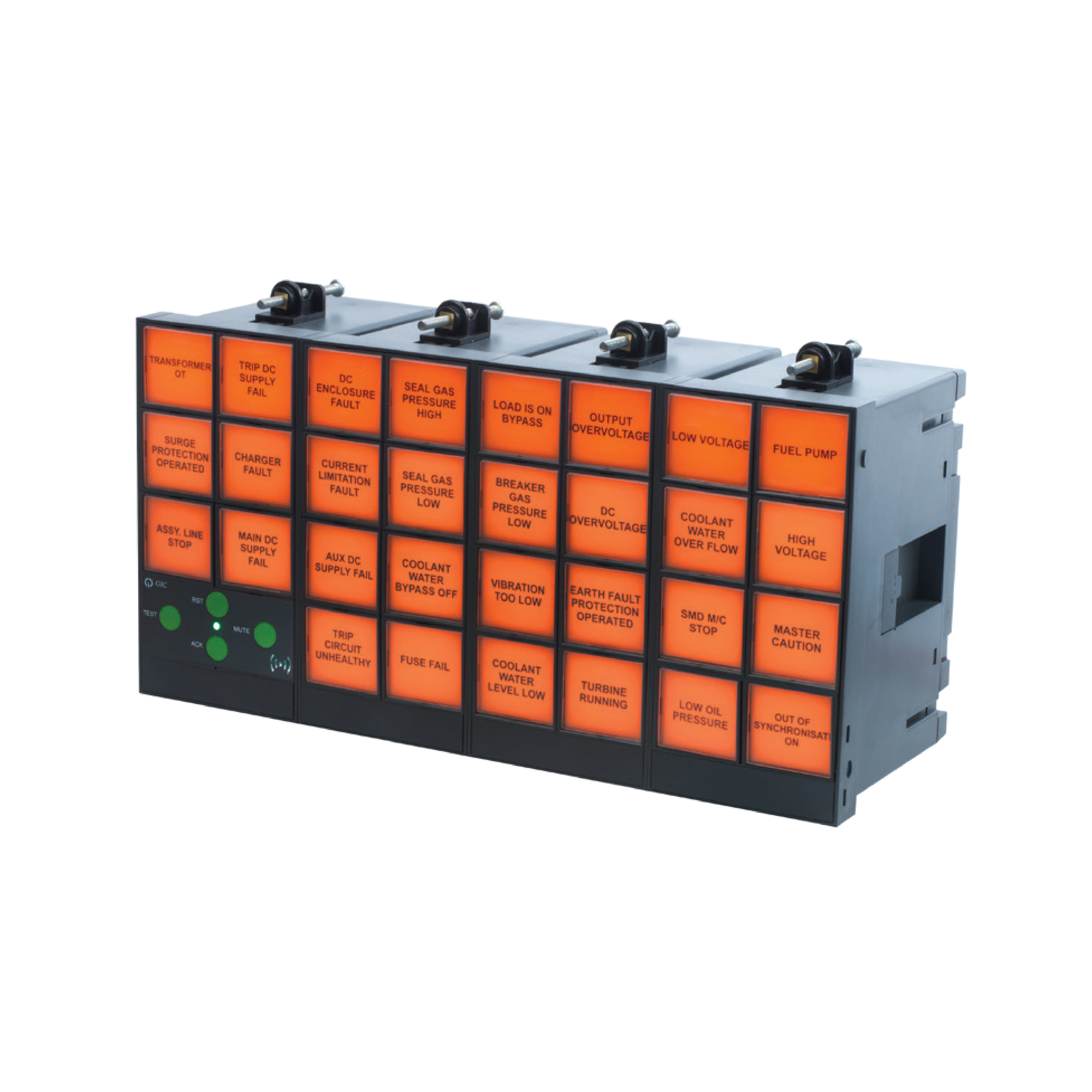

ALARM ANNUNCIATORS
- 90 - 270 V AC/DC, 18 - 60 V DC
- Standard models available from 2 to 48 windows
- Choice of 3 window sizes (Small, Medium, Large)
- Available in six window colours- Red, Yellow, Blue, Green, Amber and White
- Optically isolated fault inputs with wide fault input voltage range (12-240 VAC/DC +/-10%), Potential free fault inputs
- Field selection for NO/NC fault input contacts, grouping of alarms, window size configuration
- Space saving due to lower depth of only 100mm
- Integral push buttons for Test, Acknowledge, Mute and Reset operations
- Four SPDT relay outputs (2 for grouping, 1 for external hooter, 1 for ring back sequence)
- Low power, super bright White LEDs for window illumination
- Replaceable windows and window legends
- Low power consumption of 0.5 W per window
- Replaceable LEDs, Fast Scan, Manned/Unmanned, Supervisory Relay & Annunciators with AC/DC fail feature available
- 6 Field selectable operation sequences as per ISA standard
- Integral buzzer for audible alarm output of 80 dB
- Communication interface with RS485 Modbus RTU protocol
- EMI/EMC compliant as per IEC standards
