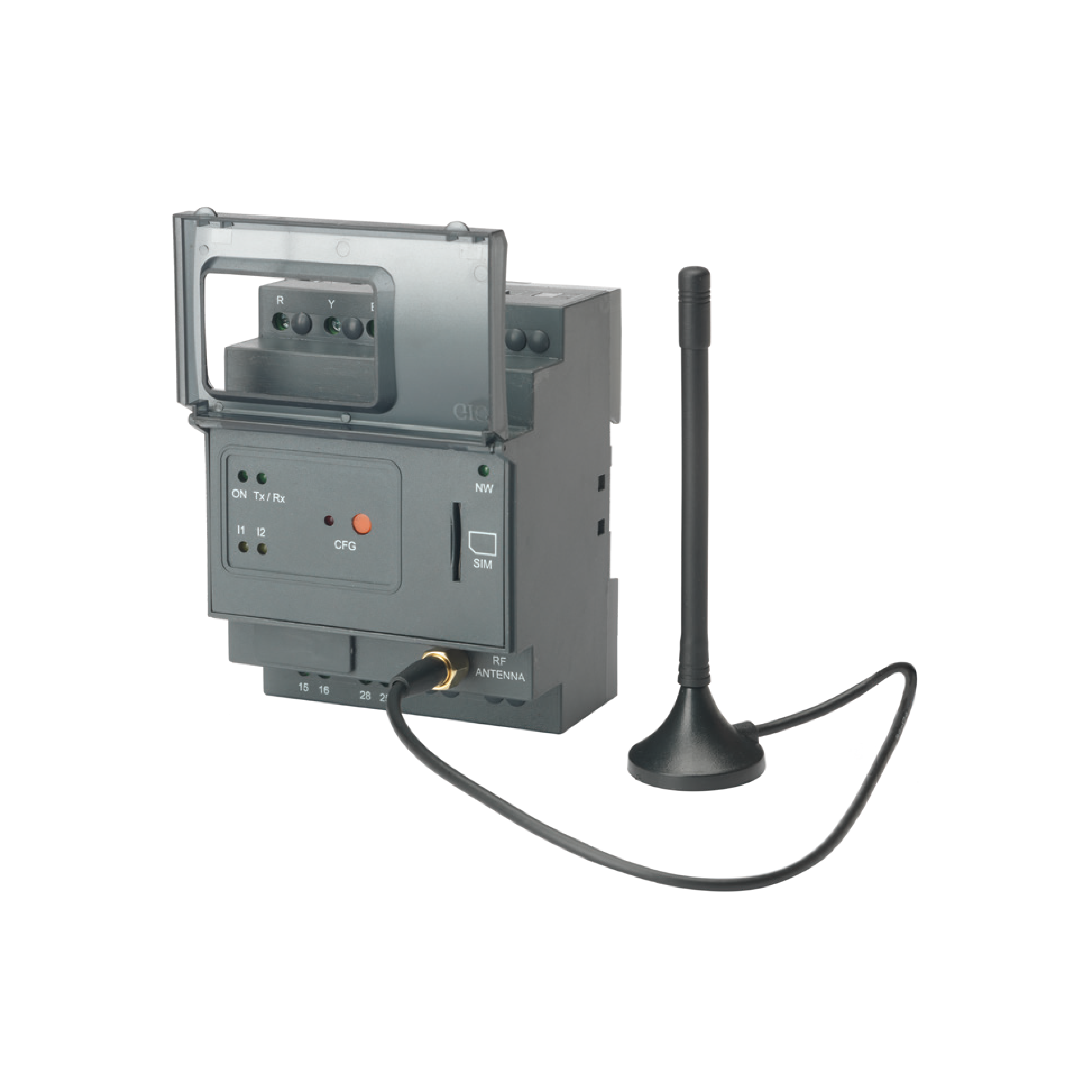

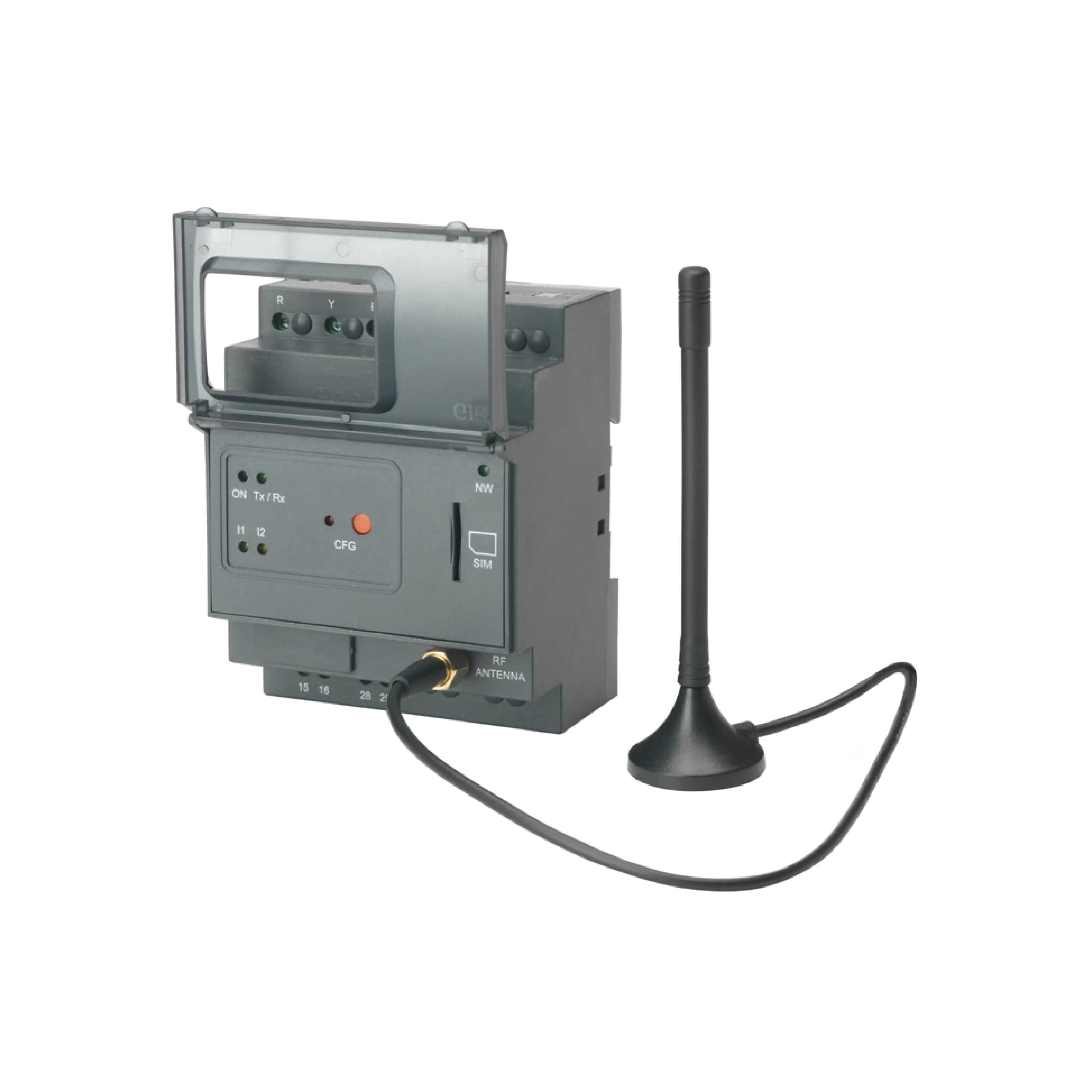

GSM Controller
- 85-500 VAC, Suitable for both 1 Phase and 3 Phase installations
- Ideal for ON/OFF Switching of load remotely using Mobile Handsets
- SMS alerts for ON/OFF status, Power fail, Power on, Phase error, Error recovery, Phase fail,Contactor pick-up fault and SIM balance
- Switching enabled by number of missed rings or sending SMS to the device
- Android App for remote monitoring & diagnostic control

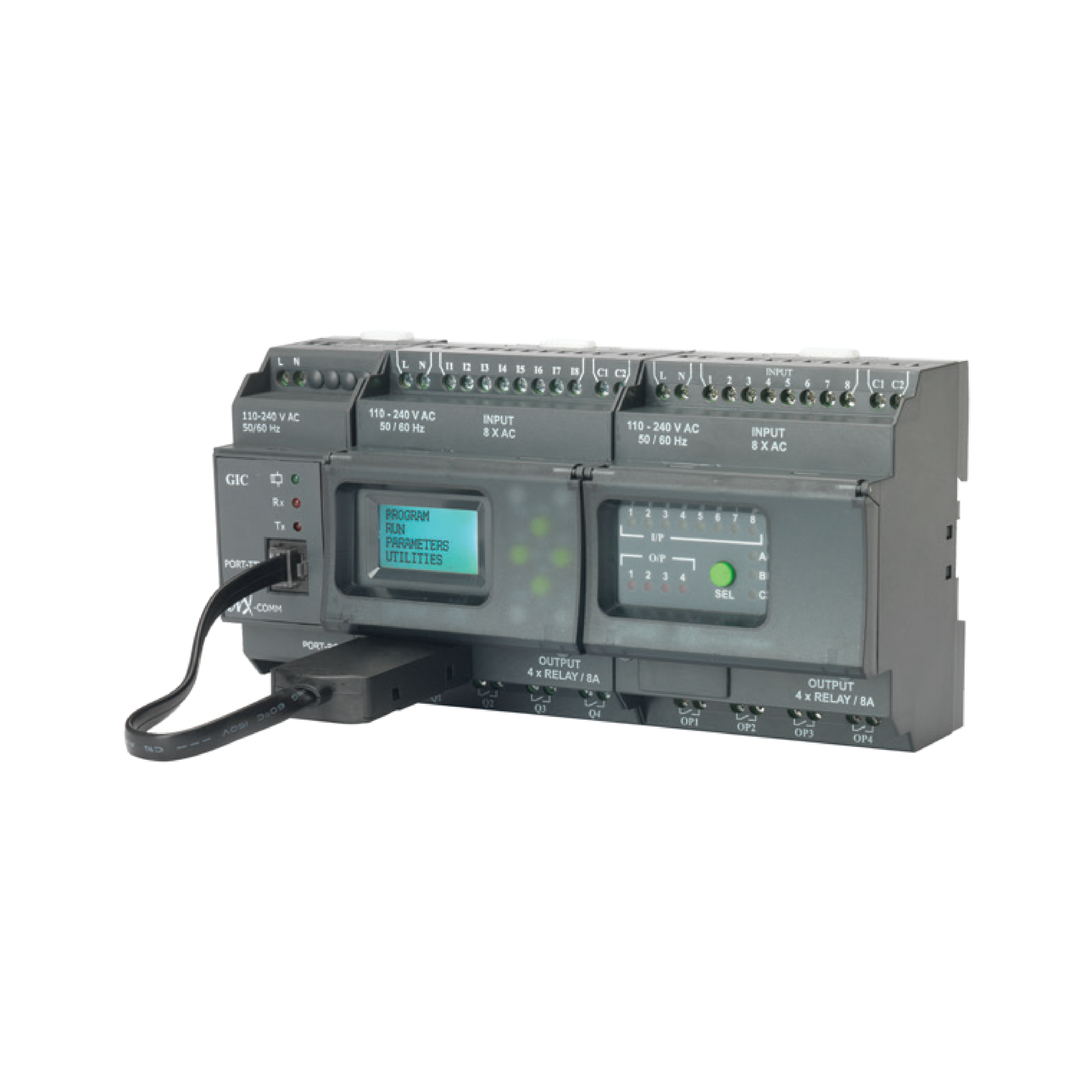

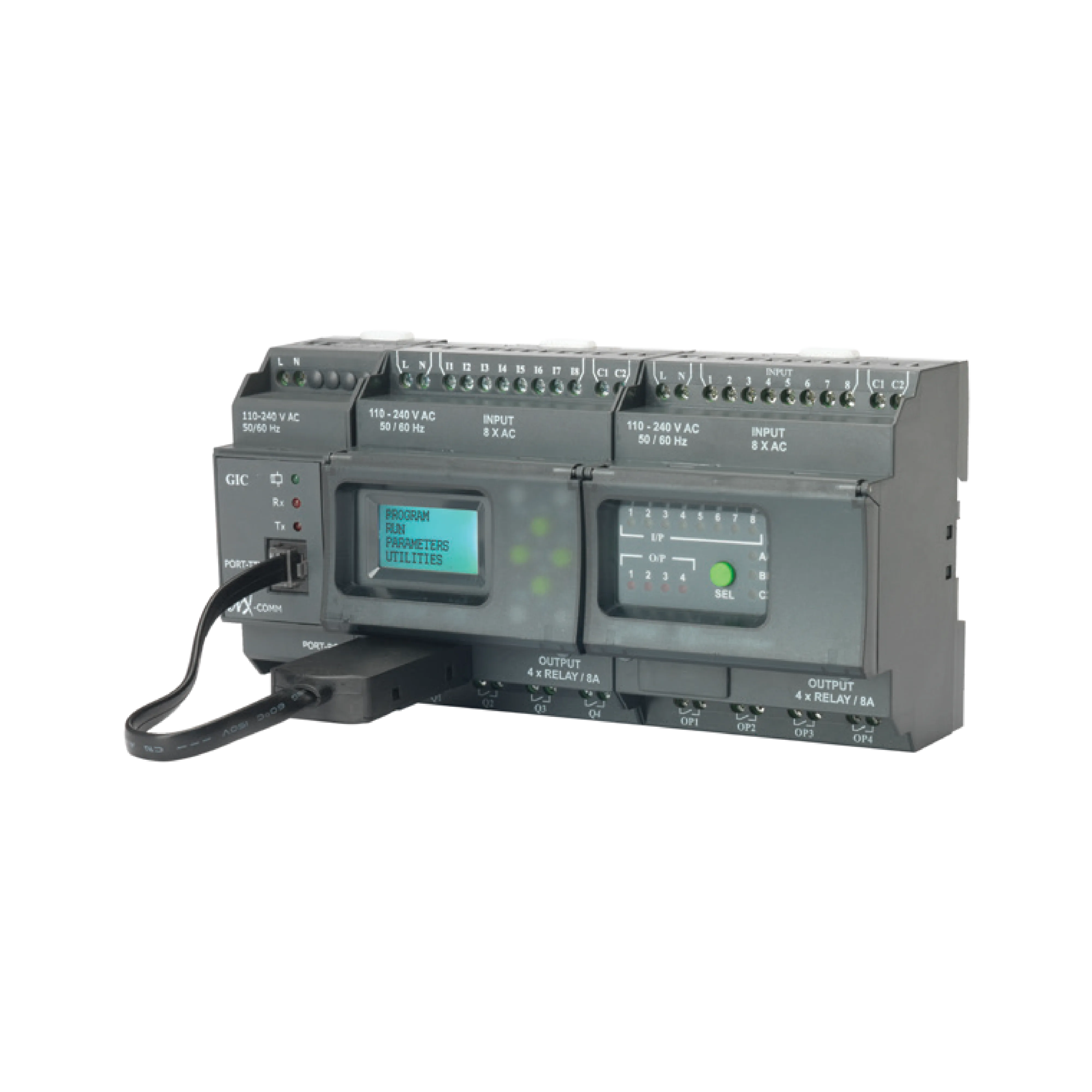

Smart Relay
- 12-24 VDC, 24 VAC/DC, 110-240 VAC
- Supports up to 48 I/Os (32 Digital Inputs & 16 Digital Outputs), 8 analog inputs
- 16 Timers, Time Switches, Counters, Compare Counters, Soft Text Messages, 12 Analog functions,4 Hour Meters, Advanced Time Switch and Multi-Level Password
- Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks,viewing I/O status and programming on the device
- PC software for programming, online & offline simulation, documentation & printing

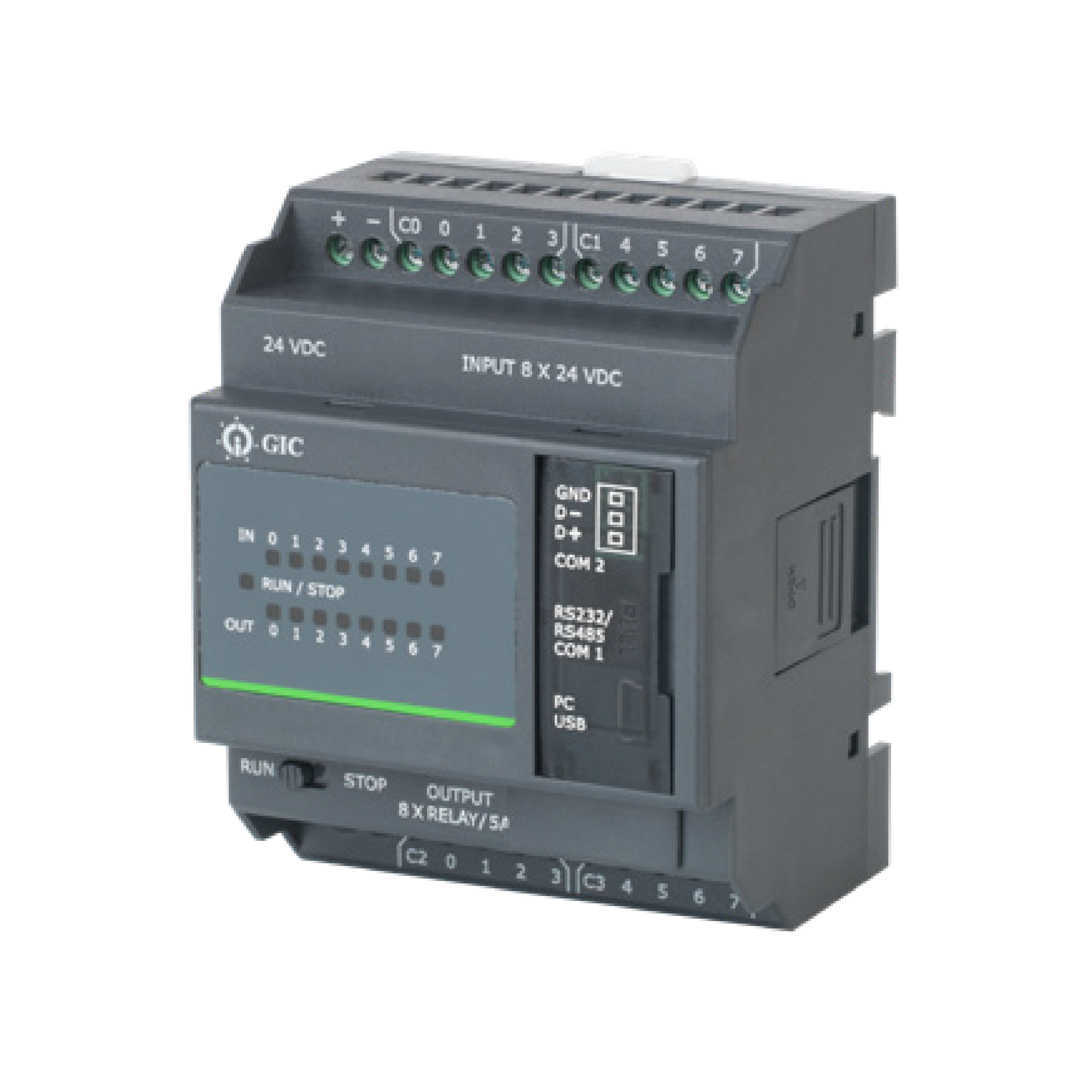

Mini PLC PL-100
- 24 VDC
- Supports up to 112 I/Os (56 Digital Inputs & 56 Digital Outputs), 24 Analog Inputs & 12 Analog Outputs
- Isolated Digital Inputs with sourcing & sinking capability
- High Speed Input & Outputs
- 2 COM Ports - Standard RS232 / RS485 port with RJ 11 & RS485 port with screwing connector
- Modbus RTU support
- PC software for programming, online & offline simulation, documentation & printing

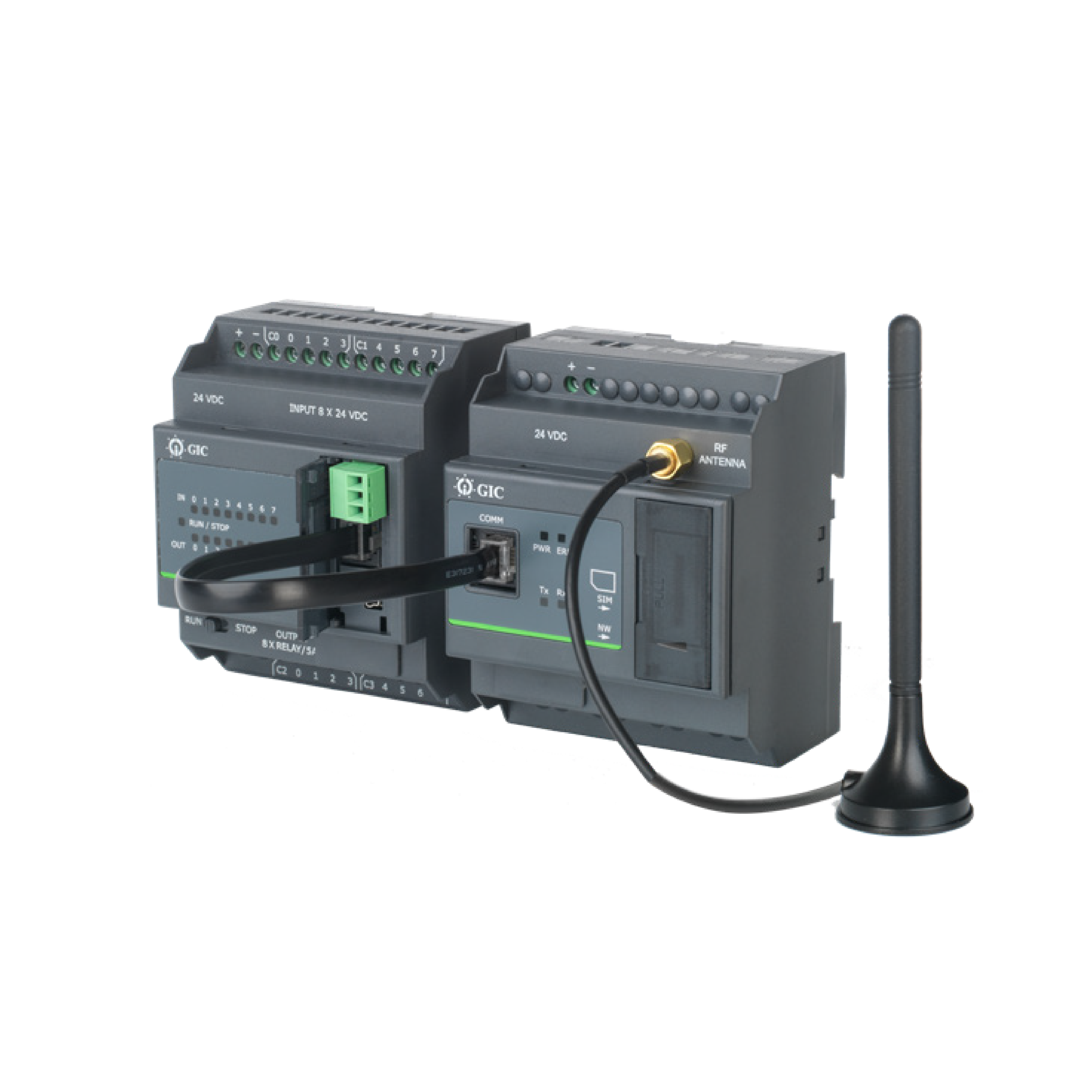

Mini PLC PL-100 Powered with GSM Alarm Modem
- The GSM Alarm Modem will enable monitoring of inputs, outputs and controlling of outputs of Mini PLC PL-100 through SMS facility
- The preset and current value related to special function blocks (SFBs) that are available in the ladder logic can be monitored
- Analog input and output values can also be effectively monitored and controlled
- Diagnostic information about all the inputs and outputs of devices connected in the system is available for the users. Device and Clock settings can be configured by sending respective queries to the device
- User can integrate Special Function Blocks such as Send and Receive SMS along with others like Timers, Time Switches, Counters, etc. for various applications
- Alert messages can be received from the GSM Alarm modem depending on the ladder logic
- Power Failure condition can also be effectively reported
