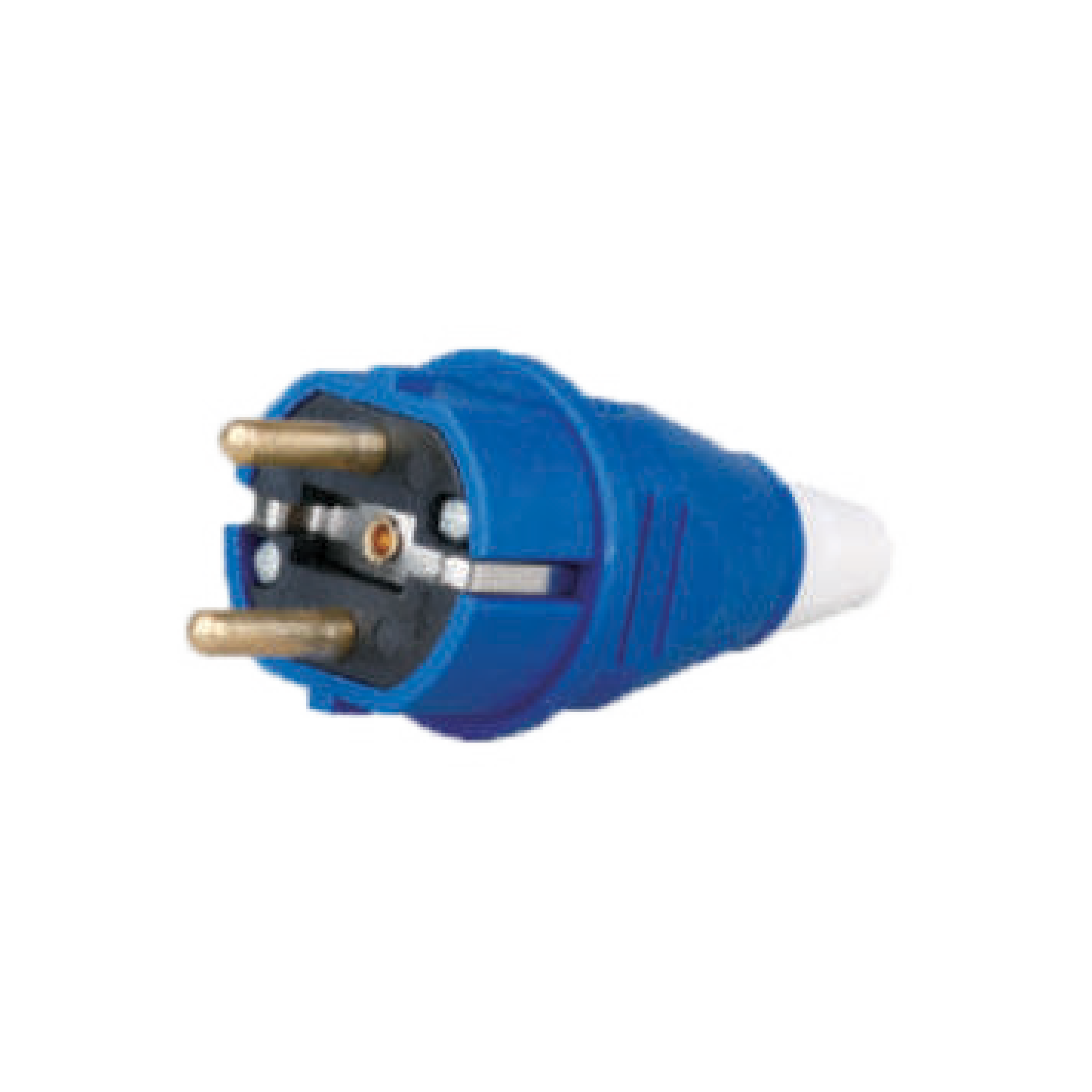

INDUSTRIAL PLUG

Application Plug
Code KS-012
Normal current 16A
Normal voltage 220 - 250 V
No. poles 2P+E
Protection degree IP44
a 40
b 96
Cable nominal cross section area 1 - 2.5 mm
Size (mm) / Type [1 KS - 012
a 40
b 96
Cable nominal cross section area 1 - 2.5 mm [2]2
Enquire Now

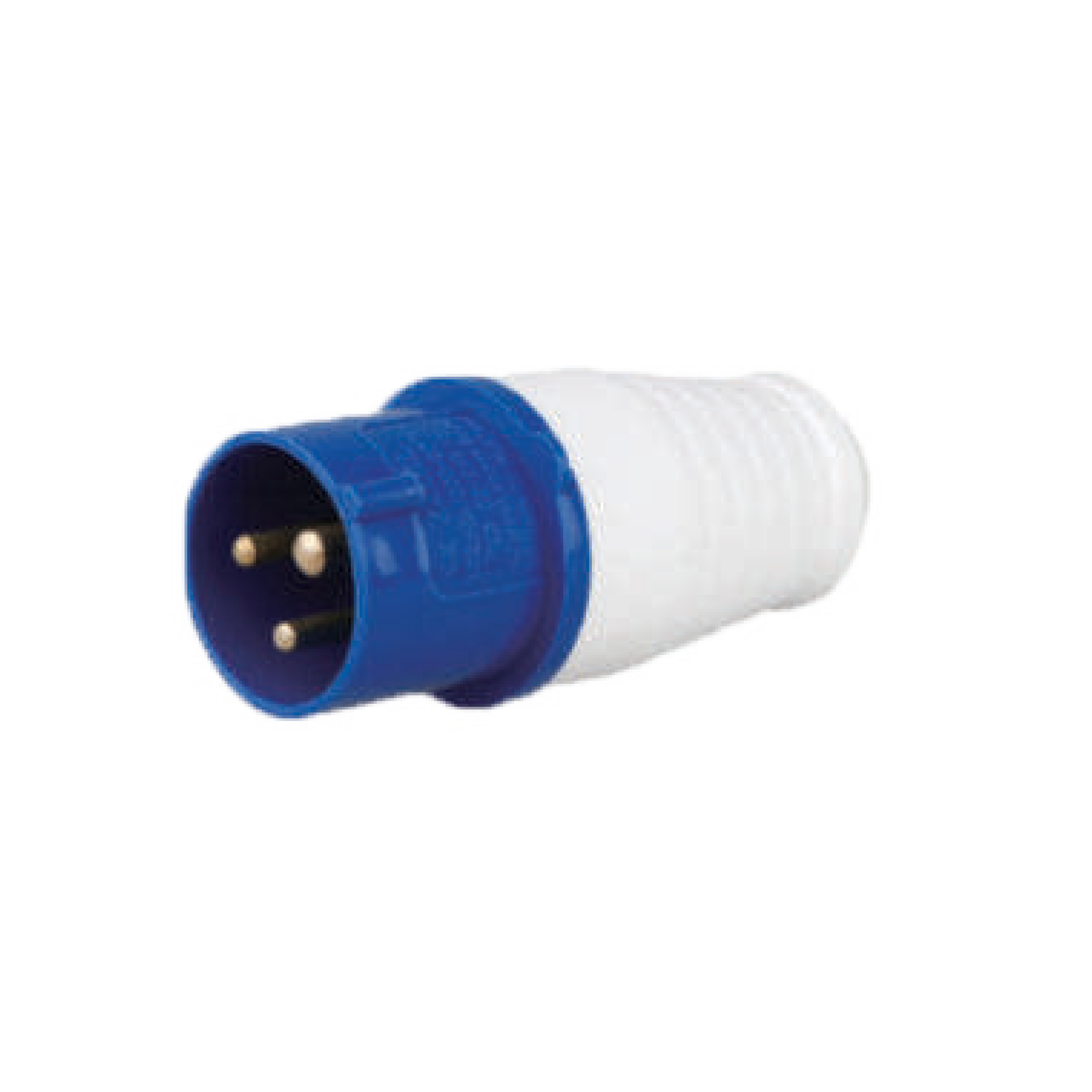

INDUSTRIAL PLUG

Application Plug Plug
Code KS-012 KS-023
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220 - 250 V~ 220 - 250 V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 012 KS - 023
a 59 75
b 51 64
c 122 136
6 8
Cable nominal cross section area 1-2.5 mm2 2.5-6mm2
Enquire Now

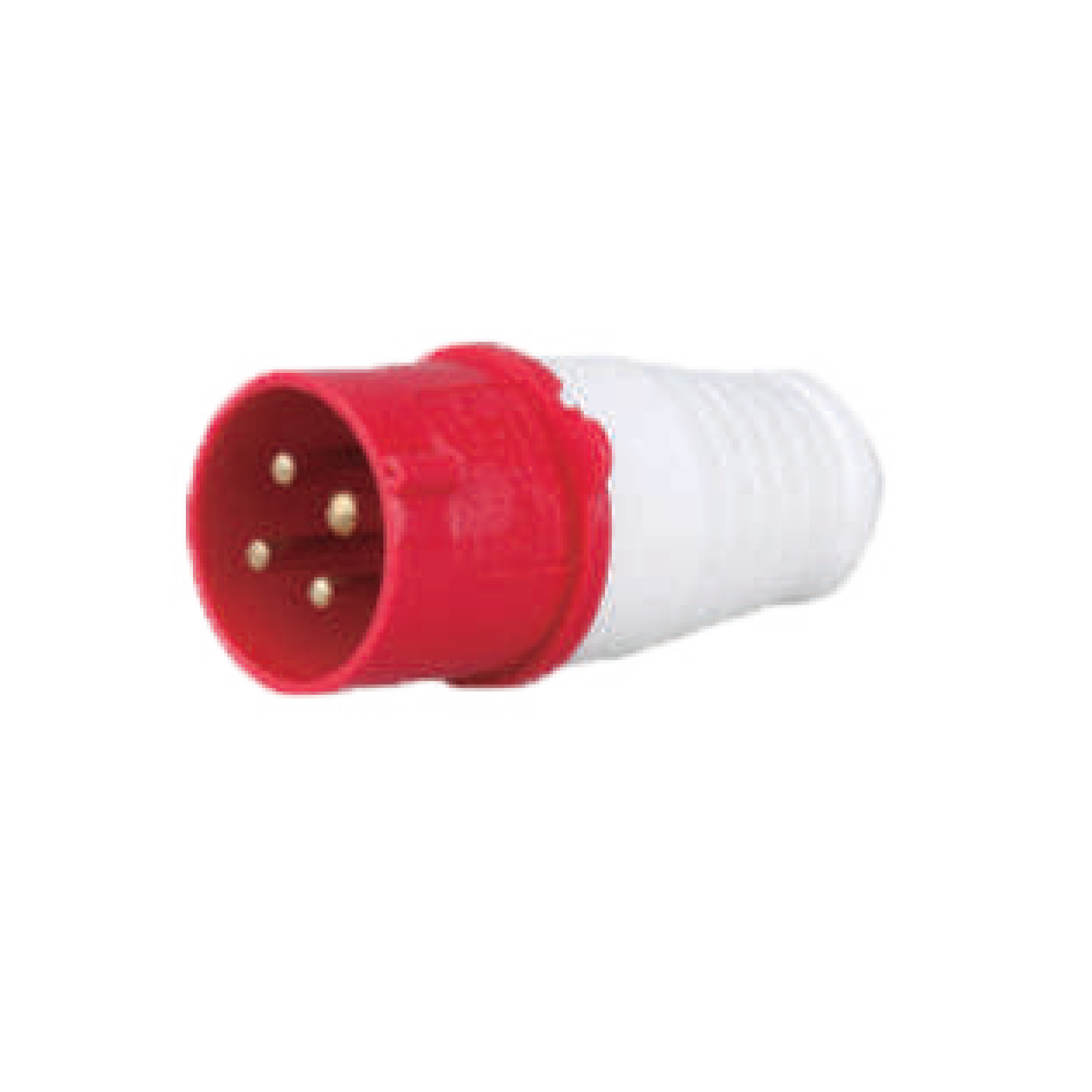

INDUSTRIAL PLUG

Application Plug Plug
Code KS-014 KS-024
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+E 3P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 014 KS - 024
a 65 75
b 55 64
c 122 136
6 8
Cable nominal cross section area 1-2.5 mm2 2.5-6mm2
Enquire Now

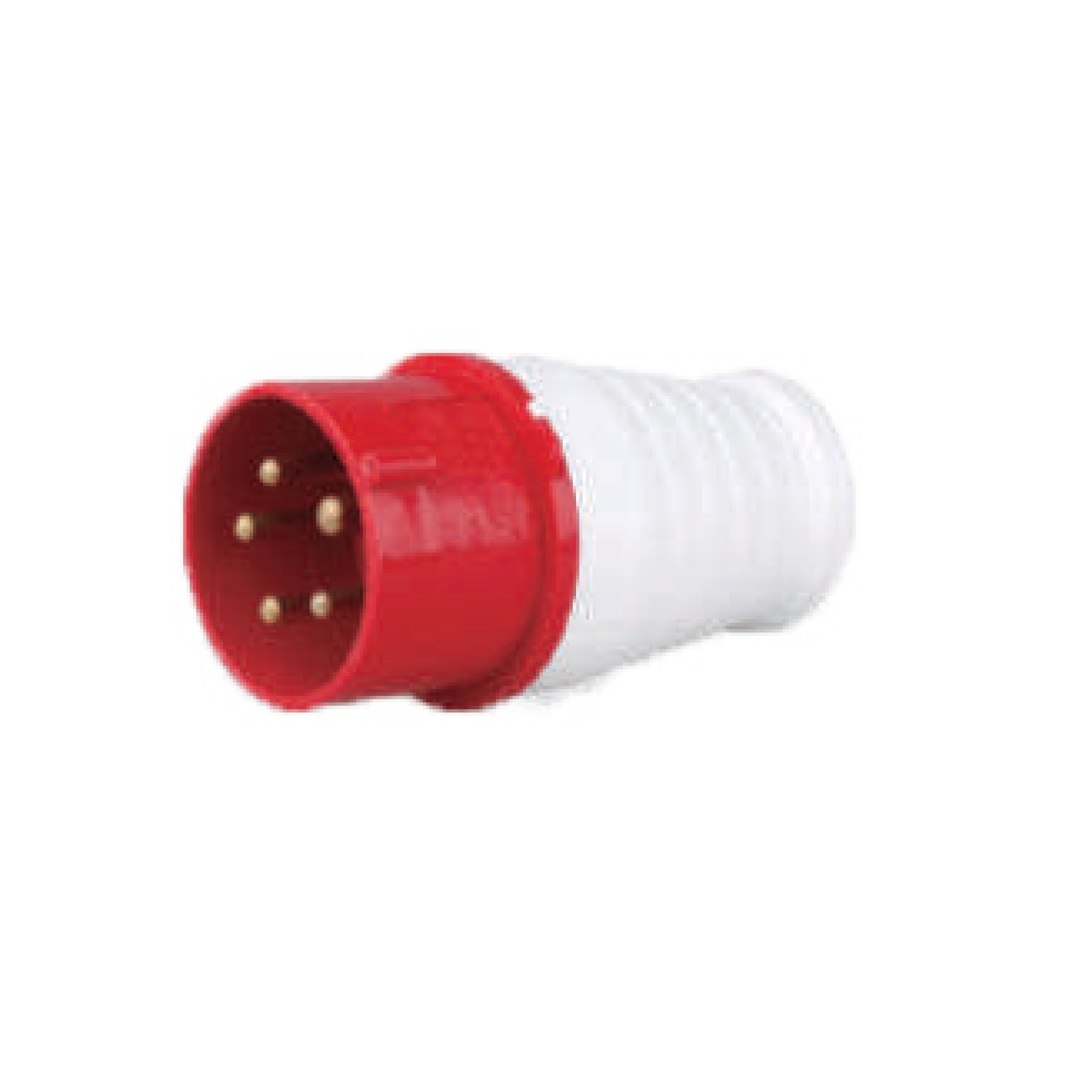

INDUSTRIAL PLUG

Application Plug Plug
Code KS-015 KS-025
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - 015
a 72
b 64
c 130
8
Cable nominal cross section area 1-2.5 mm2
Enquire Now

INDUSTRIAL PLUG

Application Plug Plug

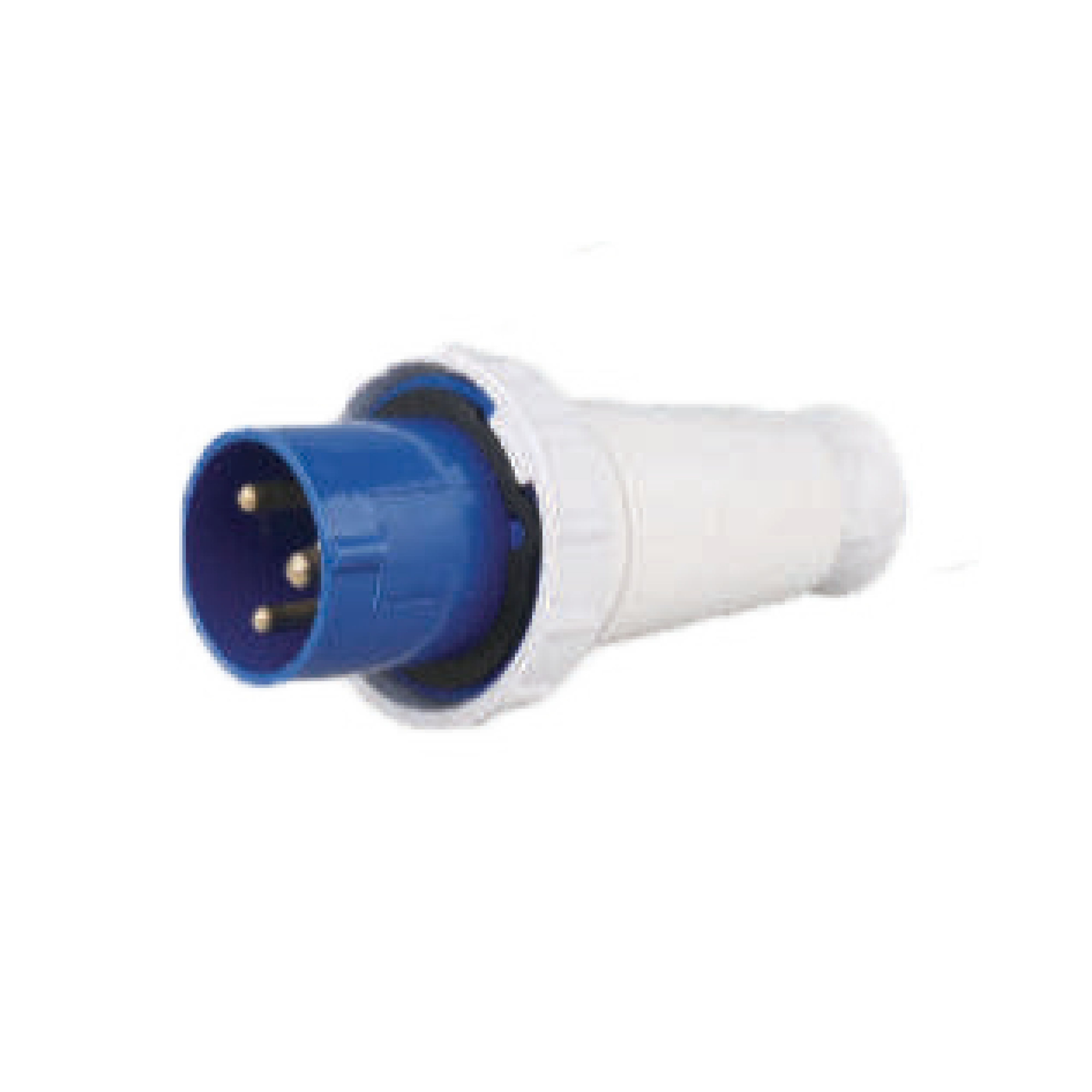

Code KS-033 KS-043
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 033 KS - 043
a 108
b 108
c 230
16
Cable nominal cross section area 6-16mm2
Enquire Now

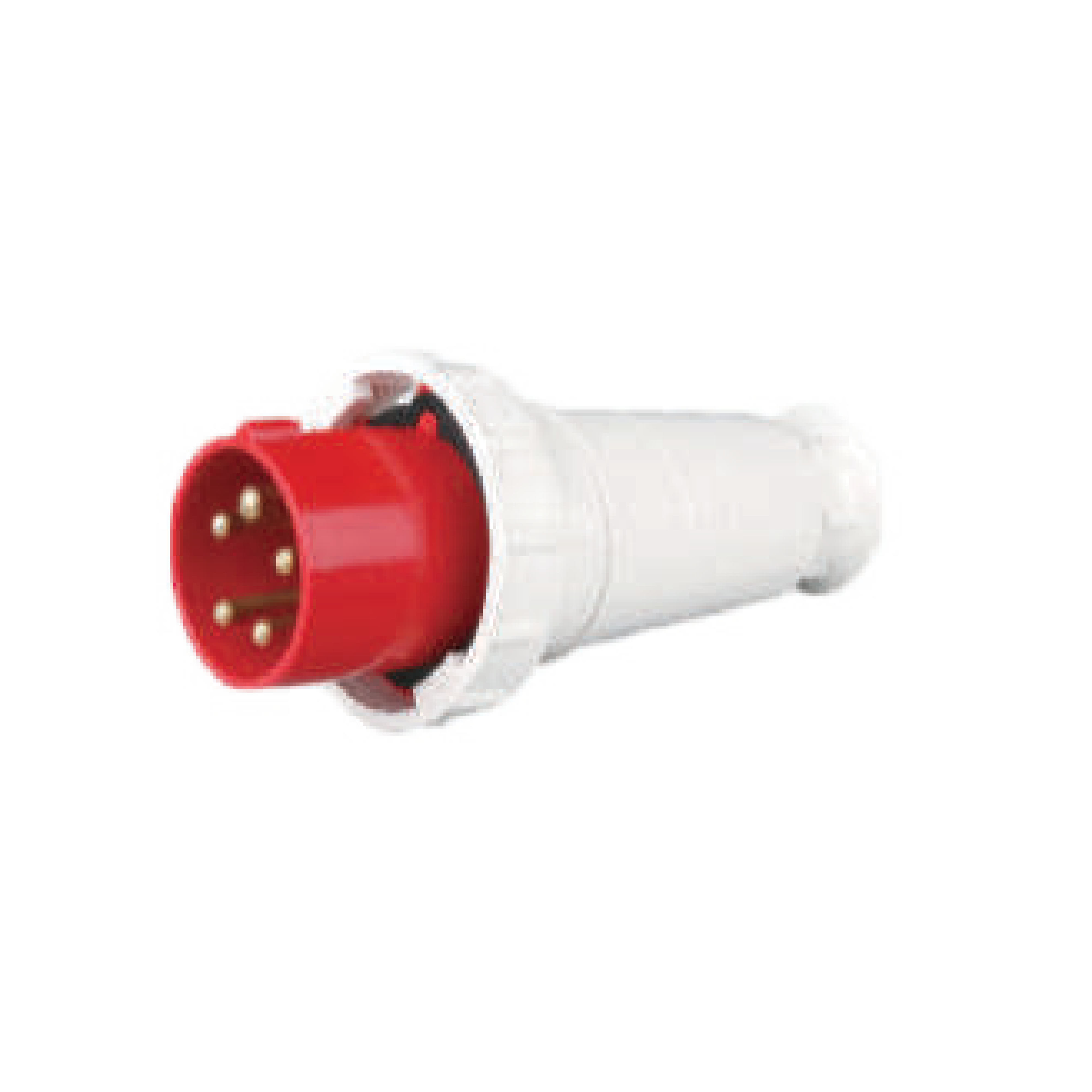

INDUSTRIAL PLUG

Application Plug Plug
Code KS-035 KS-045
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS - 035 KS - 045
a 108
b 108
c 230
16
Cable nominal cross section area 6-16mm2
Enquire Now

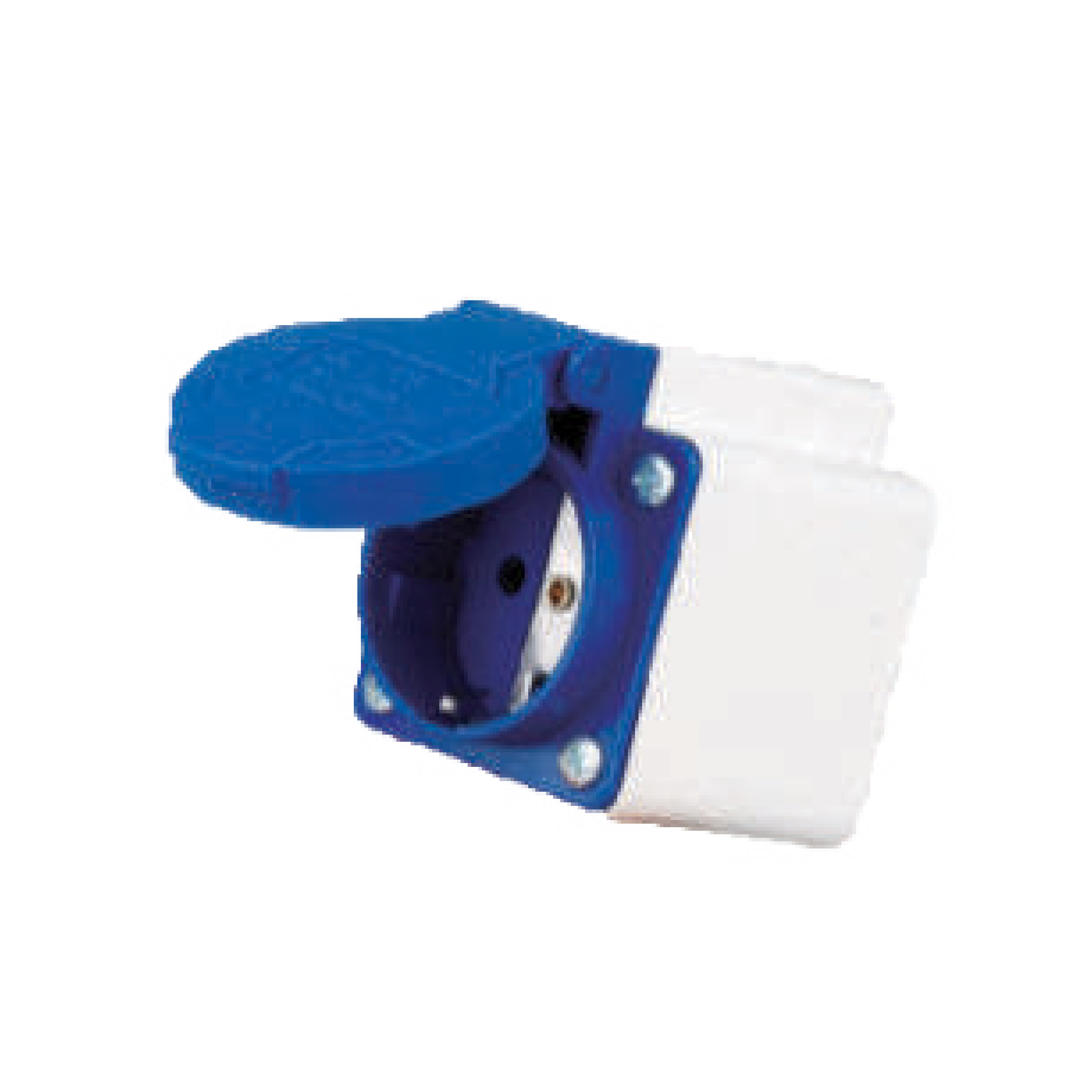

INDUSTRIAL WALL SOCKET

Application Socket
Code KS - 112
Normal current 16A
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS - 112
a 70
b 53
c 67
Cable nominal cross section area 1-2.5mm2
Enquire Now

INDUSTRIAL WALL SOCKET

Application Socket Socket

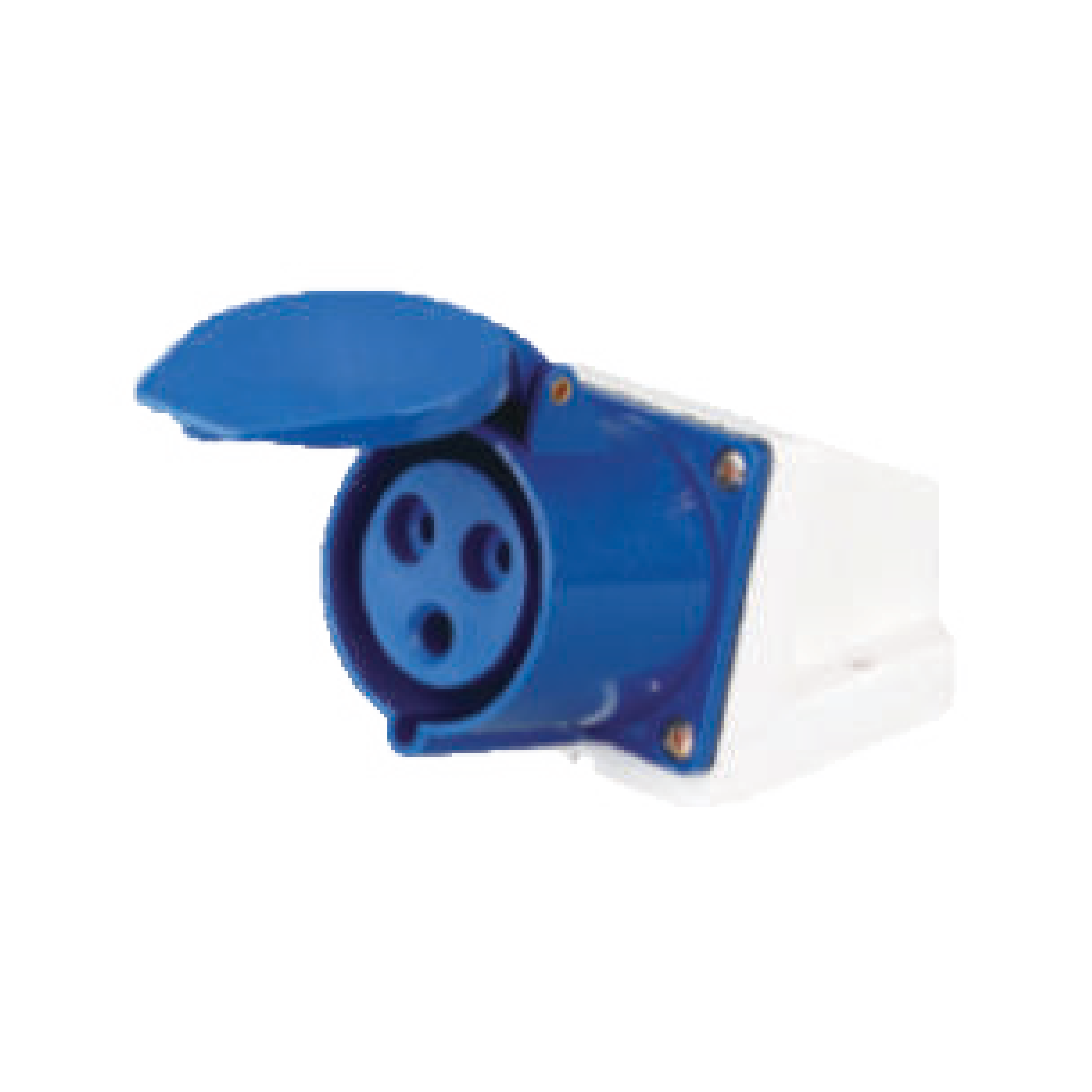

Code KS-113 KS-123
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 113 KS - 123
a 90 100
b 71 71
c 135 151
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

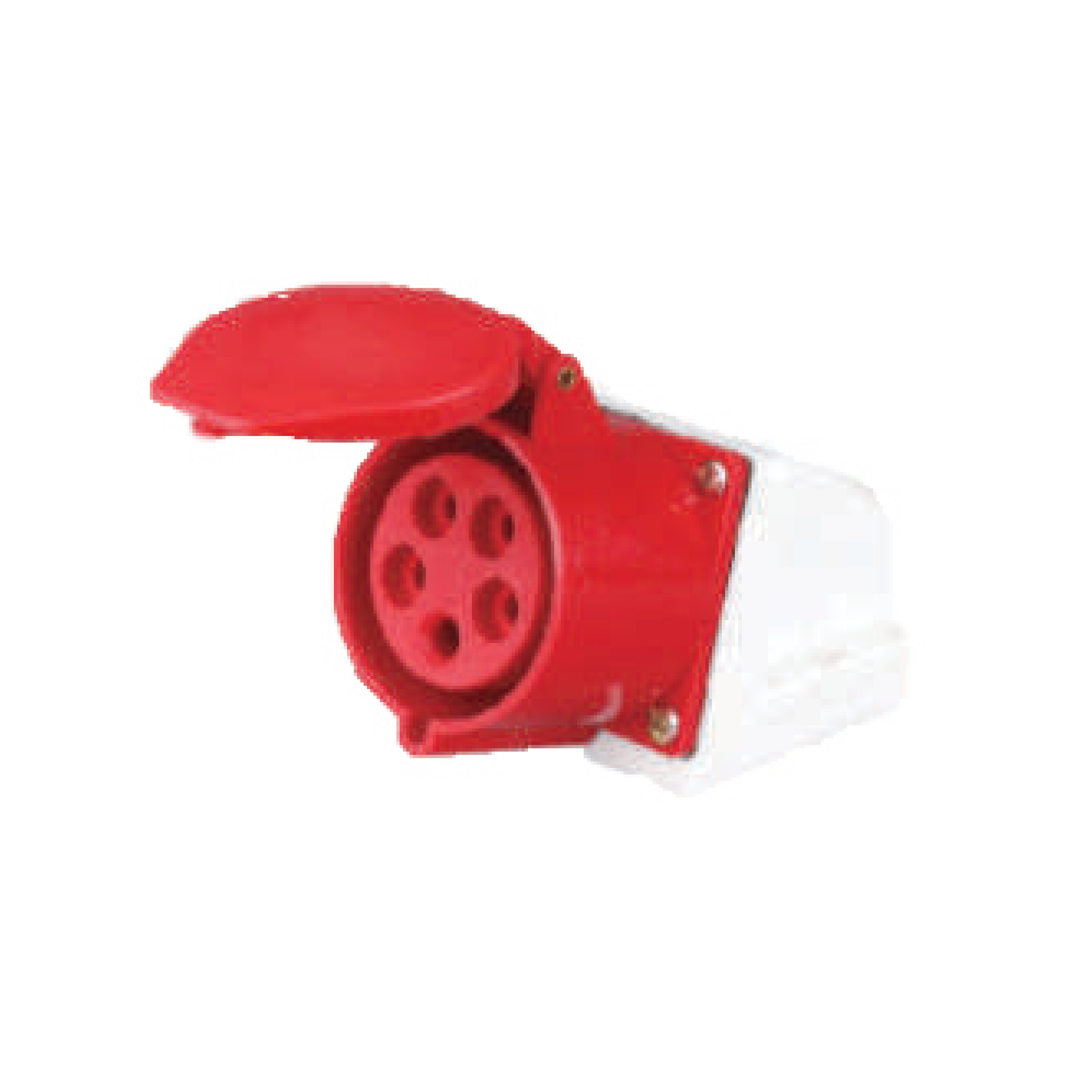

INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-114 KS-124
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+E 3P+E
Protection degree IP44 IP44
Size (mm) / Type KS - 114 KS - 124
a 92 102
b 71 71
c 140 151
16
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

INDUSTRIAL WALL SOCKET

Application Socket Socket

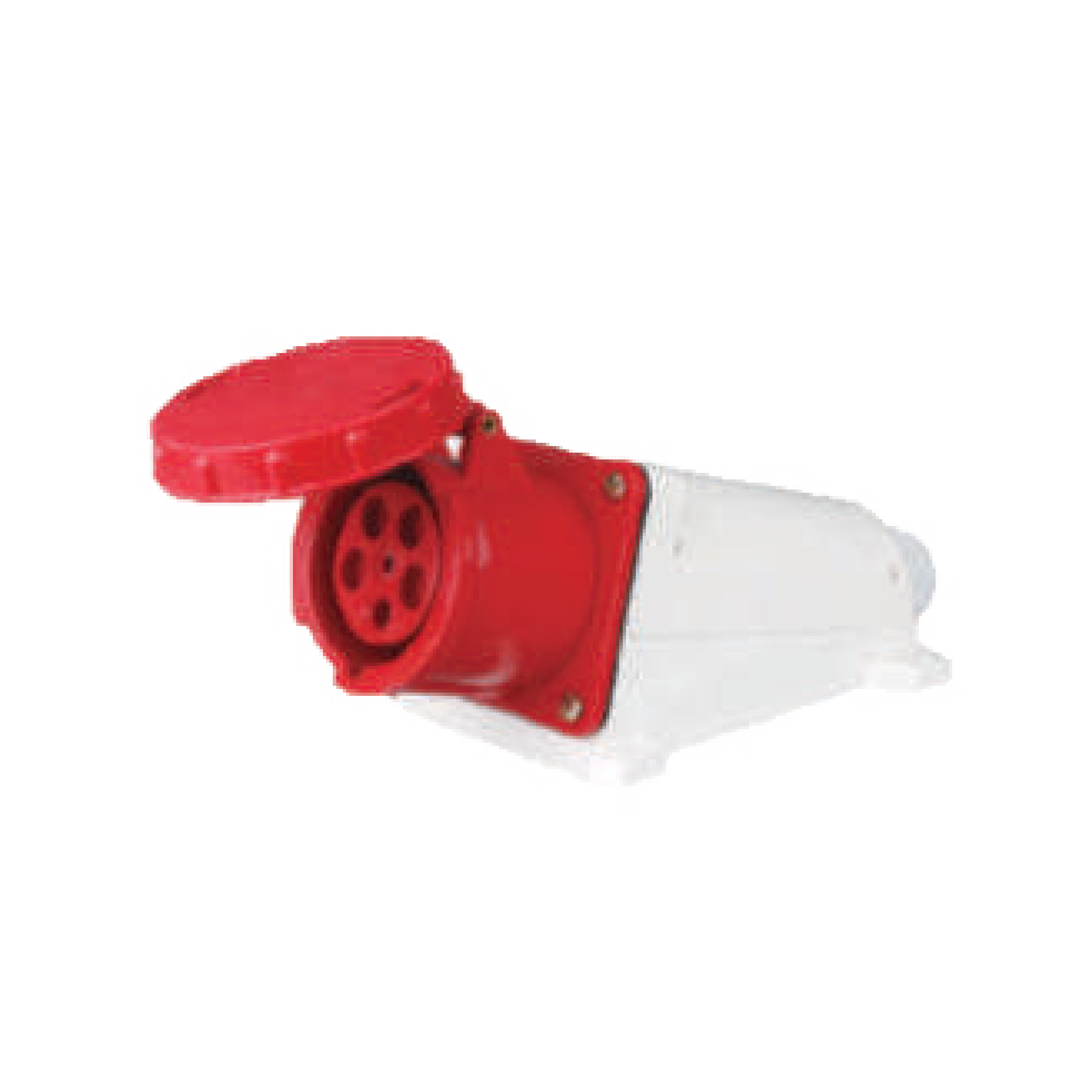

Code KS-115 KS-125
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - 115 KS - 125
a 100 109
b 71 71
c 131 152
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

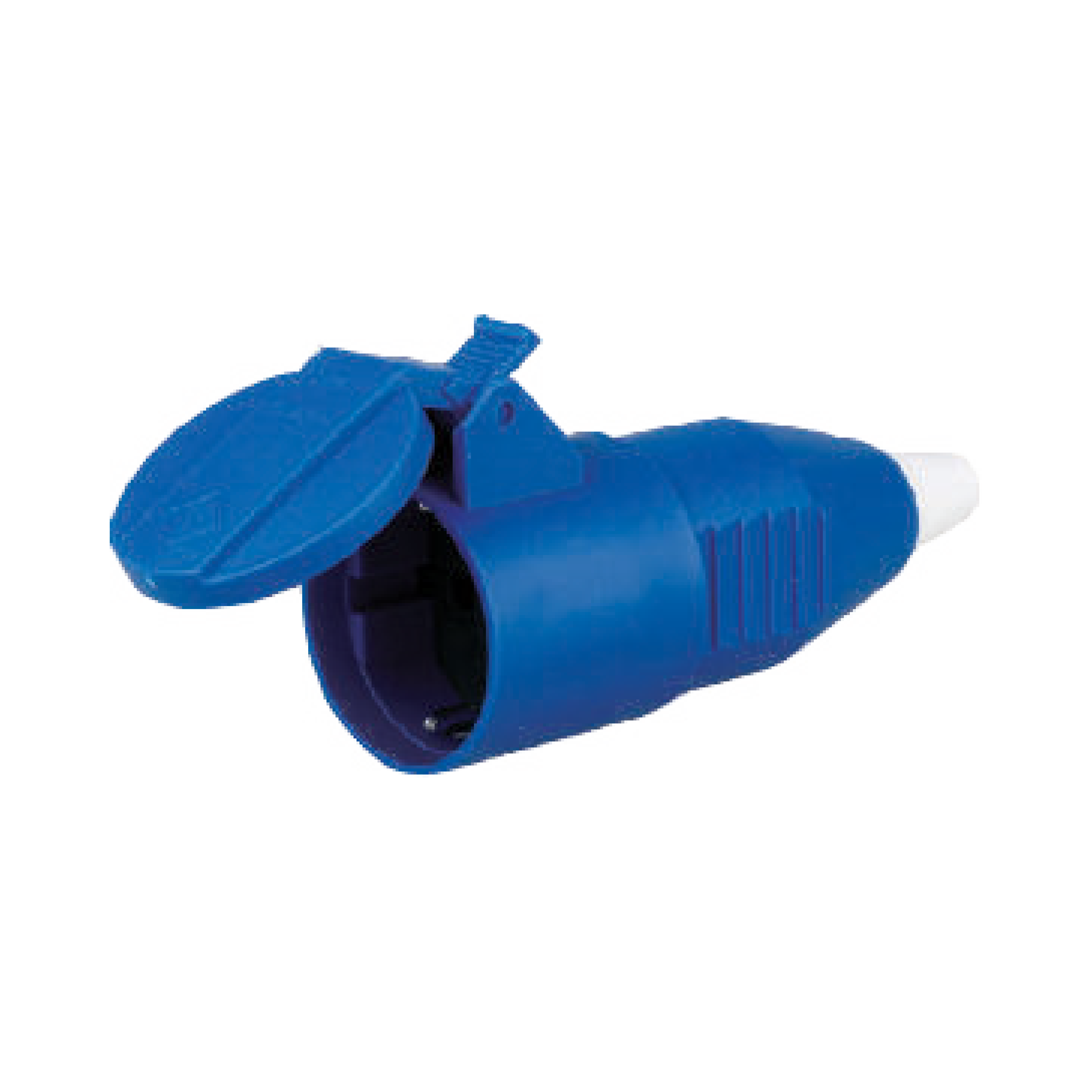

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler
Code KS - 212
Normal current 16A
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS - 212
a 72
b 48
c 123
Cable nominal cross section area 1-2.5mm2
Enquire Now

INDUSTRIAL WALL SOCKET

Application Coupler Coupler

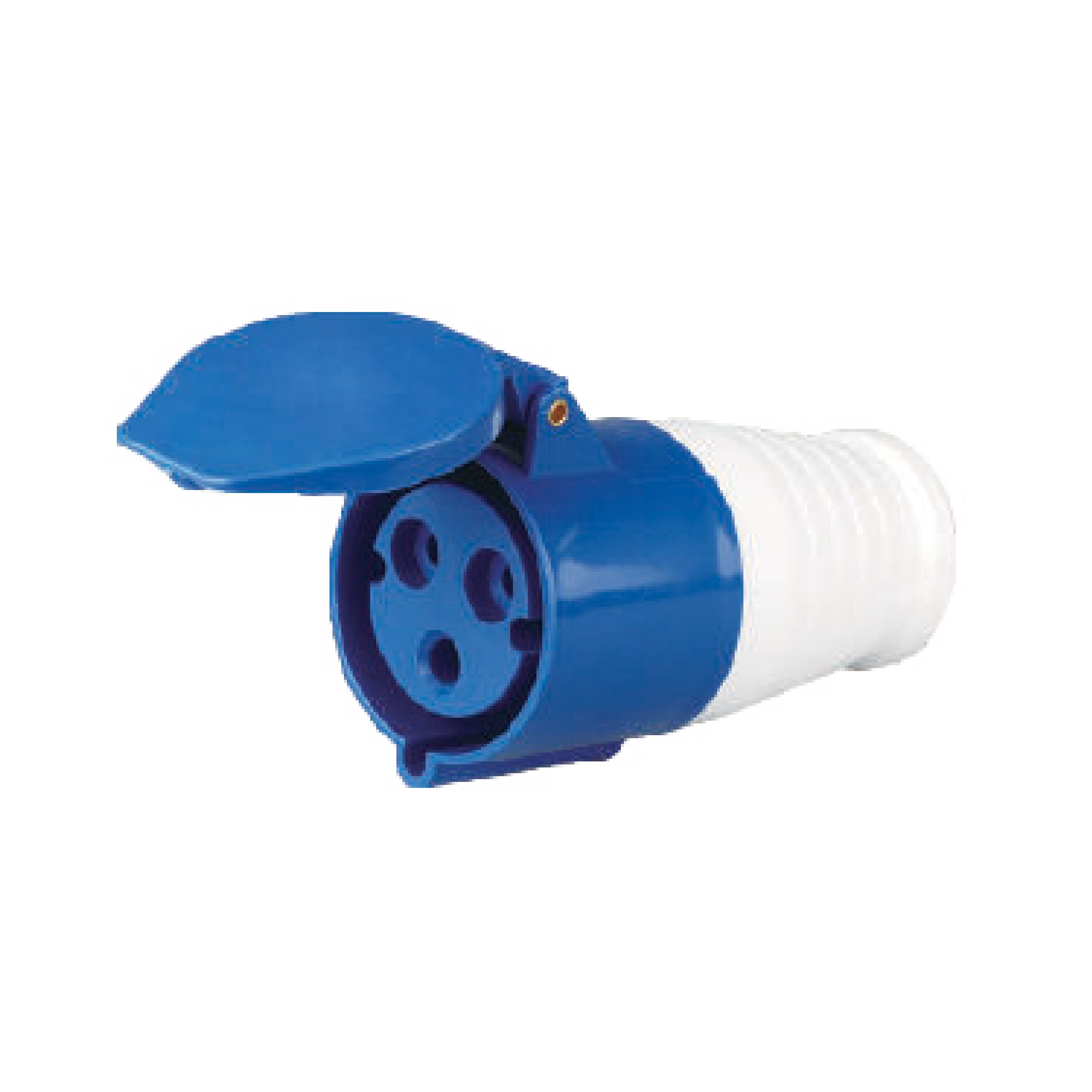

Code KS-213 KS-223
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 213 KS - KS - 223
a 72 92
b 51 64
c 132 146
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

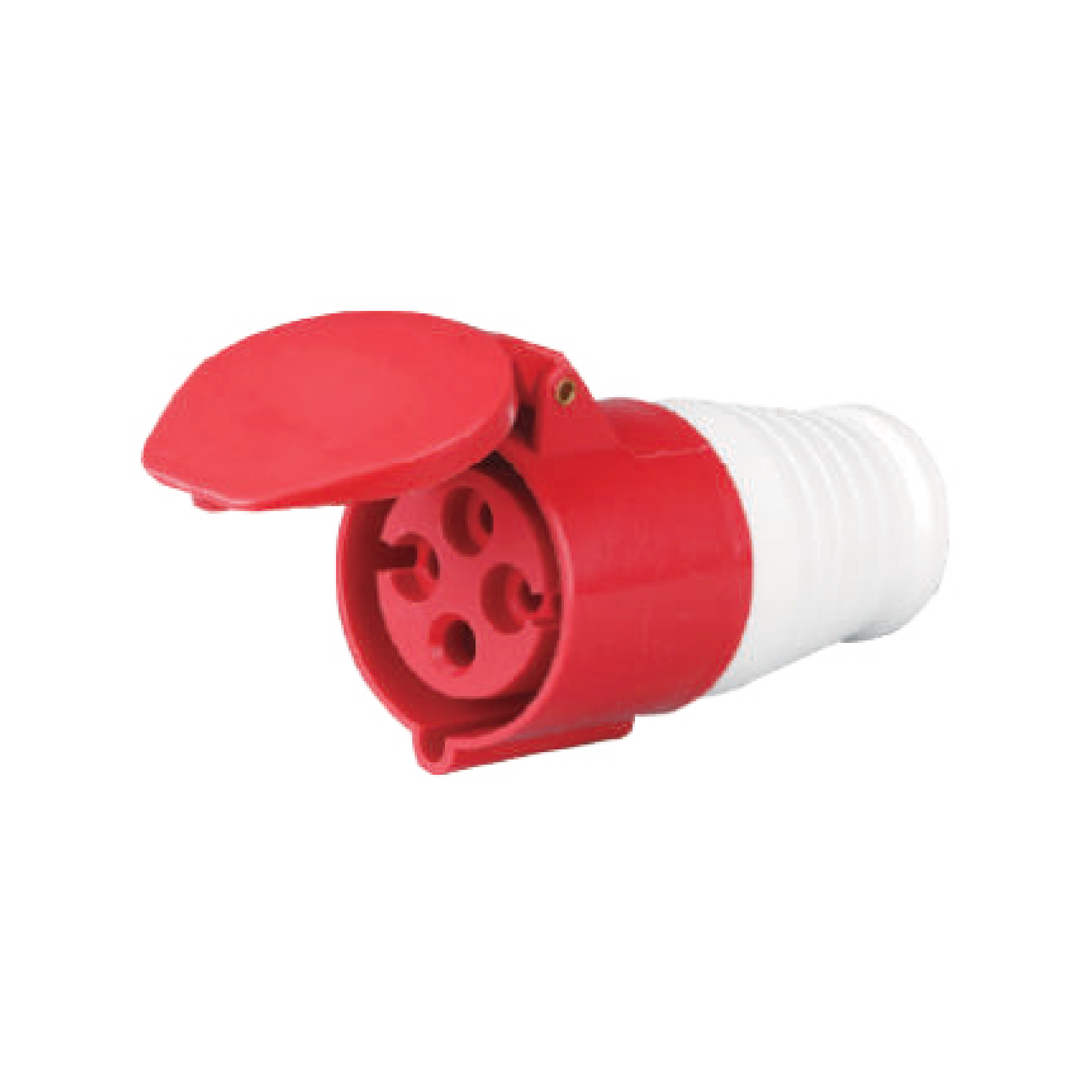

INDUSTRIAL WALL SOCKET

Application Coupler Coupler
Code KS-214 KS-224
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 380-415V~ 380-415V~
No. poles 3P+ 3P+
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 214 KS - KS - 224
a 78 92
b 55 64
c 132 146
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

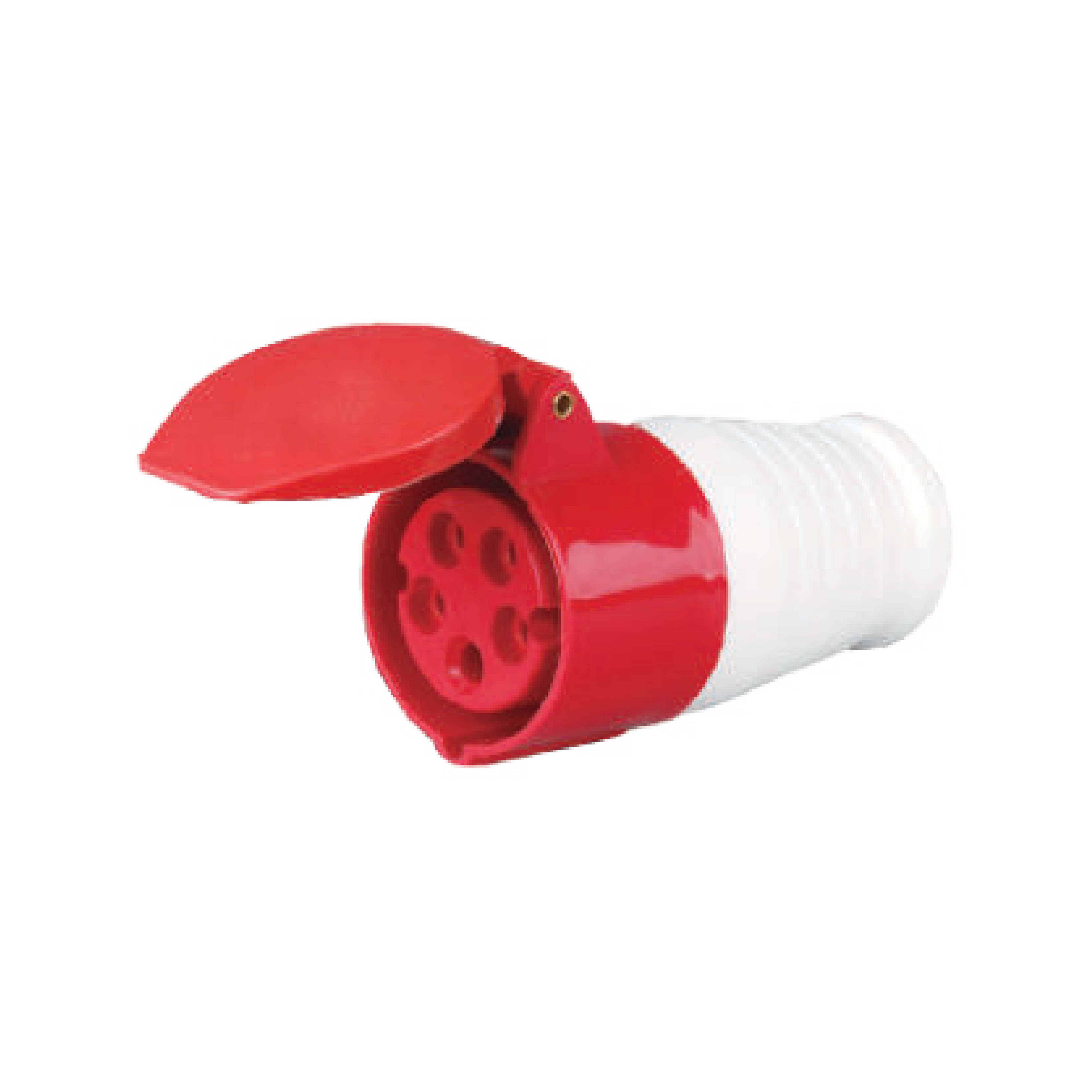

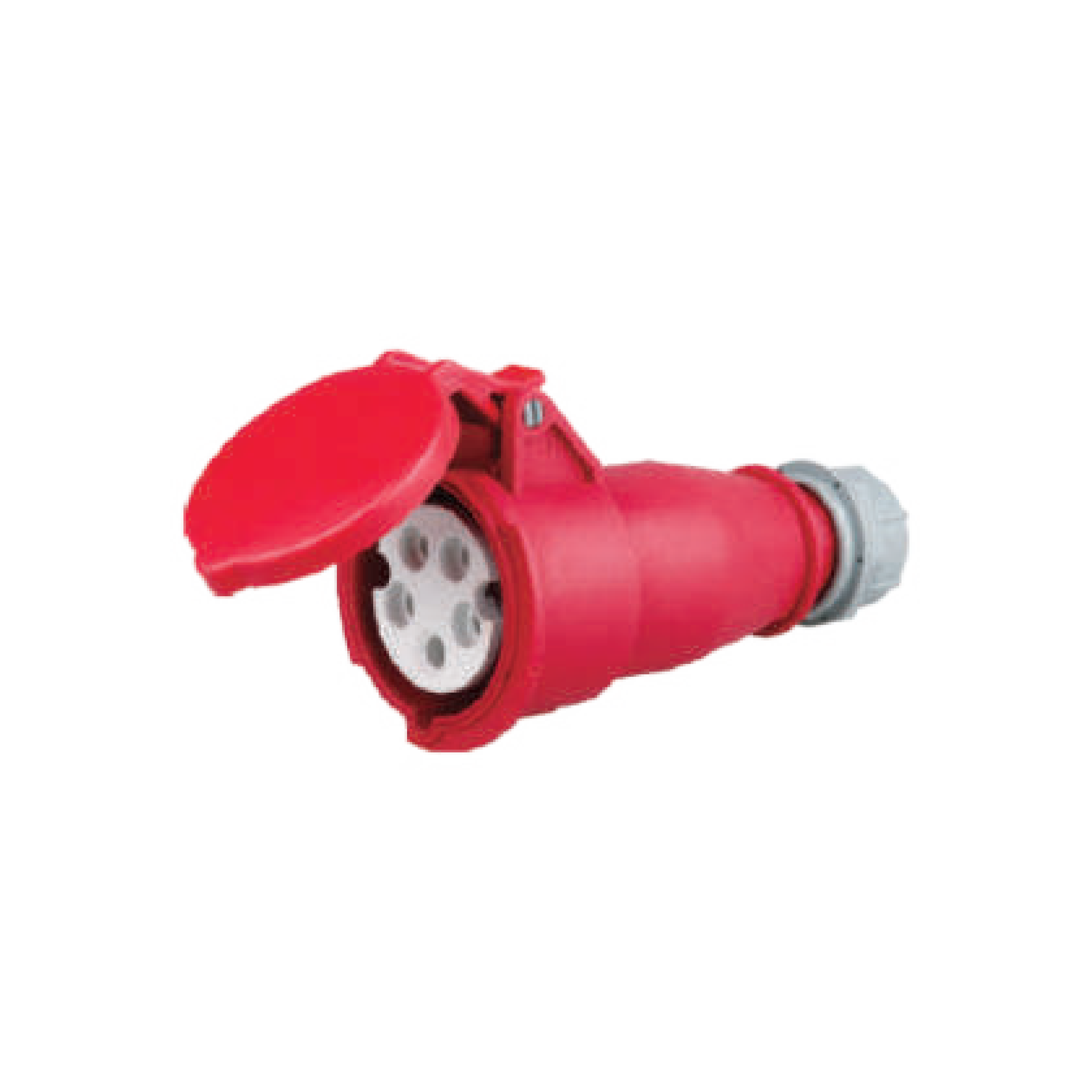

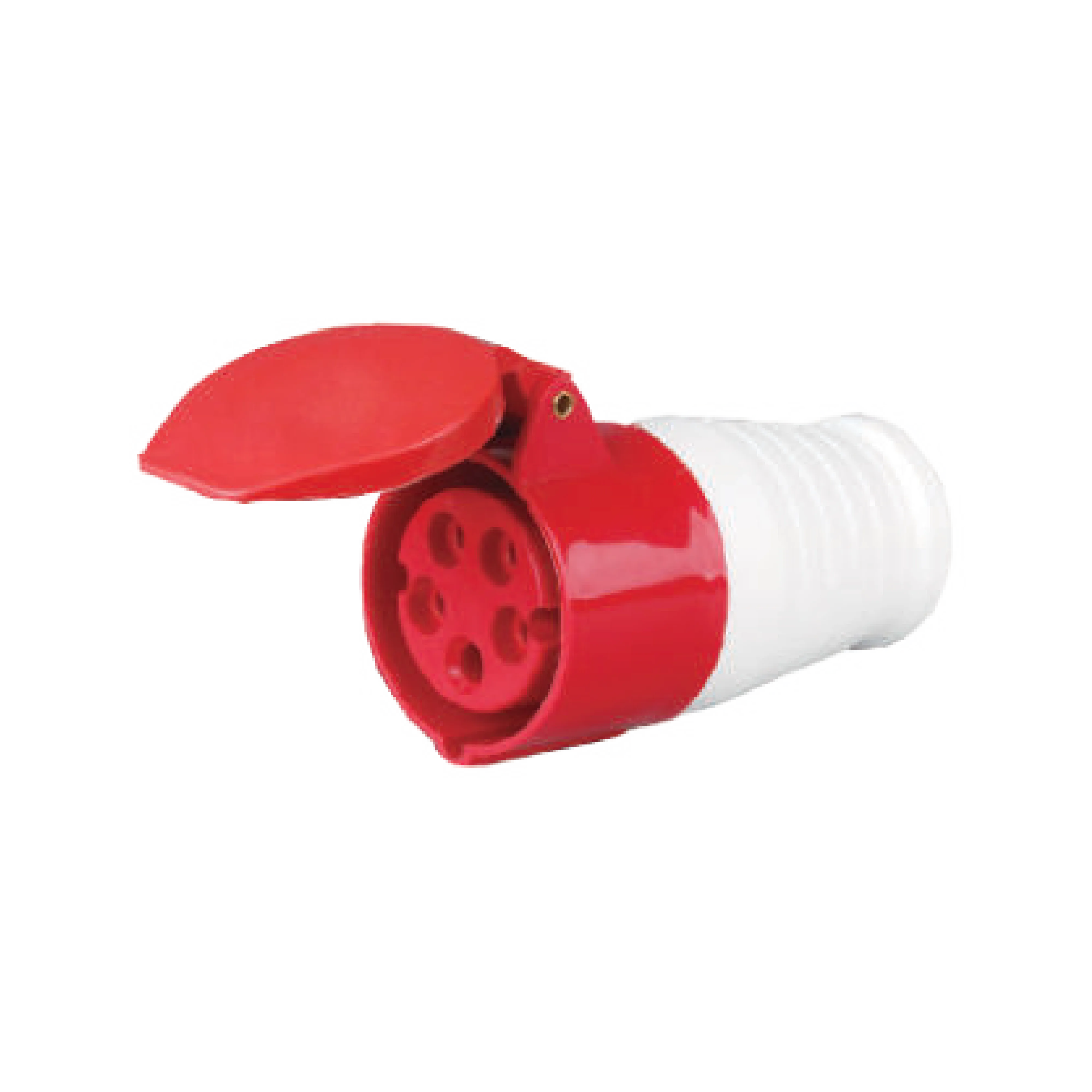

INDUSTRIAL WALL SOCKET

Application Coupler Coupler
Code KS-215 KS-225
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V240-415V 220-380V240-415V
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) / Type KS - KS - 215 KS - KS - 225
a 92 101
b 63 70
c 139 154
Φ 6 8
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

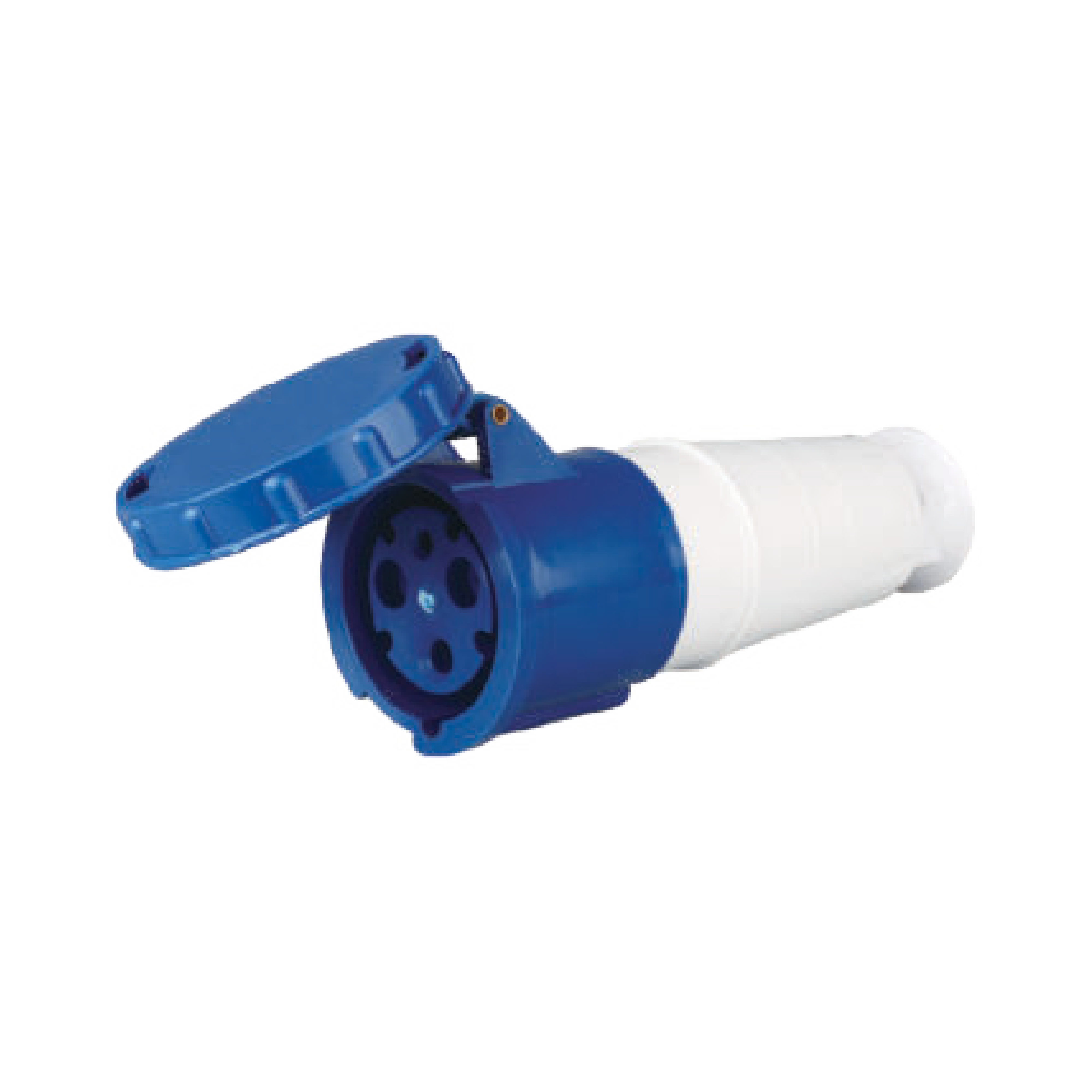

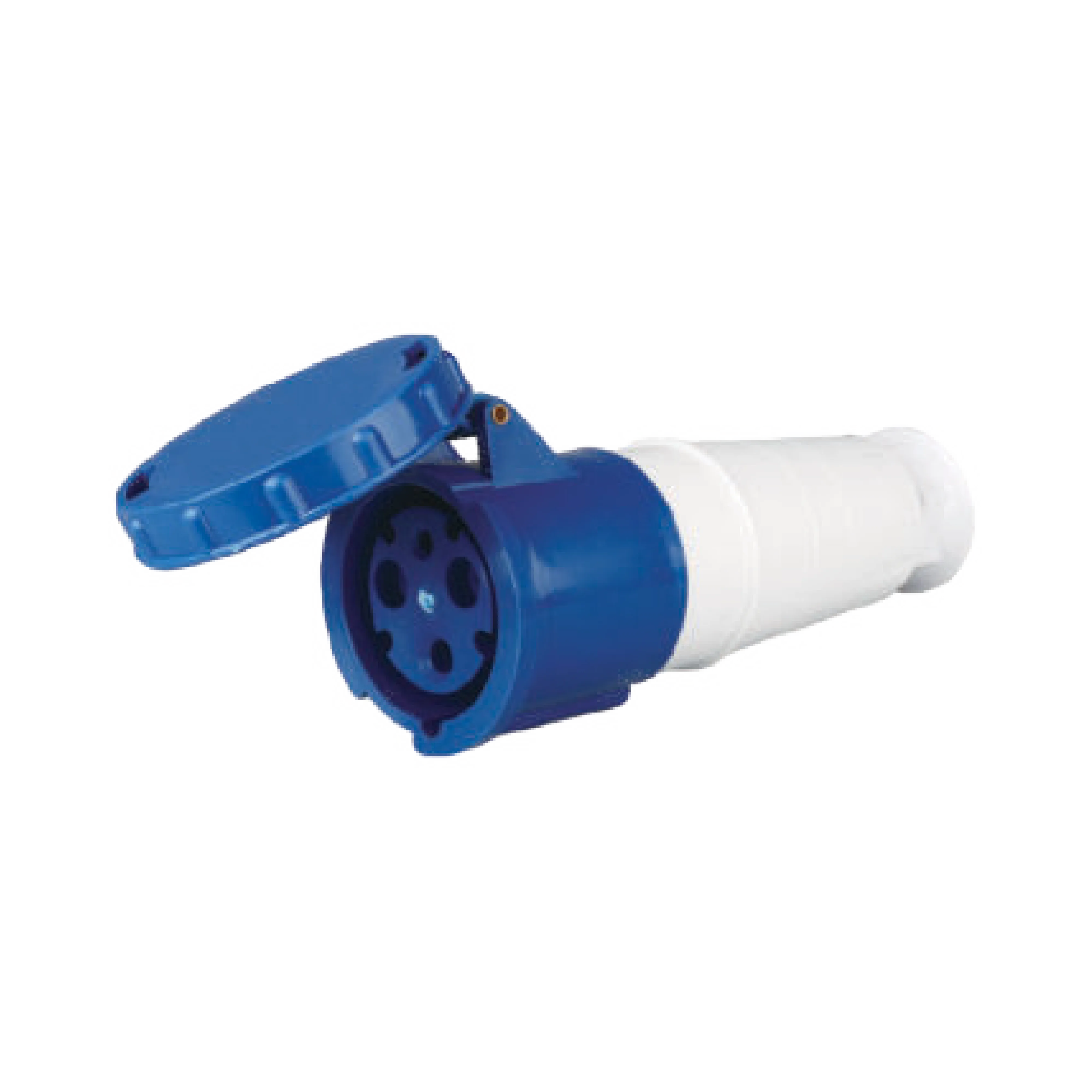

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler Coupler
Code KS - 233 KS - 243
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 233/243
a 116
b 108
c 245
Cable nominal cross section area 6-16mm2
Enquire Now

INDUSTRIAL STRAIGHT SOCKETS

Application Coupler Coupler

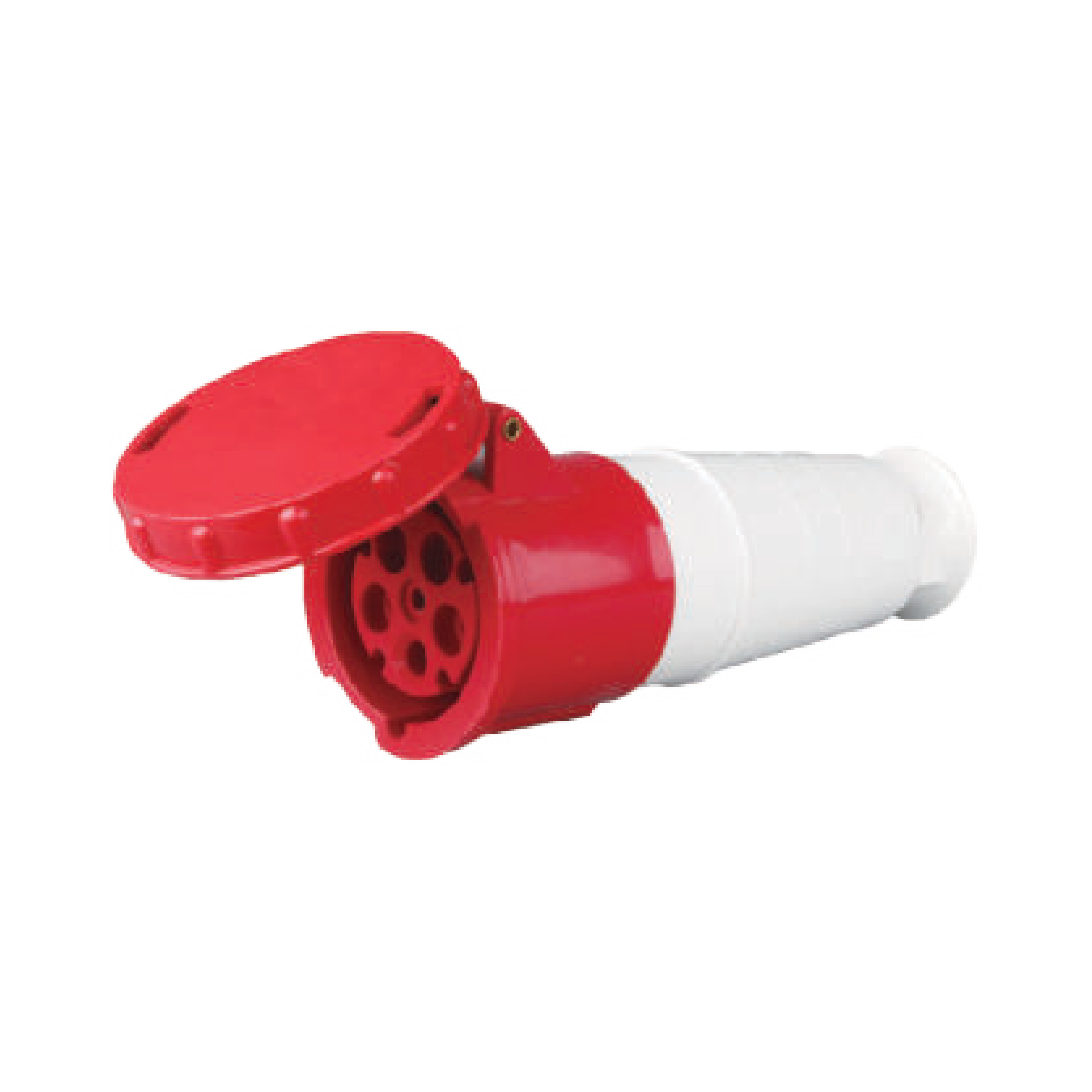

Code KS - 235 KS - 245
Normal current 63A 125A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+ 3P+N+
Protection degree IP67 IP67
Size (mm) / Type KS - 235/245
a 116
b 108
c 245
Cable nominal cross section area 6-16mm2
Enquire Now

INDUSTRIAL PLUG IP 67

Application Plug Plug
Code KS - 0132 KS - 0232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V ~ 220-250V ~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS - 0132 KS - 0232
a 75.5 99
b 47 63
c 7-15 10-20
d 139 175
e 112 130
Cable nominal cross section area 1- 2.5mm2 2.5- 6mm2
Enquire Now

INDUSTRIAL PLUG IP 67

Application Plug Plug
Code KS - 0152 KS - 0252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V ~ /240-415V ~ 220-380V ~ /240-415V ~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS - 0152 KS - 0252
a 92 107
b 60 70
c 8-16 12-22
d 139 170
e 95 124
Cable nominal cross section area 1- 2.5mm2 2.5- 6mm2
Enquire Now

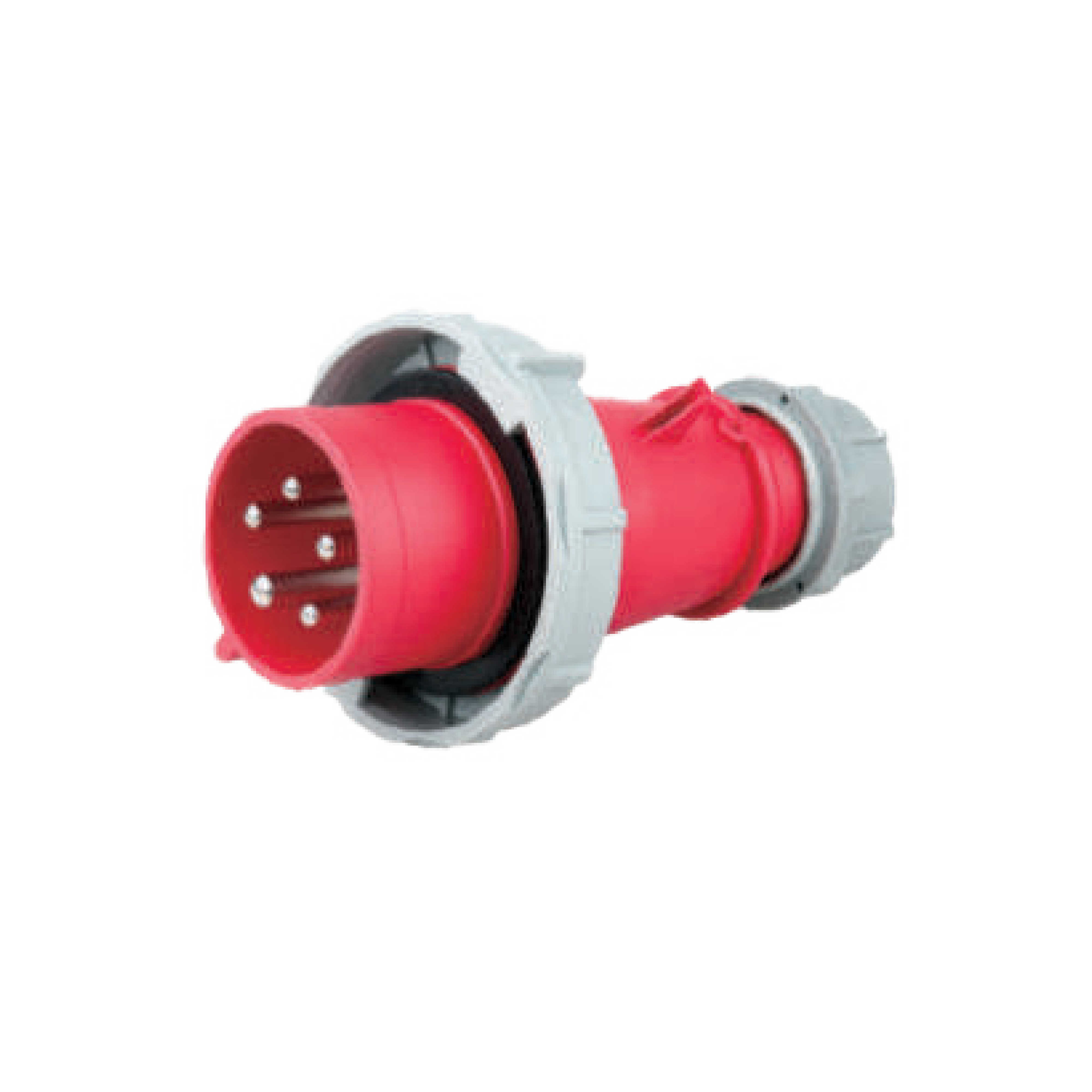

INDUSTRIAL PLUG IP 67

Application Plug
Code KS - 0352
Normal current 63A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS - 0352
a 116
b 75
c 37
d 251
e 187
Cable nominal cross section area 6-16mm2
Enquire Now

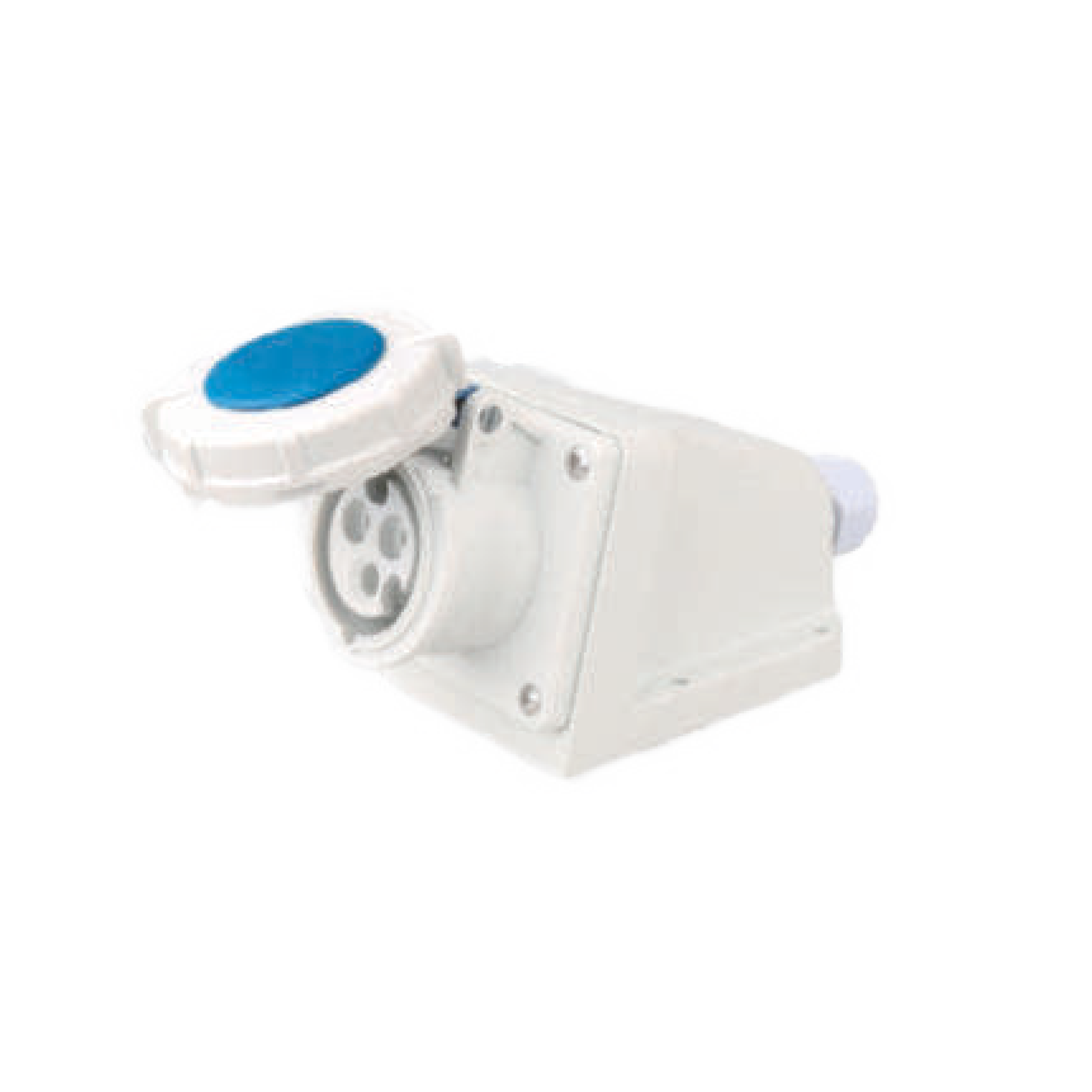

INDUSTRIAL WALL SOCKET IP 67

Application Socket Socket
Code KS-1132 KS-1232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS-1132 KS-1232
a 95 105
b 75 75
c 193 203
Cable nominal cross section area 1-2.5mm 2.5-6mm
Enquire Now

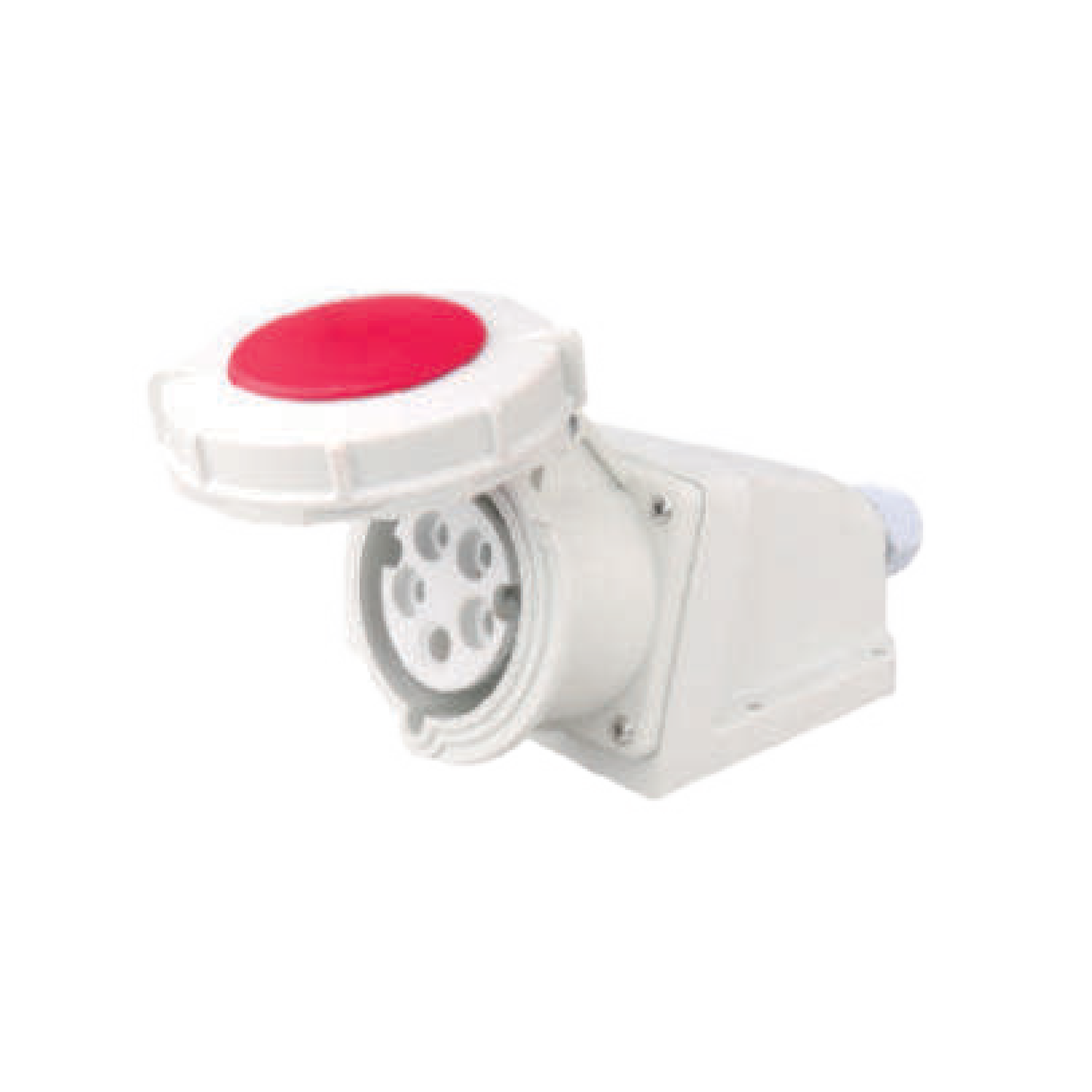

INDUSTRIAL WALL SOCKET IP 67

Application Socket Socket
Code KS-1152 KS-1252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS-1152 KS-1252
a 100 100
b 75 75
c 185 200
Cable nominal cross section area 1-2.5mm 2.5-6mm
Enquire Now

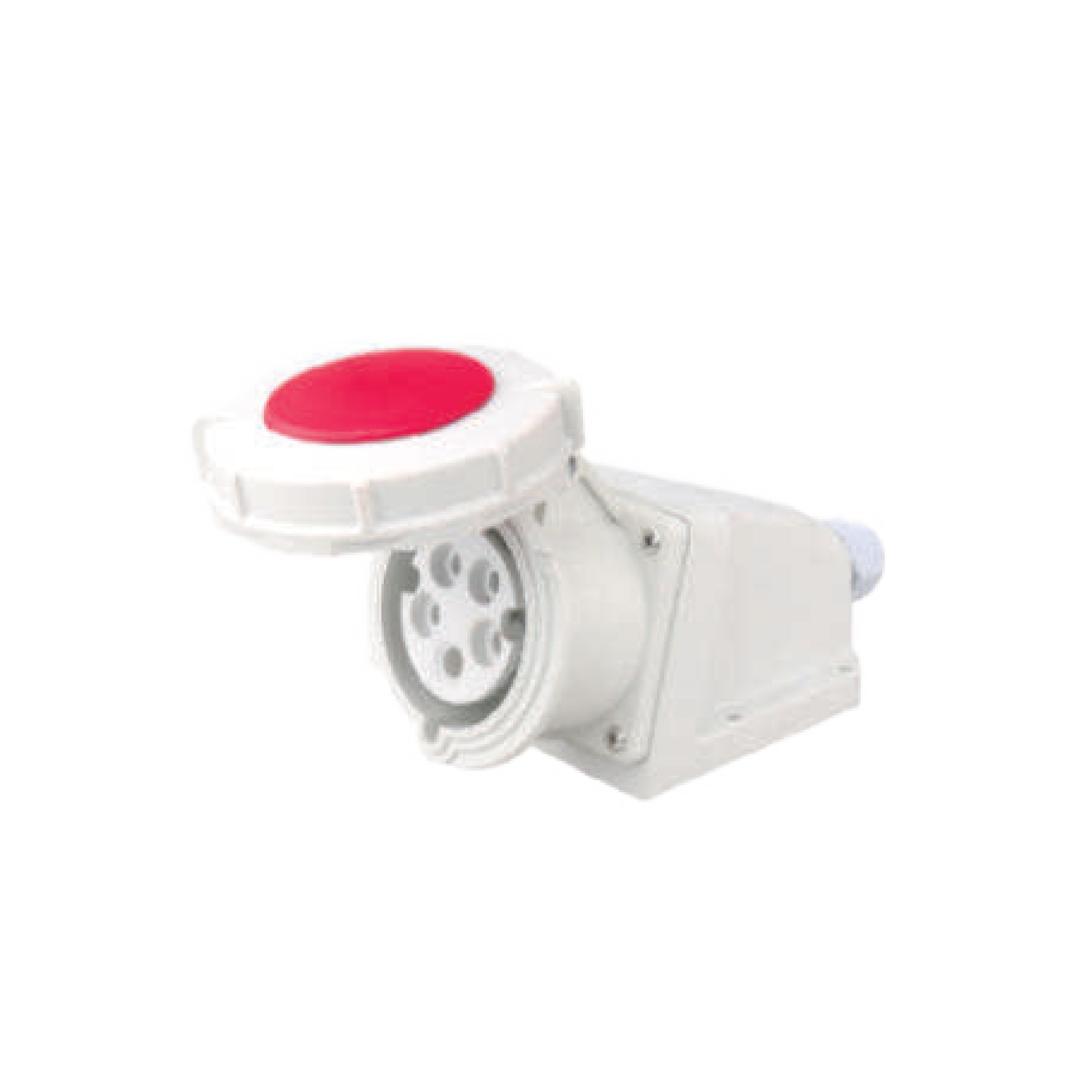

INDUSTRIAL WALL SOCKET IP 67

Application Socket
Code KS-1352
Normal current 63A
Earth Contact Position 6h
Normal voltage
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS-1352
a 130
b 105
c 275
Cable nominal cross section area 10-16mm
Enquire Now

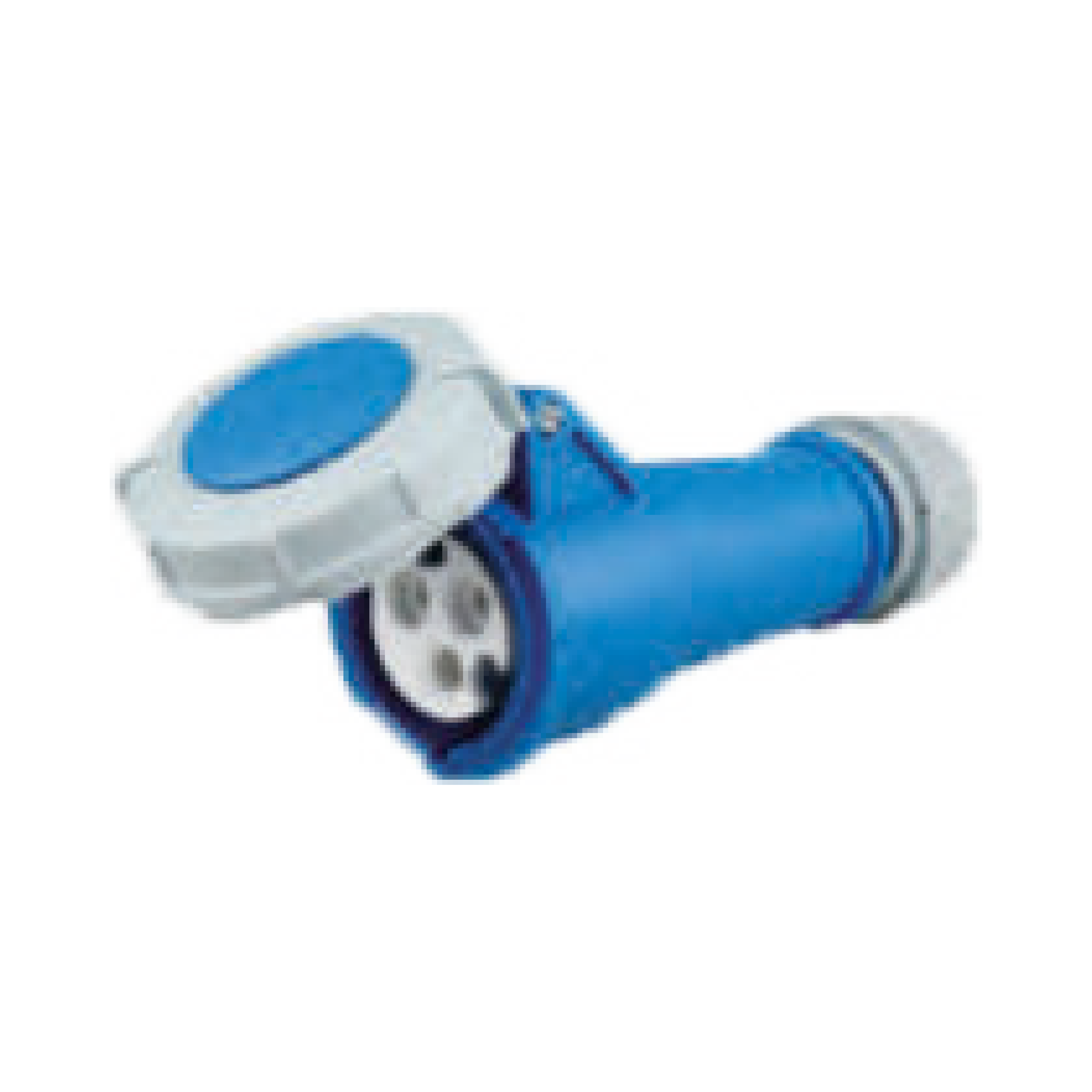

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler Coupler
Code KS-2132 KS-2232
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP67 IP67
Size (mm) / Type KS-2132 KS-2232
a 79 102
b 77 102
c 152 205
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

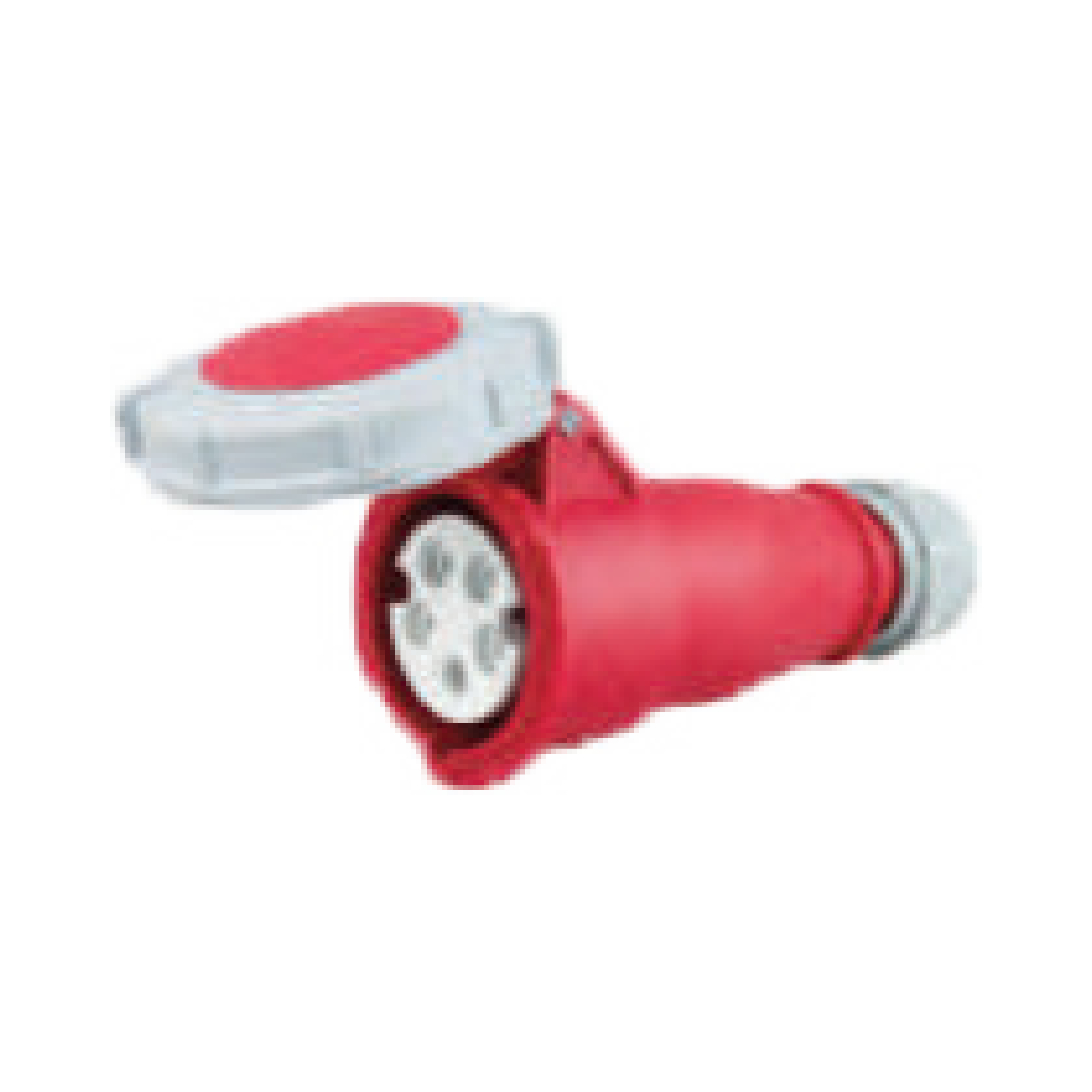

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler Coupler
Code KS-2152 KS-2252
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V ~ /240-415V ~ 220-380V ~ /240-415V ~
No. poles 3P+N+E 3P+N+E
Protection degree IP67 IP67
Size (mm) / Type KS-2152 KS-2252
a 97 109
b 90 103
c 160 210
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

INDUSTRIAL STRAIGHT SOCKET IP 67

Application Coupler

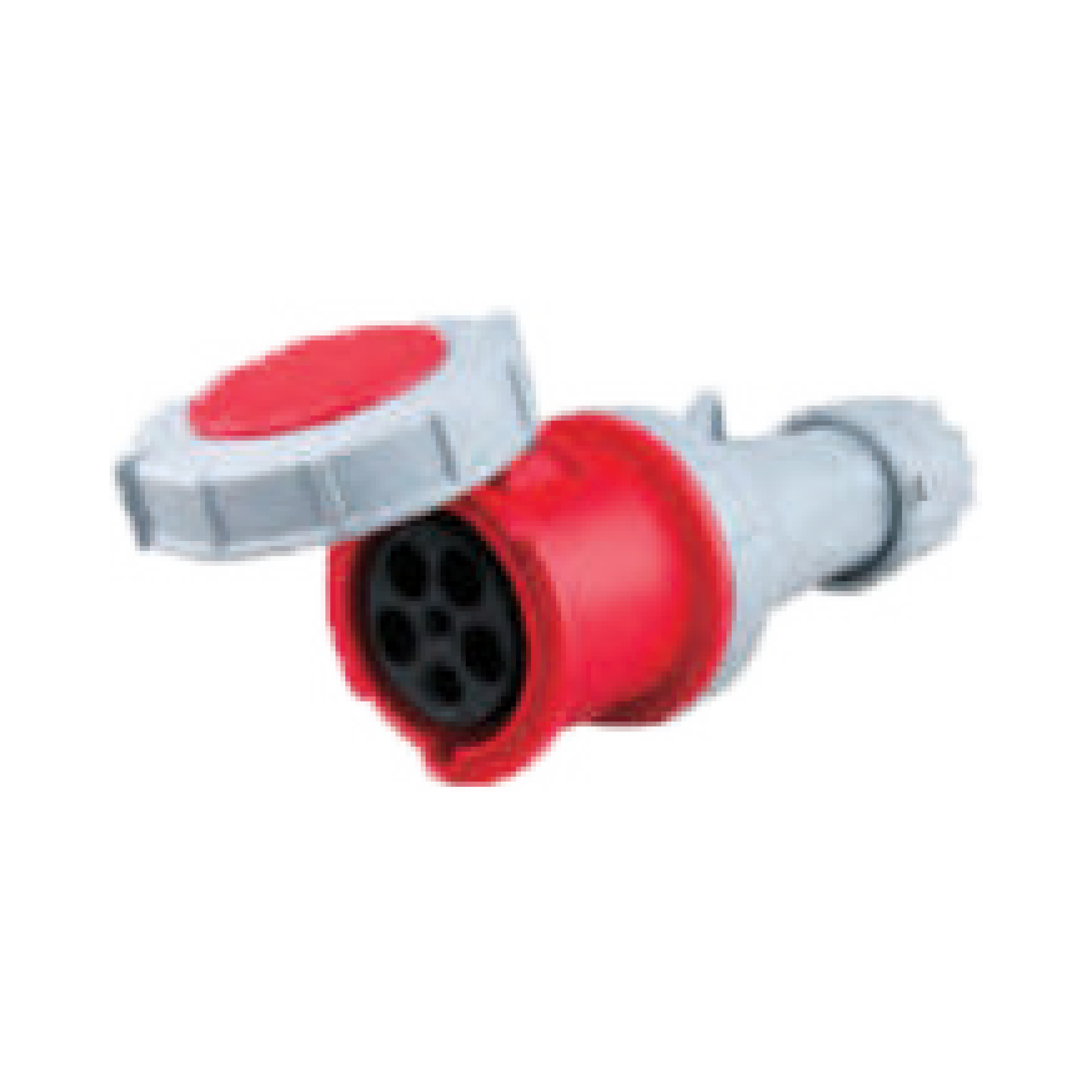

Code KS-2352
Normal current 63A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP67
Size (mm) / Type KS-2352
a 114
b 117
c 37
d 270
Cable nominal cross section area 1-2.5mm2
Enquire Now

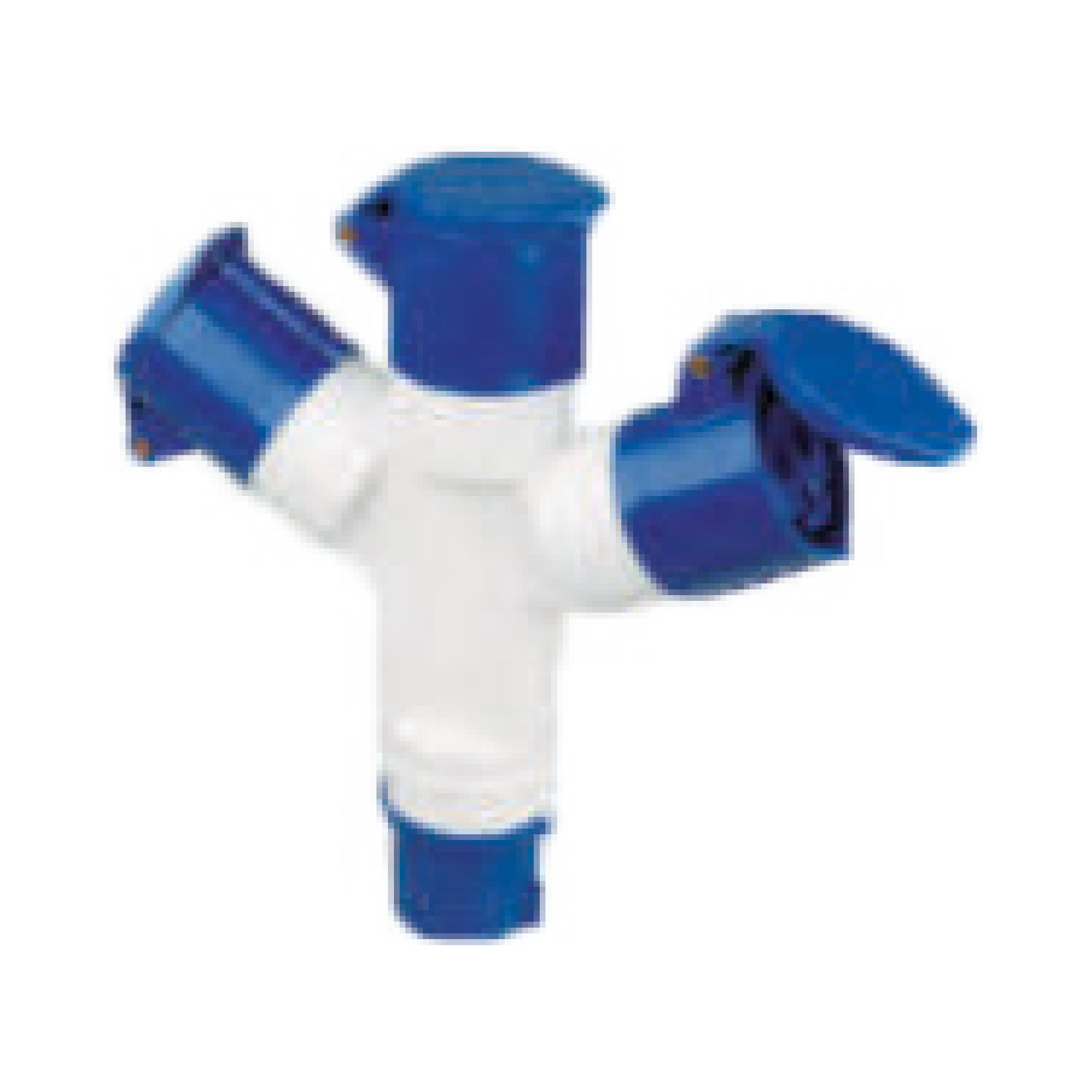

MULTI - FUNCTION PLUG & SOCKET CONNECTOR

Code KS-1013 KS-1023
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-240V~ 220-240V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) KS-2152 KS-2252
a 223 318
b 220 305
Enquire Now

MULTI - FUNCTION PLUG & SOCKET CONNECTOR

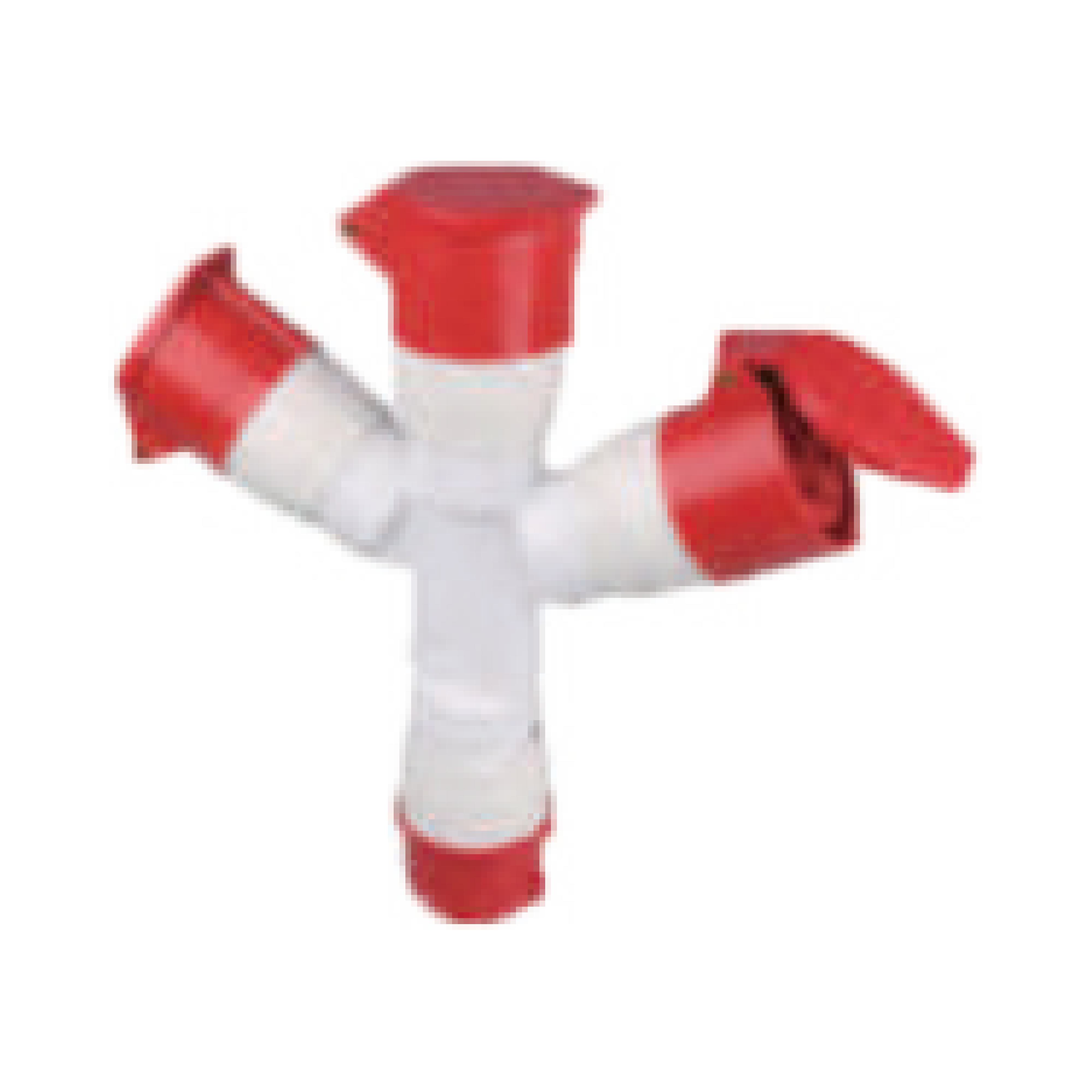

Code KS-1015
Normal current 16A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP44
Size (mm) KS-2352
a 305
b 295
Enquire Now

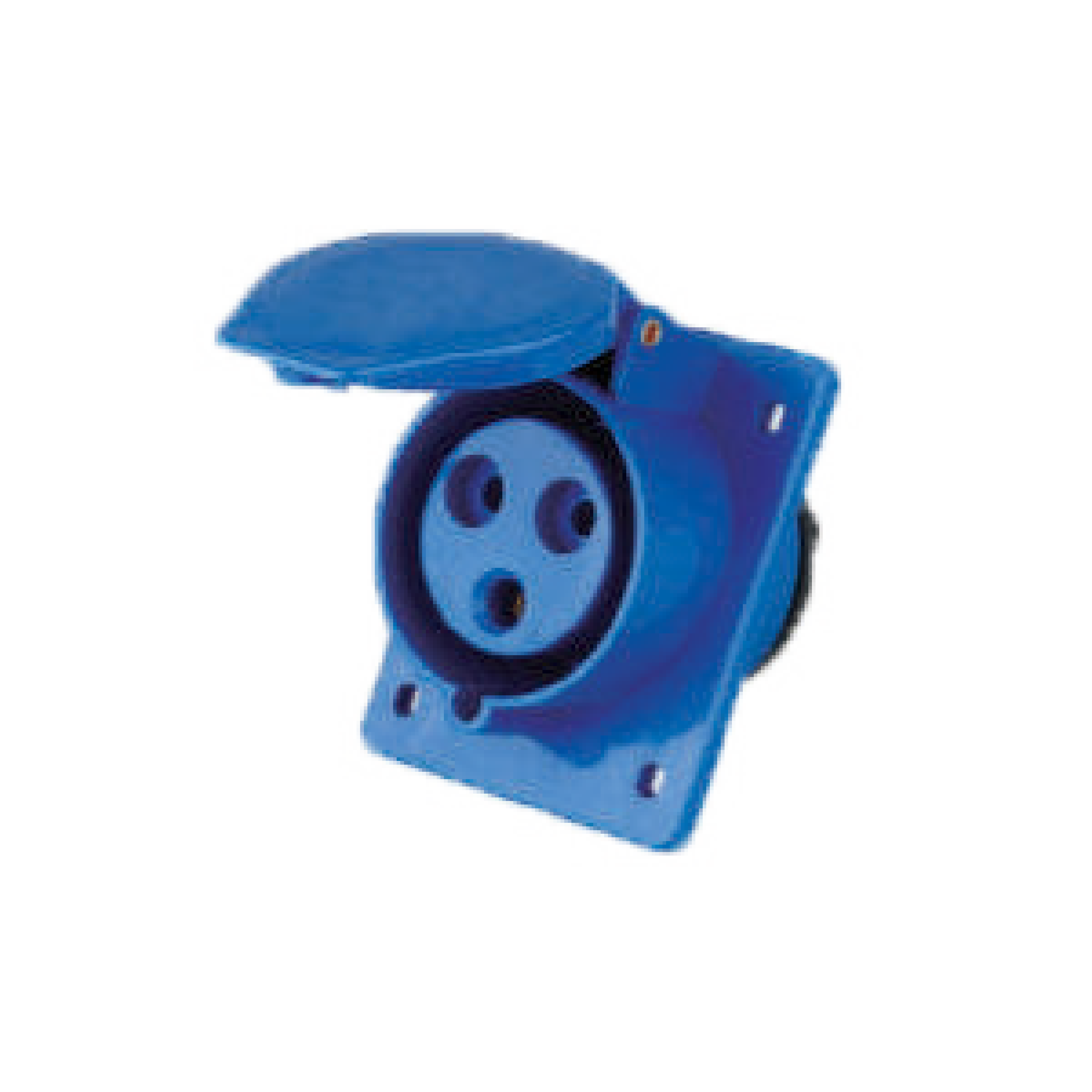

ANGULAR PLUG & SOCKET

Application Socket
Code KS-413
Normal current 16A
Earth Contact Position 6h
Normal voltage 220-250V~
No. poles 2P+E
Protection degree IP44
Size (mm) / Type KS-413
a 74
b 72
c 45
Cable nominal cross section area 1-2.5mm2
Enquire Now

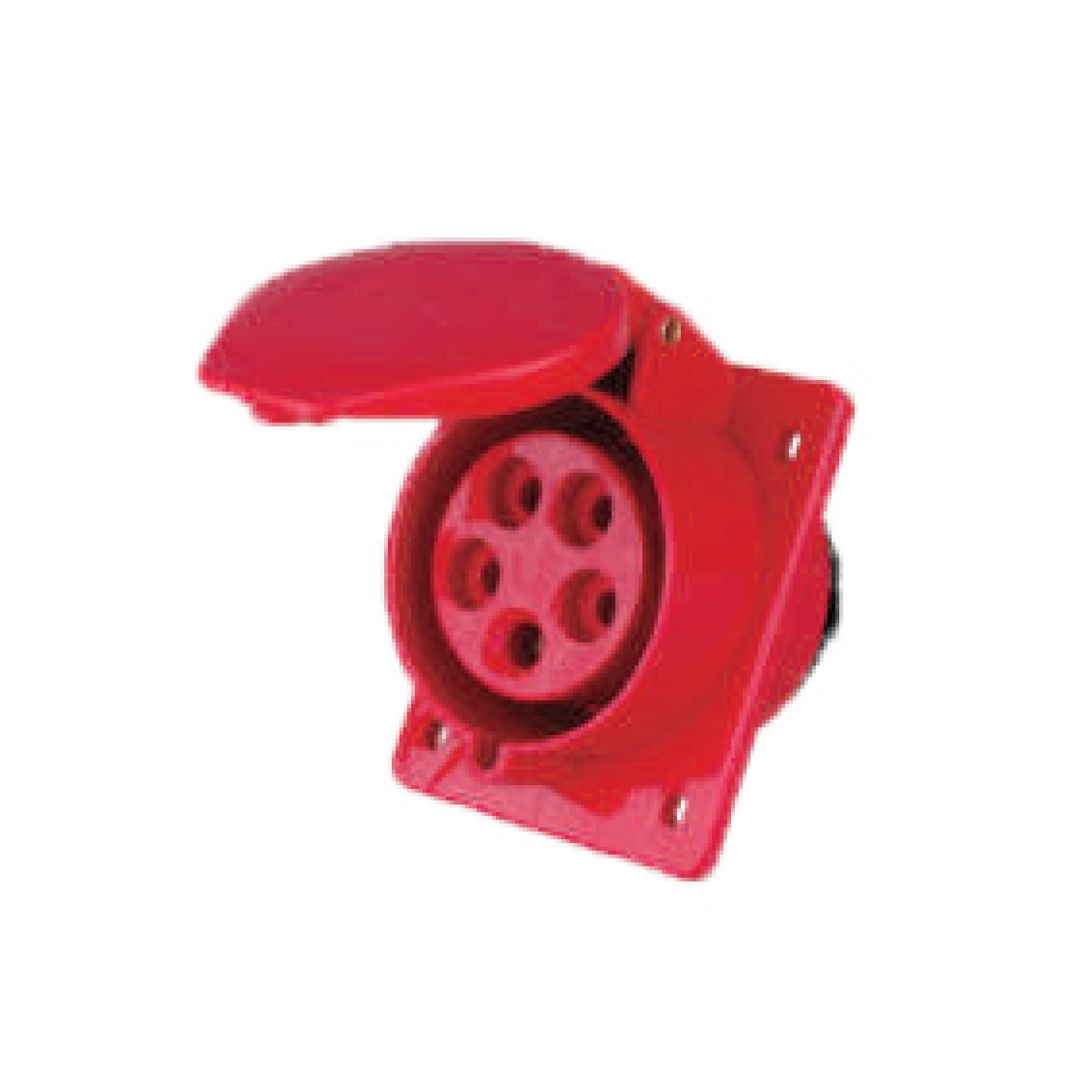

ANGULAR PLUG & SOCKET

Application Socket
Code KS-425
Normal current 32A
Earth Contact Position 6h
Normal voltage 220-380V ~ /240-415V ~
No. poles 3P+N+E
Protection degree IP44
Size (mm) / Type KS-425
a 102
b 95
c 51
Cable nominal cross section area 2.5-6mm2
Enquire Now

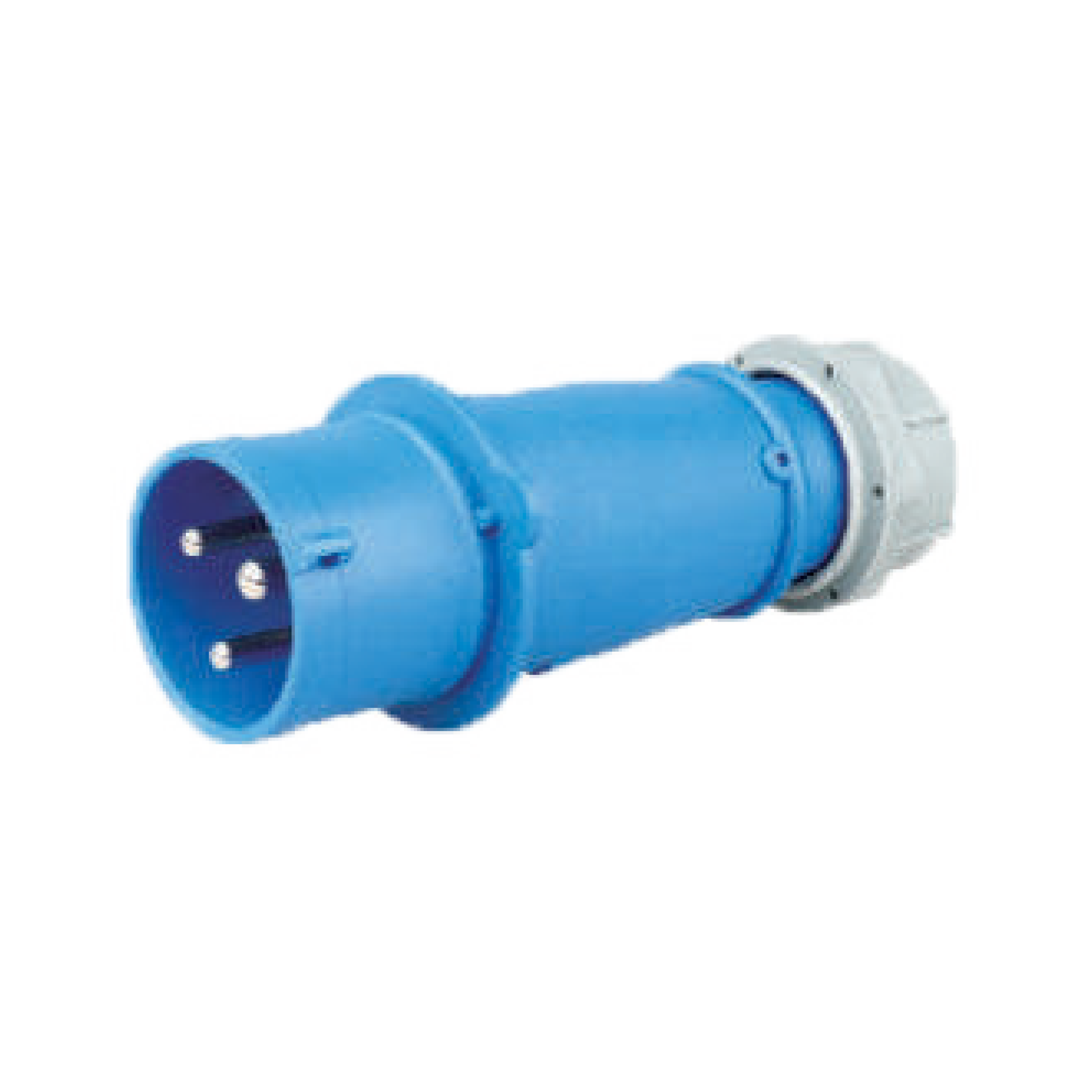

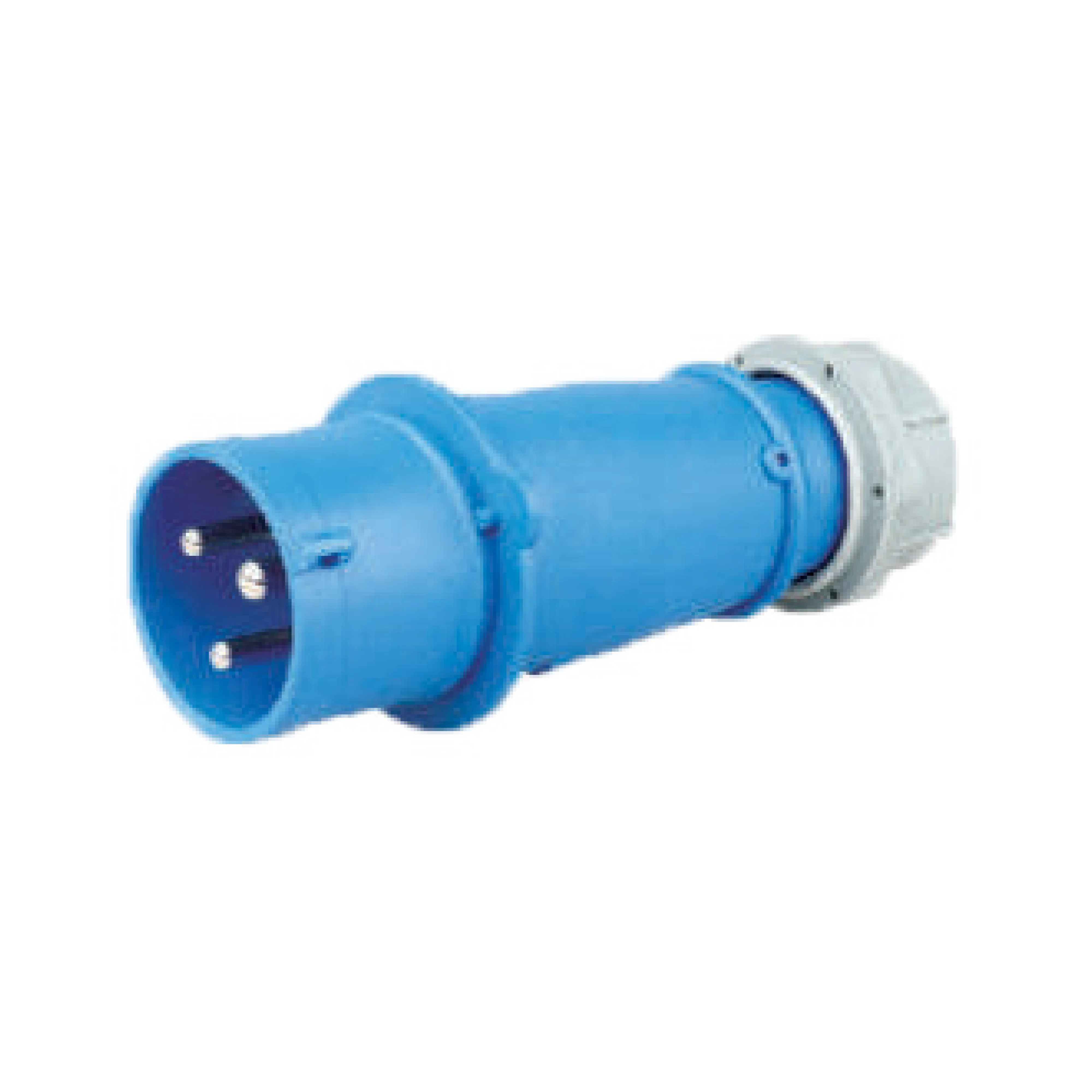

3RD GENERATION INDUSTRIAL PLUG

Application Plug Plug
Code KS-013X KS-015X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) KS-013X KS-015X
a 58 80.7
b 47 63
c 7-15 10-20
d 135 171
e 104 130
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

3RD GENERATION INDUSTRIAL PLUG

Application Plug Plug
Code KS-015X KS-025X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP44 IP44
Size (mm) KS-015X KS-025X
a 75 89
b 60 70
c 8-16 12-22
d 145 178
e 112 132
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

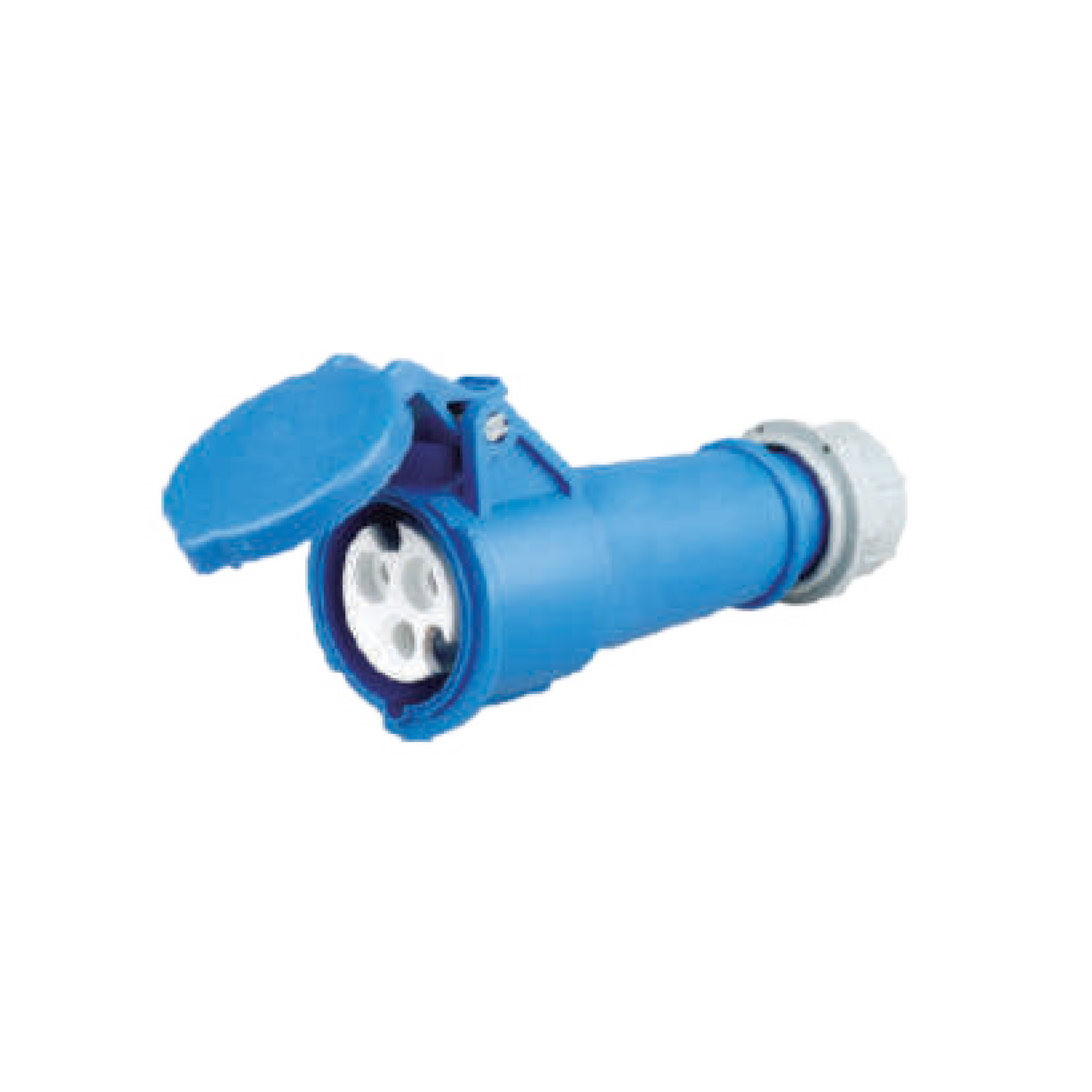

3RD GENERATION INDUSTRIAL STRAIGHT SOCKET

Application Coupler Coupler
Code KS-213X KS-223X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250V~ 220-250V~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS-213X KS-223X
a 83 102
b 60 82.5
c 155 195
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

3RD GENERATION INDUSTRIAL STRAIGHT SOCKET

Application Coupler Coupler
Code KS-215X KS-225X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP-44 IP-44
Size (mm) / Type KS-215X KS-225X
a 100 110
b 76 90
c 160 200
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

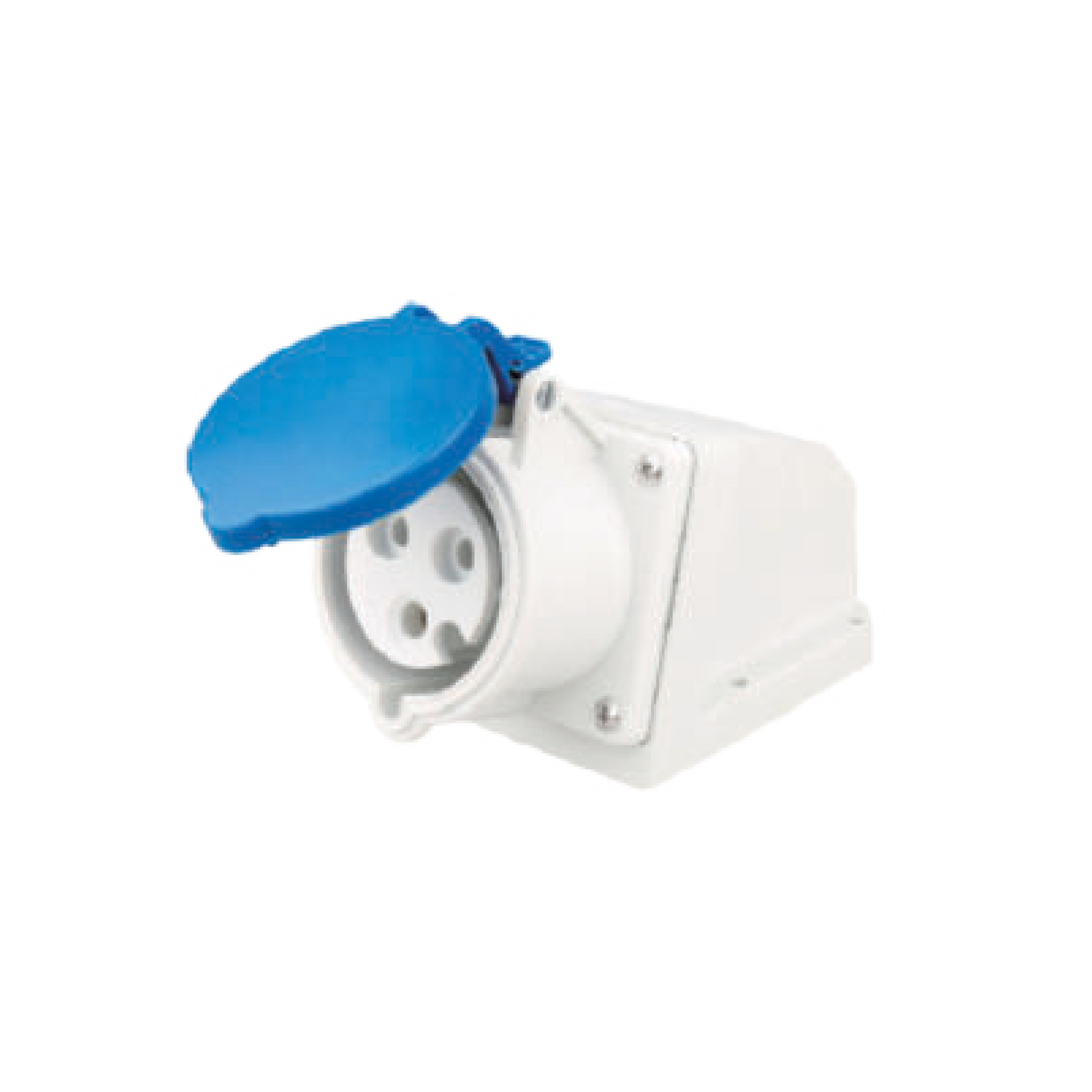

3RD GENERATION INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-113X KS-123X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-250v~ 220-250v~
No. poles 2P+E 2P+E
Protection degree IP44 IP44
Size (mm) / Type KS-113X KS-123X
a 104 114
b 80 80
c 181 192
Cable nominal cross section area 1-2.5mm2 2.5-6mm2
Enquire Now

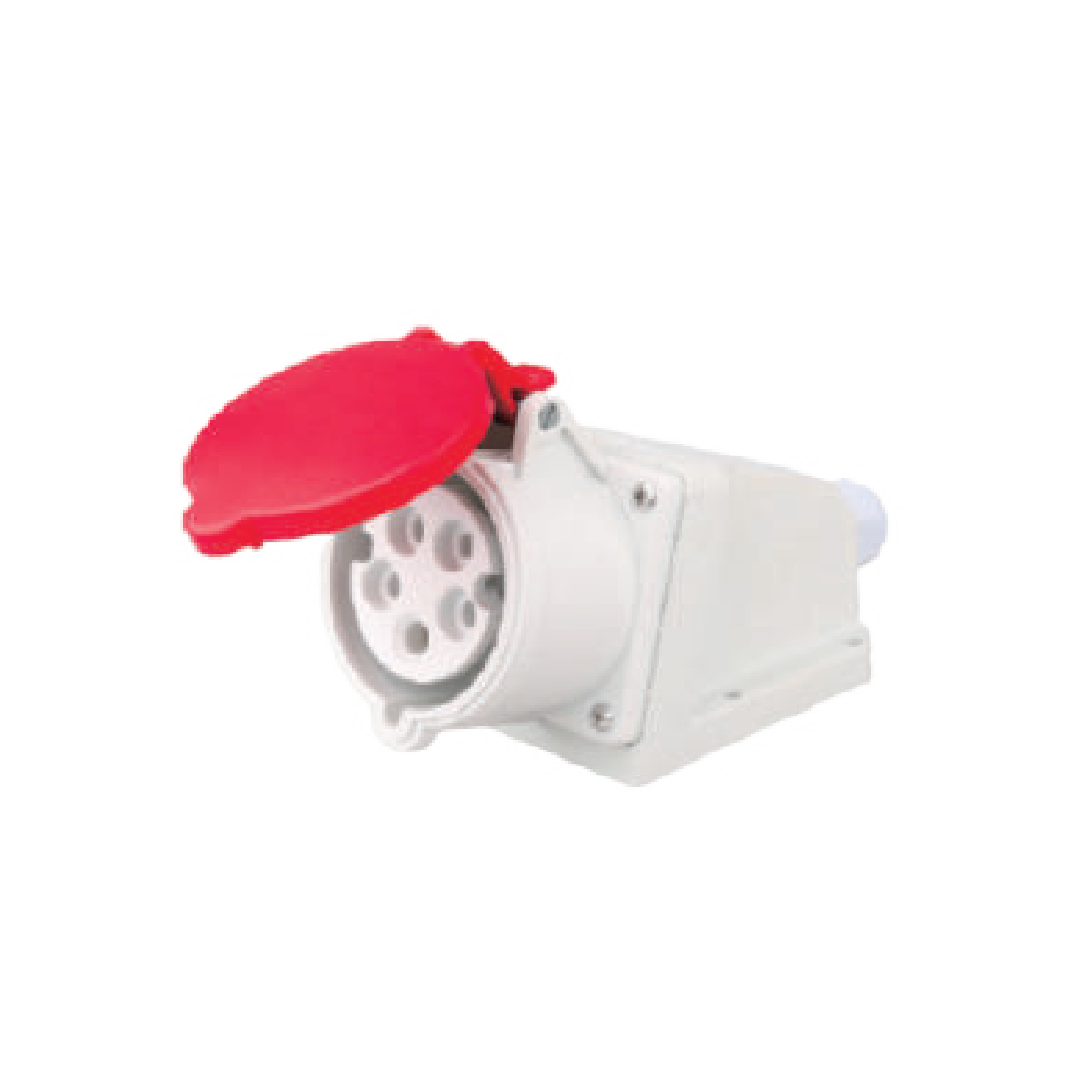

3RD GENERATION INDUSTRIAL WALL SOCKET

Application Socket Socket
Code KS-115X KS-125X
Normal current 16A 32A
Earth Contact Position 6h 6h
Normal voltage 220-380V~/240-415V~ 220-380V~/240-415V~
No. poles 3P+N+E 3P+N+E
Protection degree IP-44 IP-44
Size (mm) / Type KS-113X KS-123X
a 104 114
b 80 80
c 181 192
Cable nominal cross section area 1-2.5mm2 2.5-6mm2

We at "CHINTAN CORPORATION” are recognized as the foremost trader and supplier a wide range of Elmex Terminals, Hex Cable lugs and Glands, Shavison smps and relay cards, Kosmos make Panel Accessories, Solar Product, Surelock make cable ties. The offered products are widely used in various industries for Tools.

Useful Links

Brands

Copyright © 2024 Chintan Corporation | All Right Reserved. Designed By BDM INFOTECH

Whatsapp
