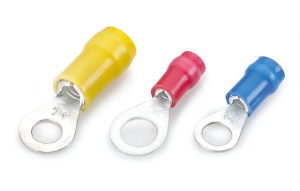

Ring Type Tinned Copper Cable Terminal Ends

Our range of Ring Type Tinned Copper Cable Terminal Ends – Insulated & Non Insulated is manufactured from high conductivity copper and electro-tinned for corrosion resistance. These are available in different sizes to serve different joining techniques such as crimping, soldering and welding.

Enquire Now
Specification

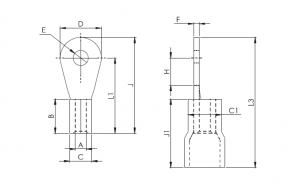

Cable mm2 Stud Hole E Dimensions Non Insulated Dimensions Insulated
A C D F B H L-1 J Prod. Code J - 1 L - 3 C - 1 Prod. Code
1.5 2.2 1.6 3.2 6 0.8 5 4 11 14 HR 7103 10 16 4.8 HRI 7052
2.6 1.6 3.2 6 0.8 5 4 11 14 HR 7000 10 16 4.8 HRI 7053
3.2 1.6 3.2 6 0.8 5 4 11 14 HR 7001 10 16 4.8 HRI 7054
3.7 1.6 3.2 6 0.8 5 4 11 14 HR 7002 10 16 4.8 HRI 7055
4.2 1.6 3.2 6 0.8 5 4 11 14 HR 7003 10 16 4.8 HRI 7056
5.2 1.6 3.2 8 0.8 5 5 12 16 HR 7005 10 17 4.8 HRI 7062
6.4 1.6 3.2 10 0.8 5 6 13 18 HR 7007 10 16 4.8 HRI 7066
2.5 3.2 2.3 3.9 6.5 0.8 5 3.5 9.5 12.7 HR 7107 10 14.5 5.5 HRI 7068
3.7 2.3 3.9 6.5 0.8 5 3.5 9.5 12.7 HR 7008 10 14.5 5.5 HRI 7069
4.2 2.3 3.9 8 0.8 5 5 12 16 HR 7009 10 17 5.5 HRI 7071
5.2 2.3 3.9 8 0.8 5 5 12 16 HR 7010 10 17 5.5 HRI 7072
6.4 2.3 3.9 10 0.8 5 7 13 18 HR 7011 10 18 5.5 HRI 7074
8.2 2.3 3.9 12 0.8 5 9 16 22 HR 7013 10 21 5.5 HRI 7077
8.2 2.3 3.9 16 0.8 5 10 17 25 HR 7014 10 22 5.5 HRI 7079
10.2 2.3 3.9 16 0.8 5 10 17 25 HR 7015 10 22 5.5 HRI 7080
12.7 2.3 3.9 18 0.8 5 14 20 29 HR 7047 10 25 5.5 HRI 7082

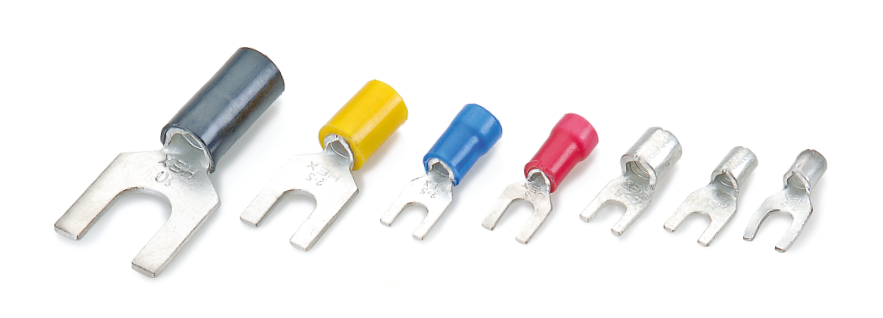

Fork Type Tinned Copper Cable Terminal Ends

FORK TYPE TERMINAL ENDS: This type of terminal ends are mainly used with flexible wires, cords, control cables, control panel/switchboards, contractors etc. according to the requirements. They are made of high conductivity copper and are used for crimping.

Enquire Now
Specification

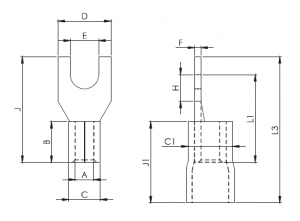

Cable mm2 Stud Hole E Dimensions Non Insulated Dimensions Insulated
A C D F B H L-1 J Prod. Code J - 1 L - 3 C - 1 Prod. Code
1.5 5.1 1.6 3.2 8 0.8 5 10 21 17 HF 7214 4.8 10 27 HFI 7925
3.5 1.6 3.2 6.8 0.8 4 4.8 13 8.8 HF 7249 4.8 10 20.8 HFI 7926
3 2 2.8 6.2 0.4 5 3.1 13 10.5 HF 7250 4.8 10 20.5 HFI 7927
2.5 3.5 2.3 3.9 6.5 0.8 5 4.3 15 11.8 HF 7251 5.5 10 21.8 HFI 7928
5 2.6 4.6 10.6 1.6 6.2 6.2 21 12.4 HF 7280 5.5 10 20 HFI 7929
4-6 3.1 3.5 5.5 6 1 6 5.5 15 11.5 HF 7252 7.1 14 27.5 HFI 7930
3.5 3.5 5.5 6 1 6 5 15 11 HF 7253 7.1 14 27 HFI 7931
10 6.5 4.5 6.9 16 1.2 8 11 27 19 HF 7254 7.9 16 35 HFI 7932
8.2 4.5 6.9 16 1.2 8 11 27 19 HF 7255 7.9 16 35 HFI 7933

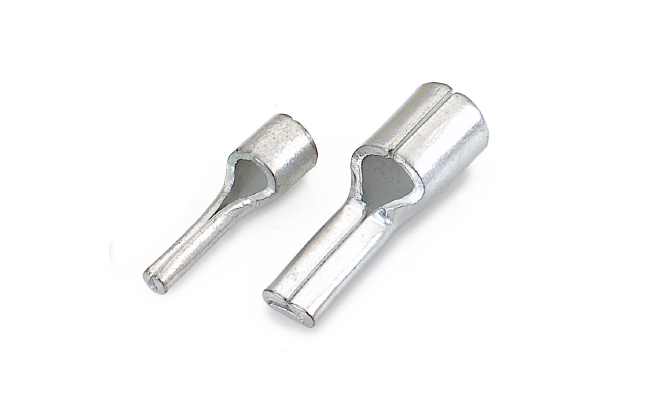

Copper Pin Type Cable Terminal Ends

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

Enquire Now
Specification

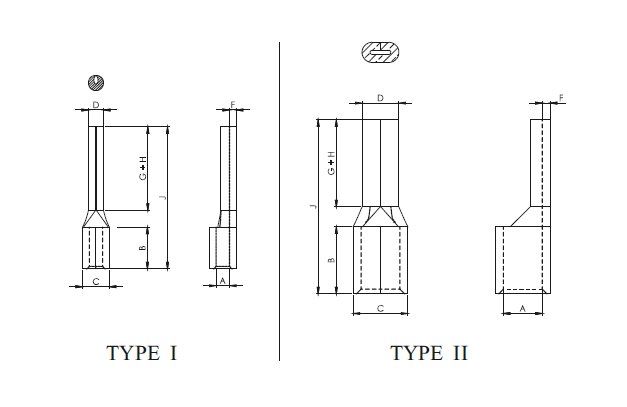

Cable mm2 Stud Hole E Dimensions TYPE Product Code
A C D F B G + H J
1.5 - 1.6 3.2 1.9 0.8 5 10 17 I HP 9
2.5 - 2.3 3.9 1.9 0.8 5 10 17 I HP 1
4 - 2.9 4.9 2.7 1 6 10 20 I HP 3
6 - 3.6 5.6 2.7 1 6 10 20 I HP 5
6 - 4 6 2.7 1 6 10 20 I HP 6
10 2.4 4.5 6.7 4.3 1.1 8 12 22 II HP 7
16 2.6 5.8 8.2 5.5 1.2 10 13 26 II HP 8
25 3.8 7.5 11.1 7.2 1.8 11 15 33 II HP10
35 3.8 9 12.6 8.2 1.8 12 15 33 II HP 11
50 3.8 10.5 14.1 9 1.8 16 17 41 II HP 12
70 4.1 12 16 10 2 16 16 46 II HP 13
95 4.8 13.5 18.1 10 2.3 20 20 51 II HP 14

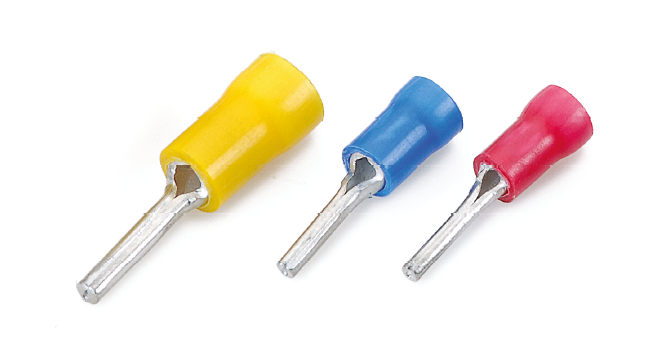

Copper Insulated Pin Type Cable Terminal Ends

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

Enquire Now
Specification

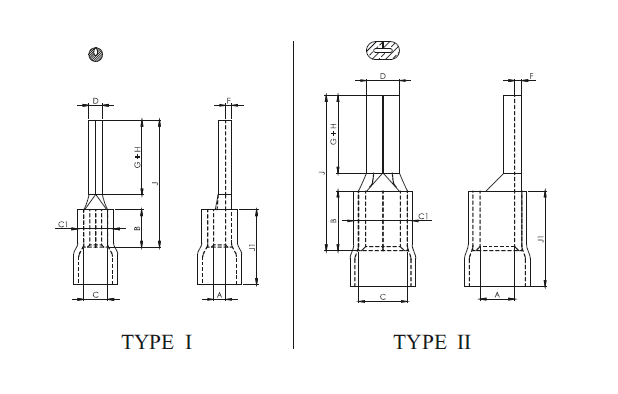

Cable mm2 Stud Hole E Dimensions TYPE Product Code
A C D F B G + H C-1 J-1
1.5 - 1.6 3.2 1.9 0.8 5 10 17 4.8 10 I HPI 17
2.5 - 2.3 3.9 1.9 0.8 5 10 17 5.5 10 I HPI 18
4 - 2.9 4.9 2.7 1 6 10 20 7.1 14 I HP 20
6 - 3.6 5.6 2.7 1 6 10 20 7.1 14 I HP 22
6 - 4 6 2.7 1 6 10 20 7.9 14 I HP 23
10 2.4 4.5 6.7 4.3 1.1 8 12 22 7.9 16 II HP 24
16 2.6 5.8 8.2 5.5 1.2 10 13 26 10 20 II HP 25

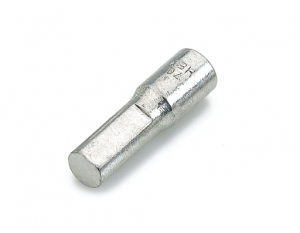

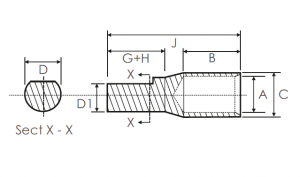

Copper Reducer Pin Type Terminal Ends

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

Enquire Now
Specification
Cable mm2 Dimensions Product Code
A C D D1 B G + H J
2.5 2.5 4.7 3.8 3.3 6 10 20 HPC7
4 2.8 4.7 3.8 3.3 6 10 20 HPC- 16
6 3.1 4.7 3.8 3.3 6 10 20 HPC18
10 3.8 5.5 3.8 3.3 9 10 23 HPC20
16 5.3 7.1 3.8 3.3 12 13 30 HPC2
25 7 9 6 5.5 12 15 32 HPC25
25 7 9 7.5 6.5 12 20 37 HPC3
35 8 10 7.5 6.5 12 20 37 HPC4
50 9.2 11.2 7.5 6.5 16 20 41 HPC26
70 11.5 13.8 7.5 6.5 18 20 43 HPC27
70 11.5 13.8 11.5 10.5 18 25 48 HPC6
70 11.5 13.8 11.5 10.5 18 32 55 HPC28
95 12.8 15.6 11.5 10.5 20 25 51 HPC29
95 12.8 15.6 7.5 6.5 20 22 48 HPC31
95 12.8 15.6 15.6 14 20 27 53 HPC8
120 14.8 17.8 11.5 10.5 22 25 53 HPC32
120 14.8 17.8 7.5 6.5 22 22 50 HPC34
120 14.8 17.8 11.5 10.5 22 32 60 HPC35
150 16 19.6 11.5 10.5 26 32 64 HPC37
185 18 22 11.5 10.5 32 32 70 HPC38
240 22 26 16 15 38 42 88 HPC44
300 24 28.7 16 15 42 42 92 HPC45
400 28 33.2 15.6 14 46 32 90 HPC48

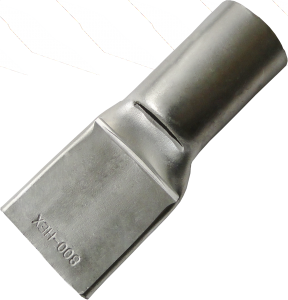

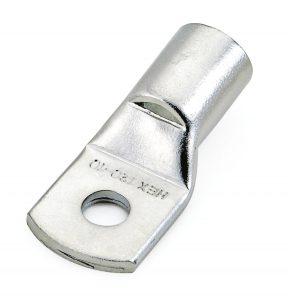

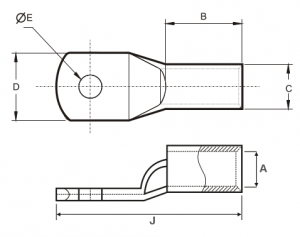

Crimping Type Copper Tubular Cable Terminal Ends

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

Enquire Now
Specification

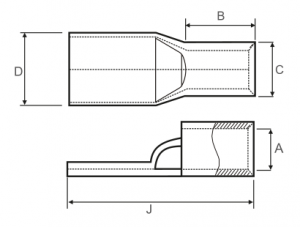

Cable mm2 Stud Hole E Dimensions Product Code
A C D G H B J
1.5 4.2 1.8 3.7 8 4 5 6 17 HT 1.5 - 4
5.2 1.8 3.7 8 4 5 6 17 HT 1.5 - 5
6.5 1.8 3.7 10 4 6 6 18 HT 1.5 - 6
2.5 4.2 2.4 4 8 4 5 8 19 HT2.5 - 4
5.2 2.4 4 8 4 5 8 19 HT2.5 - 5
6.5 2.4 4 10 5 6 8 21 HT2.5 - 6
8.4 2.4 4.2 12 6 9 8 26 HT2.5 - 8
4 4.2 3.1 4.8 10 5 6 8 21 HT4 - 4
5.2 3.1 4.8 10 5 6 8 21 HT4 - 5
6.5 3.1 4.8 10 5 6 8 21 HT4 - 6
8.4 3.1 4.8 12 6 9 8 26 HT4 - 8
6 5.2 3.8 5.5 10 5 6 10 24 HT6 - 5
6.5 3.8 5.5 10 5 6 10 24 HT6 - 6
8.4 3.8 5.5 12 6 9 10 28 HT6 - 8
10.5 3.8 6 15 8 1 10 32 HT6 - 10
10 6.5 4.5 6.2 11 6 7 10 26 HT 10 - 6
8.4 4.5 6.2 12 6 9 10 28 HT 10 - 8
10.5 4.5 6.8 15 8 11 11 33 HT 10 - 10
16 6.5 5.4 7.1 12 7 7 12 30 HT 16 - 6
8.4 5.4 7.1 12 7 7 12 30 HT 16 - 8
10.5 5.4 7.6 15 8 2 12 36 HT 16 - 10
13 5.4 7.6 17 11 3 12 39 HT 16 - 12
20 8.4 6 7.7 12 7 7 12 32 HT 20 - 8
25 6.5 6.8 8.8 13 7 7 12 30 HT 25 - 6
8.4 6.8 8.8 13 7 7 12 30 HT 25 - 8
10.5 6.8 8.8 15 10 11 13 38 HT25 - 10
13 6.8 9.2 17 10 12 15 41 HT25 - 12
35 6.5 8.2 10.6 16 9 9 13.5 37 HT 35 - 6
8.4 8.2 10.6 16 9 9 13.5 37 HT 35 - 8
10.5 8.2 10.6 16 9 9 13.5 37 HT 35 - 10
13 8.2 10.6 18 10 12 13.5 41 HT 35 - 12
17 8.2 10.6 22 14 18 13.5 50 HT 35 - 16
50 8.4 9.5 12.4 18 9 10 17 42 HT 50 - 8
10.5 9.5 12.4 18 9 10 17 42 HT 50 - 10
13 9.5 12.4 20 10 12 17 45 HT 50 - 12
17 9.5 12.4 22 15 15 18 54 HT 50 -16
70 8.4 11.3 14.6 21 11 11 18.5 47 HT 70 - 8
10.5 11.3 14.6 21 11 11 18.5 47 HT 70- 10
13 11.3 14.6 21 11 11 18.5 47 HT 70- 12
14.5 11.3 14.6 22 14 15 18.5 55 HT 70- 14
95 10.5 13.5 17.4 25 12 13 21 53 HT 95 - 10
13 13.5 17.4 25 12 13 21 53 HT 95 - 12
14.5 13.5 17.4 25 14 15 22 55 HT 95 - 14
17 13.5 17.4 25 14 16 22 56 HT 95 - 16
120 13 15 19.4 28 13 14 23 60 HT120 - 12
14.5 15 19.4 28 13 14 23 60 HT120 - 14
17 15 19.4 28 16 16 23 64 HT 120 - 16
150 13 16.5 21.2 30 16 16 27 70 HT 150 - 12
14.5 16.5 21.2 30 16 16 27 70 HT 150 - 14
17 16.5 21.2 30 16 16 27 70 HT 150 - 16
21 16.5 21.2 30 19 16 27 73 HT150 - 20
185 13 18.5 23.5 34 17 19 32 80 HT 185 - 12
14.5 18.5 23.5 34 17 19 32 80 HT 185 - 14
17 18.5 23.5 34 17 19 32 80 HT 185 - 16
21 18.5 23.5 34 17 19 32 80 HT185 - 20
240 13 21 26.5 38 20 20 37 94 HT 240 - 12
17 21 26.5 38 20 20 37 94 HT 240 - 14
17 21 26.5 38 20 20 37 94 HT 240 - 16
21 21 26.5 38 20 20 37 94 HT 240 - 20
- 21 26.5 38 - - 37 94 HT 240 - BL
300 13 23.5 30 43 22 22 42 102 HT 300 - 12
14.5 23.5 30 43 22 22 42 102 HT 300 - 14
17 23.5 30 43 22 22 42 102 HT 300 - 16
21 23.5 30 43 22 22 42 102 HT 300 - 20
- 23.5 30 43 - - 42 102 HT 300 - BL
400 13 28.5 36.5 52.5 26 26 44 114 HT 400 - 12
14.5 28.5 36.5 52.5 26 26 44 114 HT 400 - 14
17 28.5 36.5 52.5 26 26 44 114 HT 400 - 16
21 28.5 36.5 52.5 26 26 44 114 HT 400 - 20
- 28.5 36.5 52.5 - - 44 114 HT 400 - BL
500 17 30 39 56 28 28 48 121 HT 500 - 16
21 30 39 56 28 28 48 121 HT 500 - 20
- 30 39 56 - - 48 121 HT 500 - BL
630 14.7 35 45 63.8 33 33 60 144 HT 630 - 16
17 35 45 63.8 33 33 60 144 HT 630 - 20
21 35 45 63.8 - - 60 144 HT 630 - BL
800 - 39 50.6 72 - - 78 170 HT 800 - BL
1000 - 43 56.2 78.5 - - 90 200 HT 1000-BL

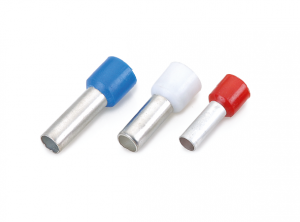

Insulated End - Sealing Ferrules

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

Enquire Now
Specification

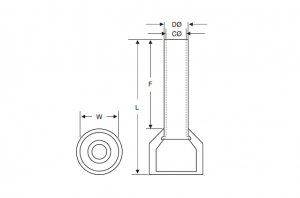

Colour of Insulation Cable mm2 Dimensions Product Code
F L W D C
White 0.5 6 12 2.6 1.3 1 HE0506
8 14 HE0508
10 16.4 HE0510
12 18.4 HE0512
Blue 0.75 6 12.4 2.8 1.5 1.2 HE7506
8 14.4 HE7508
10 16.4 HE7510
12 18.4 HE7512
Red 1 8 12 3 1.7 1.4 HE100
10 14 HE1008
12 16 HE1010
18 18 HE1012
Black 1.5 8 14.6 3.5 2 1.7 HE1508
10 16.4 HE1510
12 18.4 HE1512
18 24.4 HE1518
Grey 2.5 8 15.2 4 2.6 2.3 HE2508
10 17.2 HE2510
12 19.2 HE2512
18 25.2 HE2518
Orange 4 9 16.5 4.4 3.2 2.8 HE4009
12 19.5 HE4012
18 25.5 HE4018
Green 6 10 18 6.3 3.9 3.5 HE6010
12 20 HE6012
18 26 HE6018
Brown 10 12 21.5 7.6 4.9 4.5 HE10-12
18 27.5 HE10-18
White 16 12 22.2 8.8 6.2 5.8 HE16-12
18 28.2 HE16-18
Brown 25 16 29 11.2 7.9 7.5 HE25-16
22 35 HE25-22
White 35 16 30 12.7 8.7 8.3 HE35-16
25 39 HE35-25
Olive 50 20 36 15.3 10.9 10.3 HE50-20
25 41 HE50-25
