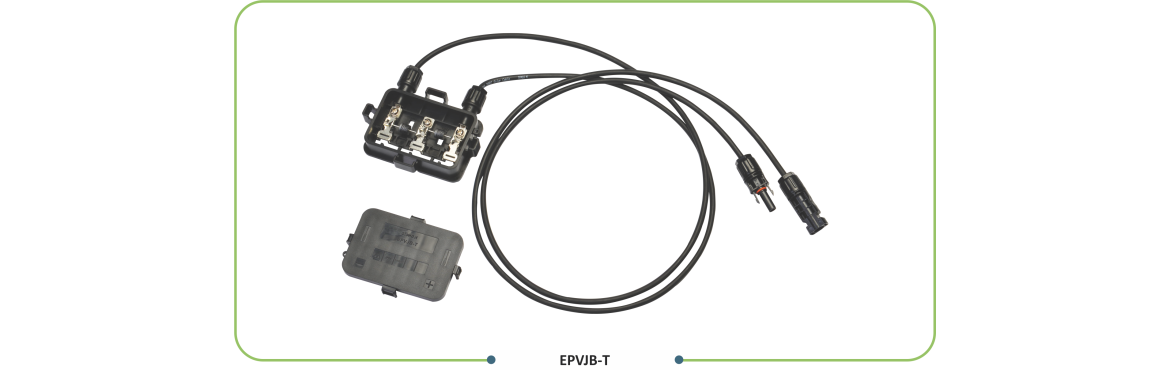

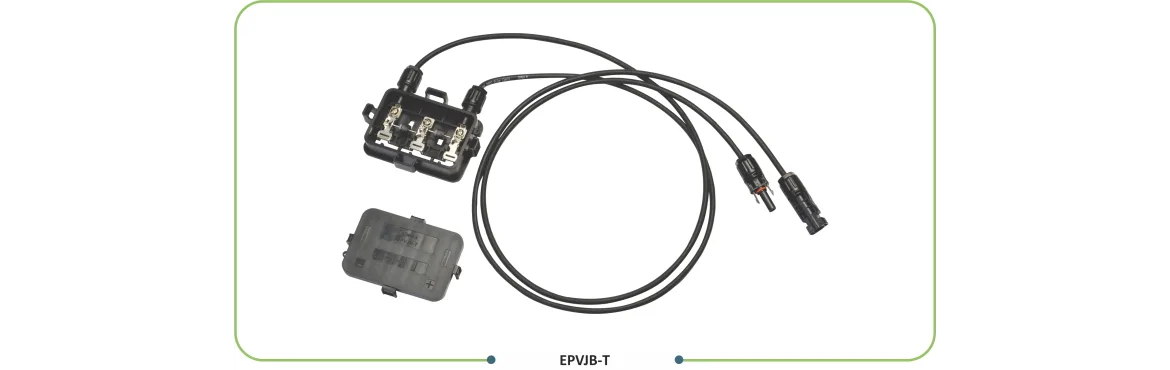

elmex PV Solar 3 - Rail Junction Box EPVJB-T is suitable for electrical connection from PV Crystalline module as a solution for easy and reliable interconnection from PV module to DC/AC converters. It has simple and cost effective assembly designed with snap fit locking arrangement with IP 65 protection requirement for PV industry. The Junction Box is provided with two cables each of 1 meter length, with elmex make straight male and female EMPV4 / EMPV4N connectors for simple on-site wiring.
|
Description |
Specifications |
|
Rated Voltage |
1000V DC |
|
Rated Current |
10A |
|
Degree of Protection |
IP 65 |
|
Type of Terminal |
Soldering |
|
Number of Diodes |
2 |
|
Diode Rating |
10A / 15A* |
|
Contact Material |
Copper with Tin Plating |
|
Ambient Temperature |
-40° C to +85° C |
|
Application |
150W to 250W |
|
Connector |
'elmex' Straight Connectors EMPV4 / EMPV4N |
|
Locking System |
Snap In |
*15 A Diode is Schottky Diode
