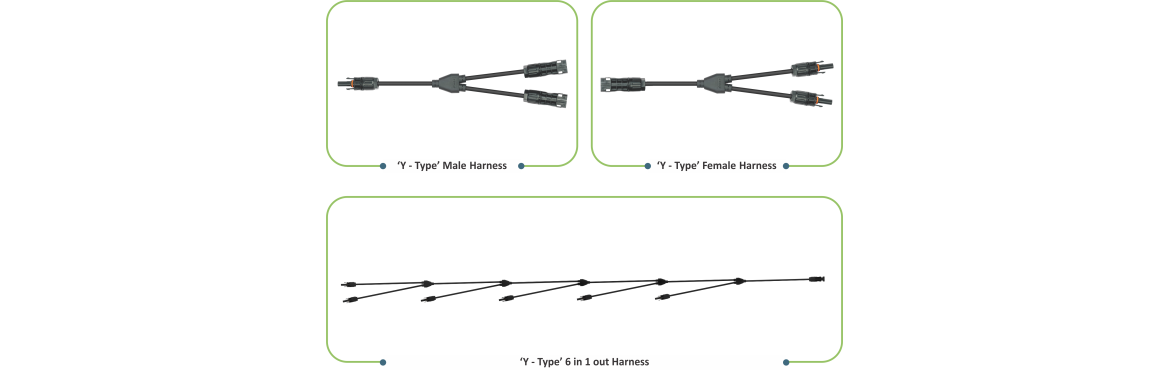

elmex PV Solar Over Moulded Wire Harnesses solutions are suitable for photovoltaic applications, having multiple input & output with plug & socket design suitable for 2.5, 4.0, 6.0 mm² size cables. They are constructed using fame retardant engineering thermoplastic elastomer suitable for exposure to UV rays and for application in PV power generation system. The over-molded wire harnesses are customized solutions and can be configured using straight connectors or inline fuse connectors with different cable sizes of 2.5, 4.0 & 6.0 mm².
|
Description |
Specifications |
|
Rated Voltage |
1000V DC / 1500V DC |
|
Rated Current |
30 A |
|
RMS Test Voltage |
6 kV (1000 V) / 8kV (1500 V) |
|
Contact Material |
Copper with Tin Plating |
|
Degree of Protection |
IP 68 |
|
Pollution Degree |
III |
|
Rated Conductor Size |
2.5 mm²/ 4.0 mm²/ 6.0 mm² |
|
Locking System |
Snap In Locking Type |
Note : (1) 'elmex' Wire Harness solutions are customized, based on cable size , length & type of connectors.
(2) Connectors when mated , need a tool to open in accordance with NEC 2014.
