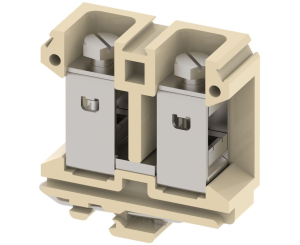

elmex "C" series (TS32 mm) DIN Rail Mounted Feed Through Terminals in Melamine offers the complete range suitable for all control and power applications. Feed-through terminal blocks are characterized by two terminal points and a compact design, These melamine terminal blocks are designed especially for high-temperature applications, The proven screw-clamp design offers high contact force and is easy to use. The Large cross-section range of the feed-through terminal blocks allows universal use in every application, The range covers terminals for conductor sizes from 0.5 sq mm to 185 mm.
Enquire Now

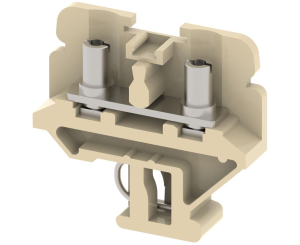

Vibrations adversely affect terminal connection, causing the loosening of conductors and consequent overheating of terminal blocks. elmex Terminal Blocks are therefore designed to be inherently resistant to vibrations in normal applications. elmex Standard Screw Clamp design, with compression springs, provided under the clamp, offers a reliable solution for high-vibration applications of Terminal Blocks. These are called "SPRING LOADED" terminal blocks. For inserting the conductor, clamping screws should be unscrewed and pressed, which results in pushing down the contact clamp against spring action and creates space for conductor insertion below the current bar. When the screw is tightened with specified tightening torque, the clamping part moves to cause gripping of the conductor with the current bar, as with the normal clamping process, but in the case of spring-loaded design, the conductor is gripped with additional clamping force exerted by the compression spring from below the clamping part.
Enquire Now

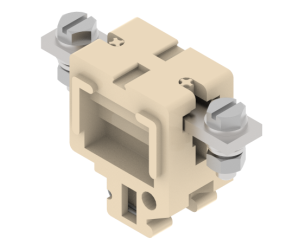

elmex "C" series (TS32 mm) DIN Rail Mounted Stud ot Bolt type Terminals in Melamine housing are specially developed for termination using Ring / Fork type lugs and provided a very relaible connection against vibration. These terminal blocks are available in two types - Screwdriver operated , Nut driver operated. The range covers terminals for conductor sizes from 0.5 sqmm to 35 sqmm. All the metal parts used are of brass (Copper alloy ) Which make them suitable for use in application like switchboards, switch yards , Marshalling racks etc.
Enquire Now
elmex offers a wide variety of Power / Bus-Bar / High Current Terminals suitable for all types of cables (solid, stranded, with fork type and ring type lugs) in Melamine Housing. Power (Bus-Bar) Type terminal range covers the cross section from 35 sqmm to 120 sqmm and High current upto 300 A. Protection and Safety For increased creepage distance and safety against accidental contact, partition plates/barrier plates are assembled along with the terminal block. Protective transparent covers are assembled at the slots provided on the barrier plates. These provisions make the assembly fully safe, while simultaneously offering open design of terminals for connection fork/ring lugged cables
Enquire Now
We at "CHINTAN CORPORATION” are recognized as the foremost trader and supplier a wide range of Elmex Terminals, Hex Cable lugs and Glands, Shavison smps and relay cards, Kosmos make Panel Accessories, Solar Product, Surelock make cable ties. The offered products are widely used in various industries for Tools.
