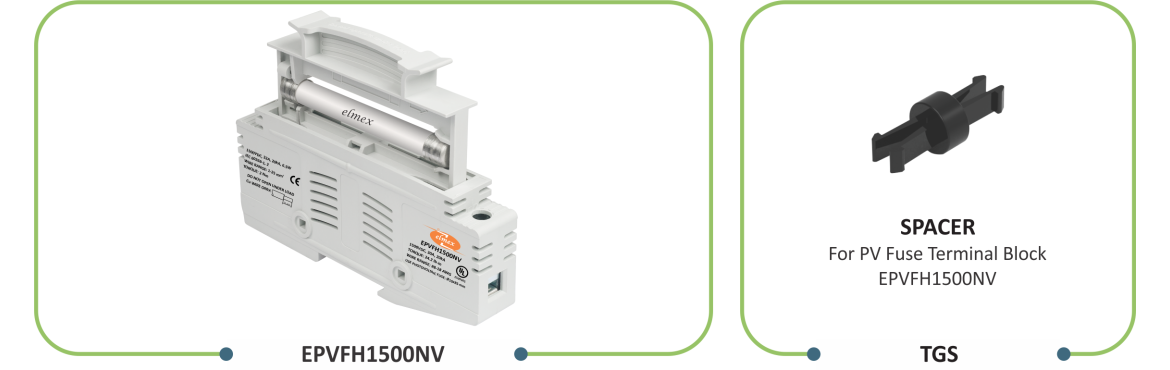

elmex PV Solar Fuse Terminal Block Fuse Terminal Block 1500V is suitable for photovoltaic application and applicable for string protection. It is designed for use in connection for photovoltaic devices like DC and AC Distribution Box, Inverter , String Combiner Box, etc. which is used for rooftop or ground mounted projects. The fuse terminal block is constructed as per standard IEC 60269-1 and are suitable for cylindrical gPV fuse size ø 10 X 85 mm. Fuse Terminal blocks can be mounted along with spacer. The Spacer creates gap between adjacent fuse holders and this gap allows circulation thereby reducing operating temperature.
|
Description |
Specifications |
|
Rated Voltage |
1500V DC |
|
Rated Current |
30 A |
|
Degree of Protection |
IP 20 |
|
Rated Cross Section |
8 - 18 AWG |
|
Rated Torque |
24.2 lb-in |
|
Dimensions ( W x H x P ) |
130 x 68.4 x 19.5 mm |
|
Mounting Channel |
CHK / CHKS |
|
Standard Box Packing |
6 Nos. |
Note: It is recommended to use gPV (cylindrical) fuse of ø 10 X 85 mm dimension.

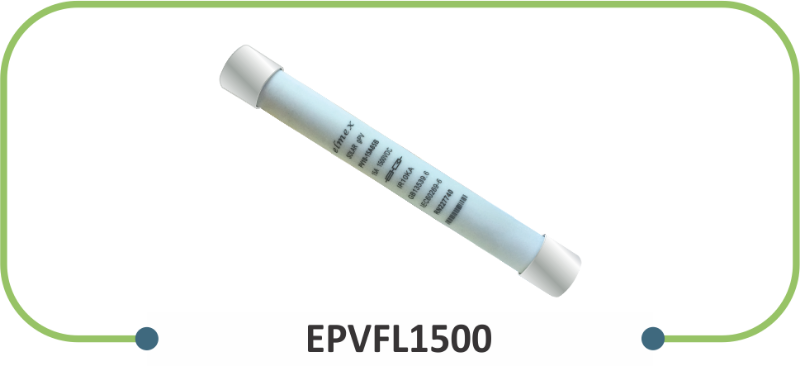

elmex gPV Fuse Link suitable for 1500V DC photovoltaic applications.
|
Description |
Specification |
|
Rated Voltage |
1500V DC |
|
Rated Current |
Upto 30A |
|
Type |
gPV (Cylindrical) |
|
Test Voltage |
ø 10 X 85 mm |
|
Testing Standard |
IEC 60269-6 |
