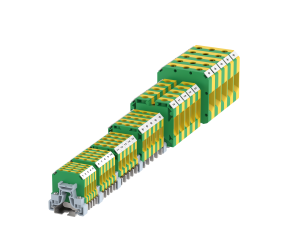

elmex Earth Terminal Blocks replace conventional bus-bar used for earthing. The structural design is such that the mounting rail not only has a mechanical but also an electrical function. Earthing is established through the foot which clamps directly onto the rail. Earthing Terminal Blocks are mounted on the same rail along with other terminal blocks. The conducting part is Brass with Nickel-Tin plating, providing a low-resistance path. Moreover, the housing is a Green-Yellow combination in accordance with the universally accepted color code for earthing.
Enquire Now

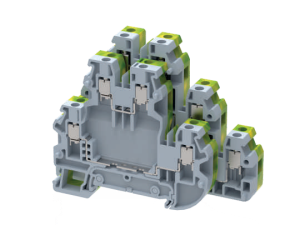

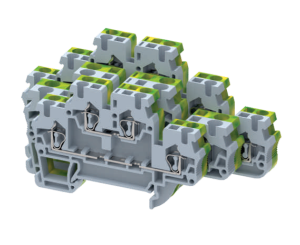

elmex three level terminal blocks can be used for high-density wiring and for wiring special equipment such as proximity sensors. DUSD4 has a special link attached to the middle and lower level to facilitate the interconnection between adjacent terminal blocks, DU3D4 and DUSD4. The negative and positive circuits can be easily bridged together and then connected to a power source with DU3D4 terminal.
Enquire Now

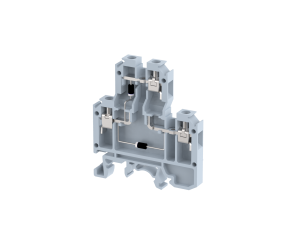

elmex component housing terminal blocks with a screw clamp connection technology are specially designed for use of a Diode and other electrical components for various applications, Other safety requirements are also taken into account, They find application in PLC, DCS, Machine tools, and other Control & Automation panels. Diode terminal blocks with blocking diodes are used to protect components against reverse current resistance. Component terminal blocks with resistors are used for current and voltage limitation and distribution.
Enquire Now
elmex component housing terminal blocks with a screw clamp connection technology are specially designed for use of a Diode and other electrical components for various applications, Other safety requirements are also taken into account, They find application in PLC, DCS, Machine tools, and other Control & Automation panels. Diode terminal blocks with blocking diodes are used to protect components against reverse current resistance. Component terminal blocks with resistors are used for current and voltage limitation and distribution.
Enquire Now

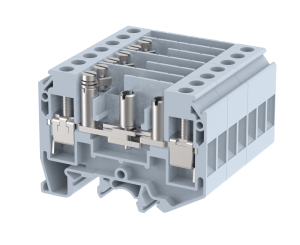

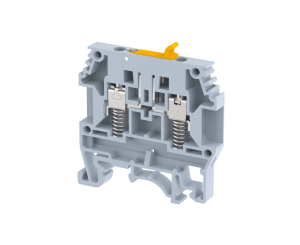

elmex offers a range of Disconnecting Type Terminal Blocks which can be used to disconnect the continuity without actually removing the wires. Certain applications in control and measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. These Terminal Blocks mainly find applications in secondary Circuit of CT, Relay Panels, etc. A clearly visible Sliding Link is used for disconnection. The link can be moved to one side by unscrewing. The tightening of the screw prevents it from sliding back. The 4 mm diameter nut assembly can be used as test sockets.
Enquire Now
Certain Applications in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting-type terminal blocks that can be used to disconnect the continuity without actually removing the wires. These Terminal Blocks find special applications in the control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty conditions. The copper link and brass contacts are tin-plated offering low contact resistance.
Enquire Now

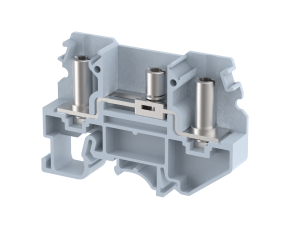

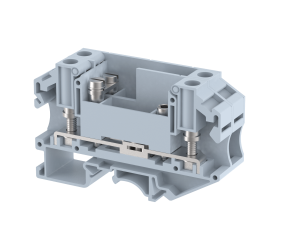

elmex disconnect terminal blocks with a bolt connection technology particularly designed for testing and measurements technology, The changeover between two switching states is enabled by the screwdriver-operated sliding link. These terminal blocks with spring support cause loosing of conductors and consequent heating of terminal blocks. These terminal blocks finds applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks.
Enquire Now
Certain Applications in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting-type terminal blocks that can be used to disconnect the continuity without actually removing the wires. These Terminal Blocks find special application in the control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty conditions. The copper link and brass contacts are tin-plated offering low contact resistance.
Enquire Now

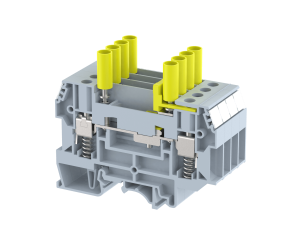

elmex disconnect terminal blocks with a bolt connection technology particularly designed for testing and measurements technology, The changeover between two switching states is enabled by the screwdriver-operated sliding link. These terminal blocks mainly find applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks. A bolt connection provides compact connection with ring and fork-type cable lugs.
Enquire Now
elmex disconnect terminal blocks with a bolt connection technology particularly designed for testing and measurements technology, The changeover between two switching states is enabled by the screwdriver-operated sliding link. These terminal blocks mainly find applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks. A bolt connection provides compact connection with ring and fork-type cable lugs.
Enquire Now

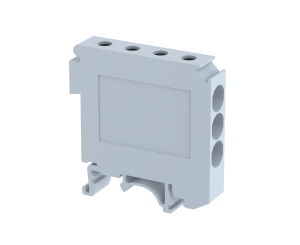

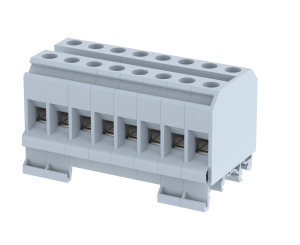

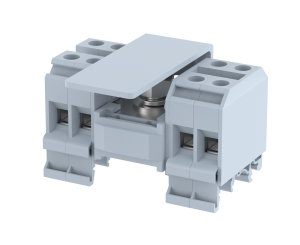

elmex distribution blocks are an Innovative Engineering Solution to satisfy customers' needs. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single inputs and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity. Two varieties of Distribution Blocks are available - One is suitable for the identical size of conductors as input/output and Another for high conductor size as input and lower as output. FDBK extends the same advantages and features of DBK Distribution Blocks. These Blocks are suitable for control applications.
Enquire Now
elmex distribution blocks are an Innovative Engineering Solution to satisfy customers' needs. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single inputs and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity. Two varieties of Distribution Blocks are available - One is suitable for the identical size of conductors as input/output and Another for high conductor size as input and lower as output. FDBK extends the same advantages and features of DBK Distribution Blocks. These Blocks are suitable for control applications.
Enquire Now
elmex distribution blocks are an Innovative Engineering Solution to satisfy customers' needs. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single input and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity. Two varieties of Distribution Blocks are available - One is suitable for identical size of conductors as input/output and Another for high conductor size as input and lower as output. FDBK extends the same advantages and features of DBK Distribution Blocks. These Blocks are suitable for control applications.
Enquire Now

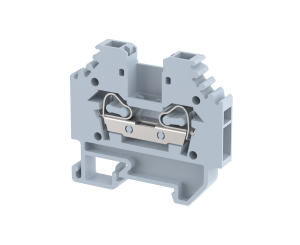

elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
Enquire Now
elmex Lighting Pole Terminals offer safe and reliable termination solutions for Street Light Wiring requirements. The special construction of Lighting Pole Terminals ensures minimum junctions unlike contemporary Terminal Blocks, thus making them suitable for long distance wiring without much heat generation and minimum voltage drop A solid Copper Alloy Piece functions as Currently Carrying part and Wire Clamping unit. Lighting Pole Terminals come in two varieties - one with two input and one output, and the other with three inputs and one output. The first variety is suitable for continuous wiring across the length of streets. The second variety offers a facility for taking a 'T' junction as an additional feature. The elmex range includes Lighting Pole Terminals suitable for 25 sq mm and 35 sq mm wires. elmex offers Allen Key operated or Screw Driver operated terminals
Enquire Now

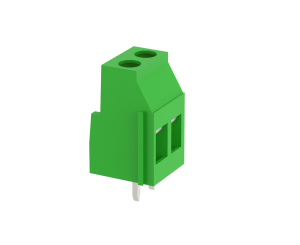

elmex offers a PCB terminal block with Screw Clamp Technology enabling easy and safe transmission of signal, data, and power to the PCB. The Screw connection is maintenance-free and, with a multi-conductor connection, enables a high level of Flexibility and a High load-carrying capacity. The main features of these PCB connectors are safe to discharge of interface signals , Low transfer impedance with a large surface shield.
Enquire Now
elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.
Enquire Now
elmex Multi Level Terminals are the perfect solution where space is a constraint and high density wiring is needed. The compact design of these Terminals with 6 mm thickness allows double wiring density and reducing the total number of terminal blocks to half. Elmex three level terminal blocks can be used for high-density wiring and for wiring special equipment such as proximity sensors. elmex 8-level terminal block type DS8L offers very good wiring density particularly for marshaling applications where large number of wires are to be terminated and space is a constraint. Screw less multi-level terminal block wire termination is by spring clamp mechanism. Spring clamps are made using special grade authenticate stainless steel material having very good spring properties, high fatigue strength, high tensile strength and better resistance to corrosion effects.
Enquire Now

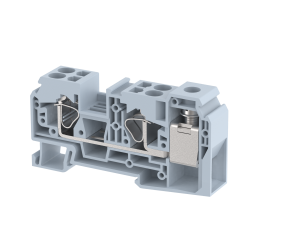

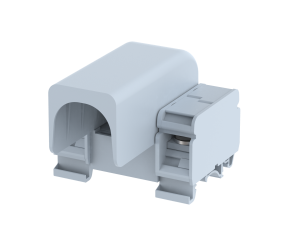

elmex Hybrid distribution blocks are an Innovative Engineering Solution to satisfy customer's needs. This hybrid terminal block is used to subdivide a 35 sq.mm feed line into multiple connections. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single input and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity. These Blocks are suitable for control applications
Enquire Now
elmex offers plug-in terminal blocks with a special design of hybrid terminal blocks, These terminal blocks consist of a terminal block and the corresponding plug connectors, The plug connectors are available in up to 8 positions. These terminal blocks provide the perfect solution inside the control cabinet .
Enquire Now

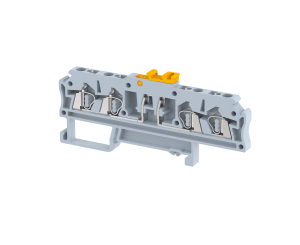

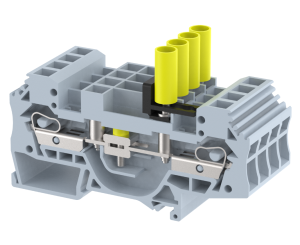

elmex disconnect terminal blocks with a Spring clamp connection technology is specially designed for certain applications in control and measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. These terminal blocks mainly find applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks also the spring cage provides a tight fit connection against vibration sensitive application.
Enquire Now
Certain Applications in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting-type terminal blocks which can be used to disconnect the continuity without actually removing the wires. These Terminal Blocks finds special application in control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty conditions. The copper link and brass contacts are tin plated offering low contact resistance.
Enquire Now

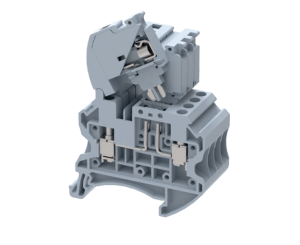

Applications in Control & Automation require fuse protection facility. elmex offers Terminal Blocks DCF4 with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm size. An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of D1=24 VDC, D2=48 VDC, D3=110 VDC, D4=220 VDC, D5=12 VDC, A1=110 VAC and A2=240 VAC
Enquire Now
elmex Earth Terminal Blocks replace conventional bus-bar used for earthing. The structural design is such that the mounting rail not only has a mechanical but also an electrical function. Earthing is established through the foot which clamps directly onto the rail. Earthing Terminal Blocks are mounted on the same rail along with other terminal blocks. The conducting part is Brass with Nickel-Tin plating, providing a low-resistance path. Moreover, the housing is a Green-Yellow combination in accordance with the universally accepted color code for earthing.
Enquire Now
elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
Enquire Now

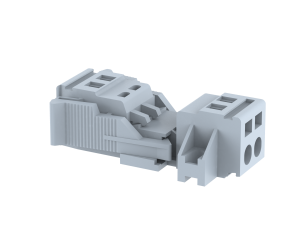

elmex introduces Plug & Socket type terminal DPSC 5.08 & DPSC 7.5, offering innovative solution for wiring and interconnecting electrical circuits. These terminal blocks are provided with integrated snap fit locking arrangement and are available with fixing flanges for surface/panel mount applications. Terminal blocks with flange are also available for 'wire to wire', 'wire to board' termination of wiring leads The draw-out feature of DPSC Series makes it convenient choice for panels with modular constructions wherein separately wired modules or panels cab be connected with one another once they are completely wired internally. Such a modular design facilitates quick disconnection for test and maintenance.
Enquire Now
elmex disconnect terminal blocks with a bolt connection technology particularly designed for testing and measurements technology, The changeover between two switching states is enabled by the screwdriver-operated sliding link. These terminal blocks mainly find applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks. A bolt connection provides compact connection with ring and fork-type cable lugs.
Enquire Now

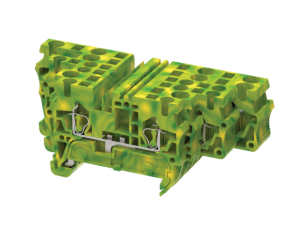

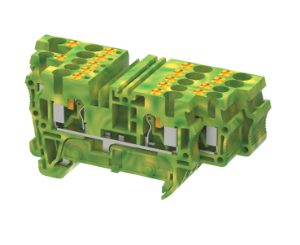

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools, This Earth terminal blocks are coming with the highly conductive metallic foot offers a minimal contact resistance and ideal for the ground application, The special contact spring allows lower minimal insertion force. Other features include the high contact quality and high conductor pull-out force, provision for interconnection between terminal blocks with different functions, and Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now

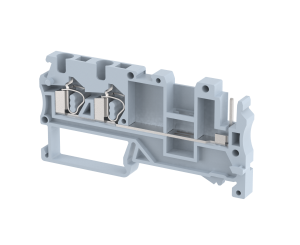

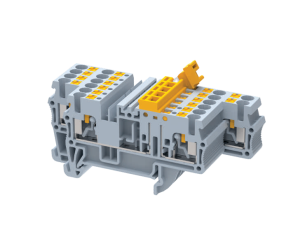

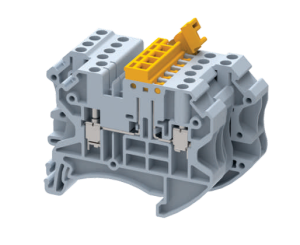

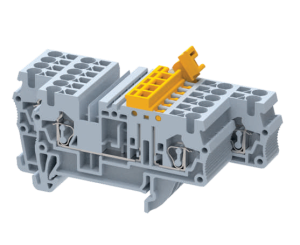

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools. This knife disconnects terminal blocks are particularly designed for testing and measurement technology. The two states of Switching can be achieved by a screwdriver-operated knife, The disconnect knife latch into clearly recognizable end positions so that they are not actuated acccidnently, Other features include the high contact quality and high conductor pull-out force, provision for interconnection between terminal blocks with different functions, and Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now

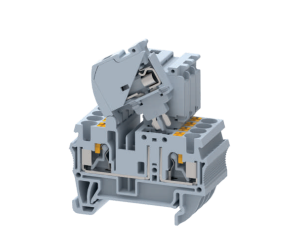

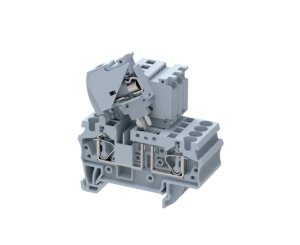

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools, With this fuse terminal blocks you can accommodate fuses in different designs and with the different rated current. The LED Status indicator gives quick identification of faulty fuses and fuse holders regardless of the current direction. Other features include the high contact quality and high conductor pull-out force, provision for interconnection between terminal blocks with different functions, and Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now
