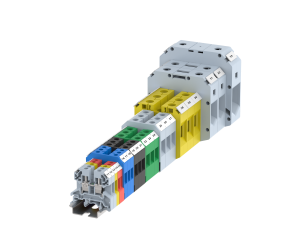

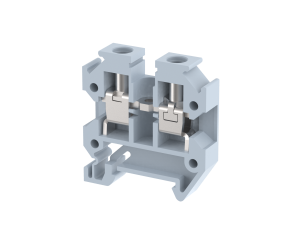

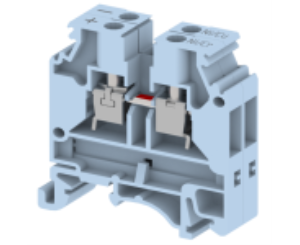

elmex Universal (TS35mm & TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven screw clamp & spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 95 sq mm for screw clamp and 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides a slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.
Enquire Now

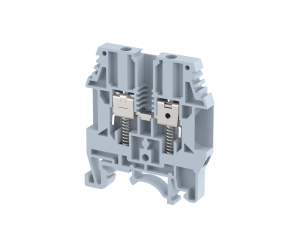

Vibrations adversely affect terminal connection, causing loosening of conductors and consequent overheating of terminal blocks. elmex Terminal Blocks are therefore designed to be inherently resistant to vibrations in normal applications. However, high vibrations can arise due to vibration-affected installation sites, such as installations in and around mines, proximity to a heavy machine shop, forging/ die casting shops, cement/steel plant machinery, textile machines, and so on. Special designs for high-vibration applications are also preferred in some Power Projects, Power Distribution Centers, Motor Control Centers, and Relay Control Panels. depending on the proximity of vibration-generating equipment. elmex Standard Screw Clamp design, with compression springs, provided under the clamp offers a reliable solution for high-vibration applications of Terminal Blocks. These are called "SPRING LOADED" terminal blocks. For inserting the conductor, clamping screws should be unscrewed and pressed, which results in pushing down the contact clamp against spring action and creates space for conductor insertion below the current bar. When the screw is tightened with specified tightening torque, the clamping part moves to cause gripping of the conductor with the current bar, as with the normal clamping process, but in the case of spring-loaded design, the conductor is gripped with additional clamping force exerted by the compression spring from below the clamping part.
Enquire Now

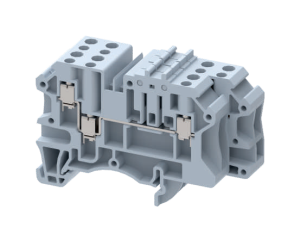

elmex Universal (TS35mm & TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven screw clamp & spring clamp design offers high contact force and is easy to use. This Multi conductor Feed through terminal blocks with three and four connections that all are routed via the same current bar, This allows you to connect up to four conductors with individual wiring per terminal block. This compact design allows you fewer terminal blocks with more supply lines.
Enquire Now

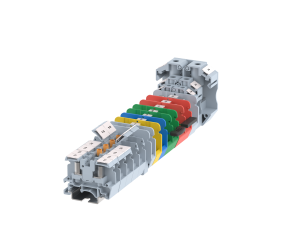

While standard Screw Clamp or Spring Clamp terminal blocks are designed for direct connection of conductors, (solid, stranded, flexible), simply after stripping the insulation, there are other wiring practices and applications where conductors have to be provided with ring type or fork types lugs, for more secured connections. elmex has developed a whole range of Stud type terminal blocks with connection possibilities from 0.5 sq mm to 16 sq mm, which accept ring/fork type lugged cables. These are available in both Polyamide 6.6 and in Melamine Housings. For Stud Type terminals KAT, studs have special long nuts, with a slot at the top, so that the nuts can be operated using screwdrivers. This facility of using a screwdriver is very useful where space constraints may not allow the use of a standard spanner for tightening. These nuts also serve as test sockets, in which pins of test wires can be plugged. These Stud Type terminals are used with protective transparent covers, which enclose the live parts, as protection against accidental contact. Such covers can be provided from a stack of stud terminals. All the metal parts used are of brass (copper alloy) which makes them suitable for use in applications like switchboards, switch yards, marshaling racks etc., generally exposed to environmental extremities.
Enquire Now

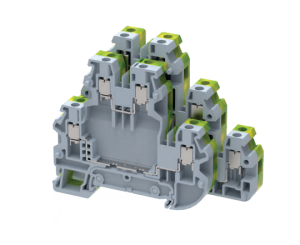

elmex three level terminal blocks can be used for high-density wiring and for wiring special equipment such as proximity sensors. DUSD4 has a special link attached to the middle and lower level to facilitate the interconnection between adjacent terminal blocks, DU3D4 and DUSD4. The negative and positive circuits can be easily bridged together and then connected to a power source with DU3D4 terminal.
Enquire Now

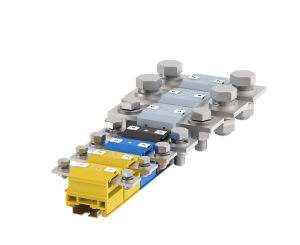

elmex offers a wide variety of Power / Bus-Bar / High Current Terminals suitable for all types of cables (solid, stranded, with fork type and ring type lugs) both in Polyamide 66 and Melamine Housing. Power (Bus-Bar) Type terminal range covers DPBB50, 70 and 120, rated upto 269 Amps, for fork/ring type lugs, bolted to the current-bar of the terminal block. Protection and Safety For increased creepage distance and safety against accidental contact, partition plates / barrier plates are assembled along with the terminal block. Protective transparent covers are assembled at the slots provided on the barrier plates. These provisions make the assembly fully safe, while simultaneously offering open design of terminals for connection fork/ring lugged cables.elmex offers a new design type SPT in which hinged covers are provided over the cable termination points. Cables with fork or ring lugs are connected by nuts to the terminal after lifting hinged covers which are closed after the connection is completed. These are Finger-safe Terminals by design, not requiring covers or barrier plates, for safety or protection. Their housing is Polyamide 66 and currently available with 35 sq mm and 70 sq mm connection capacity, and with rated currents of 140 Amps and 192 Amps respectively. Hinged covers are available in various colors as required optionally.
Enquire Now
"A thermocouple is a bi-metallic junction ie a junction between two different metals that produces voltage related to temperature difference. Thermocouples are classified depending on different alloys used for different temperature ranges. Some of the thermocouple types are as ; 'K' Type : Chromel (Ni/Cr) + Alumel (Ni/Al) 'J' Type : Iron (Fe) + Constantan (Cu/Ni) 'J' Type : Iron (Fe) + Constantan (Cu/Ni) 'E' Type : Chromel (Ni/Cr) + Constantan (Cu/Ni) For temperature measuring requirement, wherein measuring point is far from the measuring instrument, intermediate connections have to be made for extending the path. For such application conventional type terminal blocks cannot be used to create the required extension, since current carrying parts are made of either copper or copper alloy which are different than the thermocouple metals or alloys as mentioned above. to overcome this problem thermocouple terminal blocks are employed. Thermocouple terminal blocks are constructed using the same type of metal / alloy as that of thermocouple intended for measuring temperature. Thermocouple terminal blocks are used in pairs."
Enquire Now

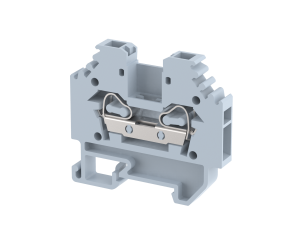

elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
Enquire Now

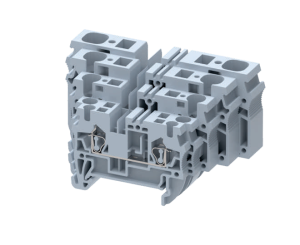

elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.
Enquire Now

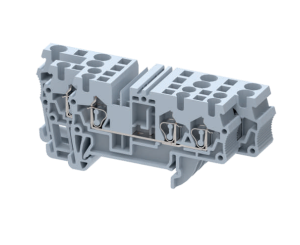

elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver. This Multi conductor Feed through terminal blocks with three and four connection that all are routed via the same current bar , This allows you to connect up to four conductors with individual wiring per terminal block.
Enquire Now

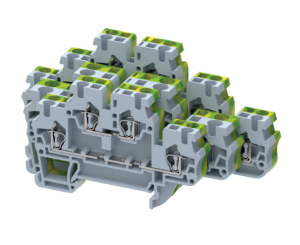

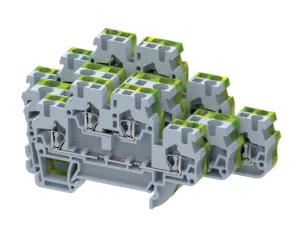

elmex Multi Level Terminals are the perfect solution where space is a constraint and high density wiring is needed. The compact design of these Terminals with 6 mm thickness allows double wiring density and reducing the total number of terminal blocks to half. Elmex three level terminal blocks can be used for high-density wiring and for wiring special equipment such as proximity sensors. elmex 8-level terminal block type DS8L offers very good wiring density particularly for marshaling applications where large number of wires are to be terminated and space is a constraint. Screw less multi-level terminal block wire termination is by spring clamp mechanism. Spring clamps are made using special grade authenticate stainless steel material having very good spring properties, high fatigue strength, high tensile strength and better resistance to corrosion effects.
Enquire Now
elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
Enquire Now

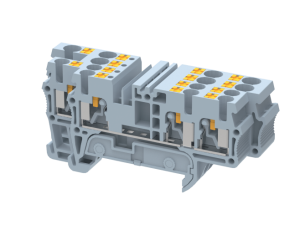

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools, This Feed through terminal blocks offers tool-free wiring with vibration resistance connection, The special contact spring allows lower minimal insertion force. Other features include the high contact quality and high conductor pull-out force , provision for interconnection between terminal blocks with different function , Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now

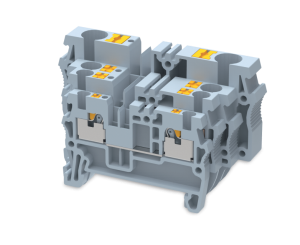

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools, This Multi conductor Feed through terminal blocks with three and four connection that all are routed via the same current bar , This allows you to connect up to four conductors with individual wiring per terminal block. Other features include the high contact quality and high conductor pull-out force, provision for interconnection between terminal blocks with different functions, and Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now

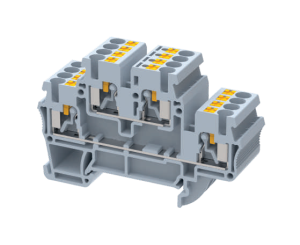

elmex represents the next generation "Push-in" range as one of the best offerings in the market, With push-in connection technology, You can connect conductors from 0.2 mm² easily - both directly without tools. These multi-level terminal blocks have two or more levels, Each level carries its own potential. The multi-level terminal block enables even higher wiring density and greater flexibility than the multi-conductor terminal block. Other features include the high contact quality and high conductor pull-out force, provision for interconnection between terminal blocks with different functions, and Possibilities of interconnection between terminal blocks having different rated conductor sizes.
Enquire Now
